Specifications
1.L-Band satellite optical transmitter2.Standard type
3.1310nm dual fibers
4.950~2600MHz
5.1310nm DFB laser

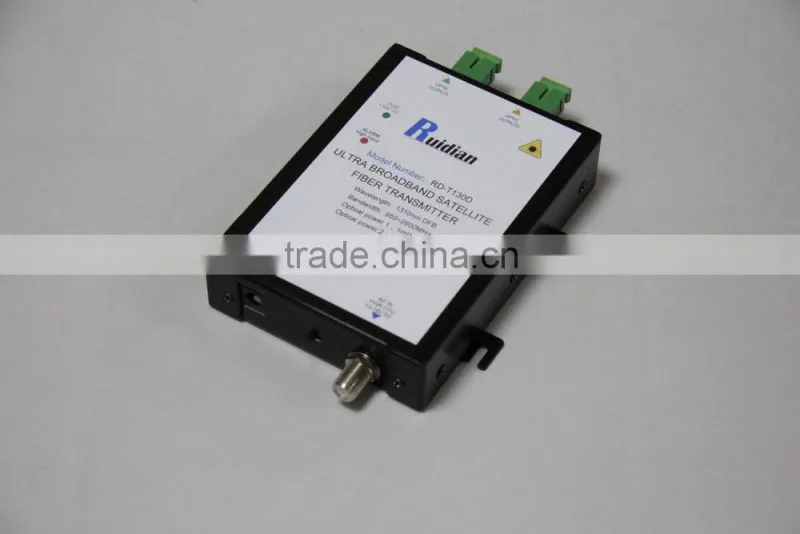

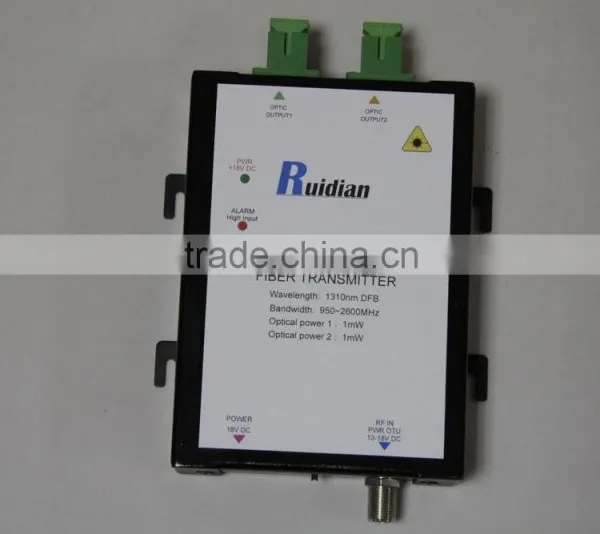

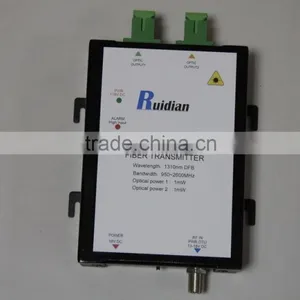

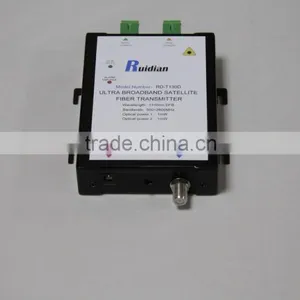

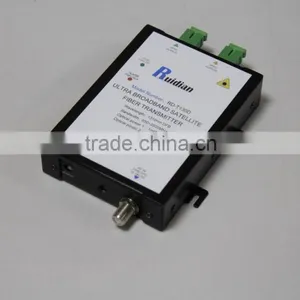

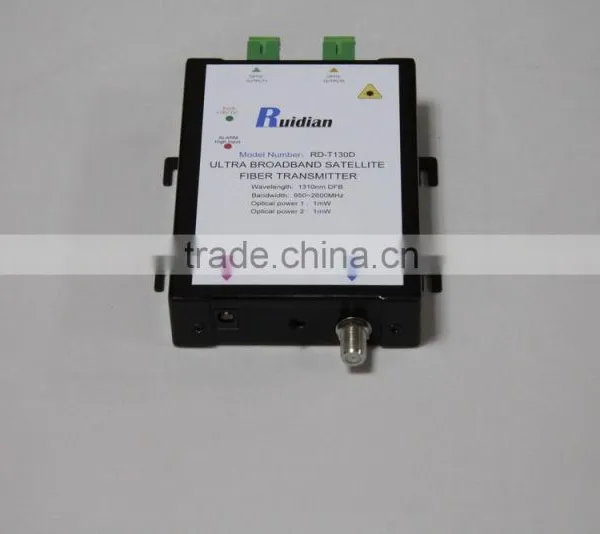

L-Band satellite optical transmitter 1310nmDual Fibers
The RD-130D L-Band Satellite Transport System provides an economical solution for transporting digital signals for numerous satellite distribution, and distribution of digital broadcast systems (DBS).The system utilizes a cost-effective coaxial cable configuration to distribute the RF signals from the dish to the transmitter and from the receiver to the headed. The single-mode optical fiber between the RD-13 0D transmitter and receiver allows transmission distances to 10 Km at 131 0nm. Furthermore, using LNB power from the transmitter decreases the need for additional equipment at the dish site, RF alarm and indicator LEDS allow for a quick assessment of the link ’ s operational status. The RD-130D L-Band Satellite Transport System, whether used in an antenna remoting application of in a satellite distribution role, provide for transmission of the entire DBS spectrum in
a simplified, flexible installation environment at one of the lowest costs found today ’s market.
RF Typical Performance
Parameter |
Units |
Min Typical Max Supplement |
|||||
Frequency |
MHz |
950 |
2600 |
||||
Output Level |
dBµv |
55 |
78 |
||||
Flatness |
dB |
±1.75 |
950~2600MHz |
||||
Port |
1 |
||||||
RF port |
F-female |
||||||
Return loss |
dB |
-13 |
|||||
Output Impedance |
Ω |
75 |
|||||
CNR |
dB |
40 |
|||||
IMD |
dB |
40 |
|||||
Feeding LNB |
V |
13/18VDC |
|||||
Optical Typical Performance |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Wavelength |
nm |
1300 |
1310 |
1320 |
DFB | ||
Return loss |
dB |
≥55 |
|||||
Output optical power |
mW |
0.5 |
1 |
Each port | |||
Optical connector |
SC/APC |
SC/APC or FC/APC |
|||||
General feature |
|||||||
Parameter |
Units |
Min Typical Max Supplement |
|||||
Power supply |
V |
18 |
|||||
Power consume |
mA |
110 |
120 |
130 |
|||
Work temp |
°C |
-20 |
+55 |
||||
Storage temp |
°C |
-40 |
+85 |
||||
Size |
cm |
16*10.5*2.8 |
W×D×H |
||||
Key Features |
High bandwidth 950~2600MHz |
1310nm DFB laser |
Dual-port optical output |
Wall-mounted metal housing |
F-female 75ohm RF Output |
Transmitter signals in excess of 10Km |
Offers LNB+13VDC or +18VDC |
Main application |
Satellite FTTH networks |
|
L-Band fiber distribution networks |
