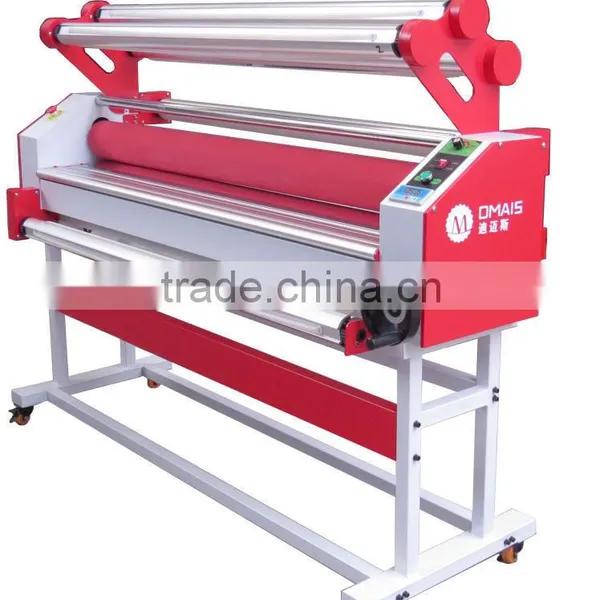

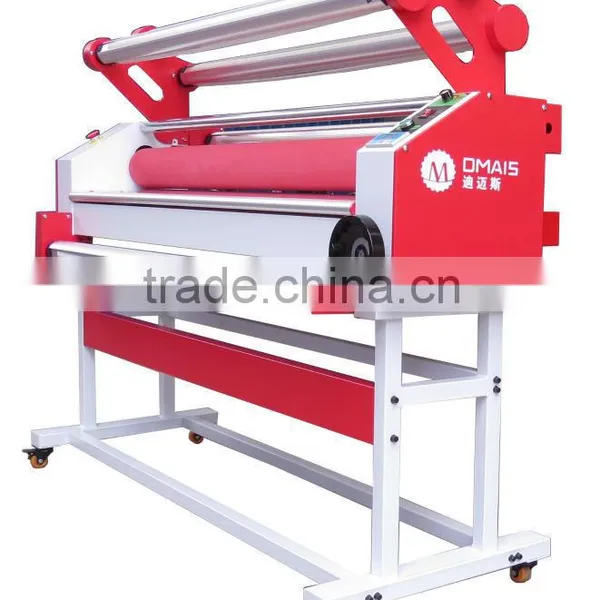

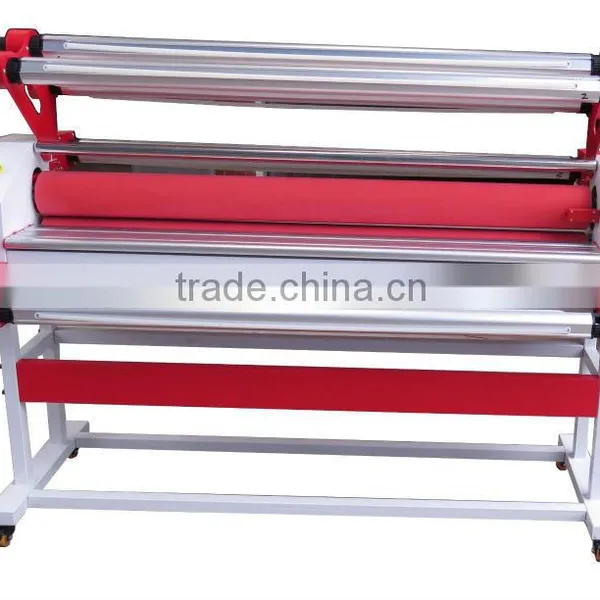

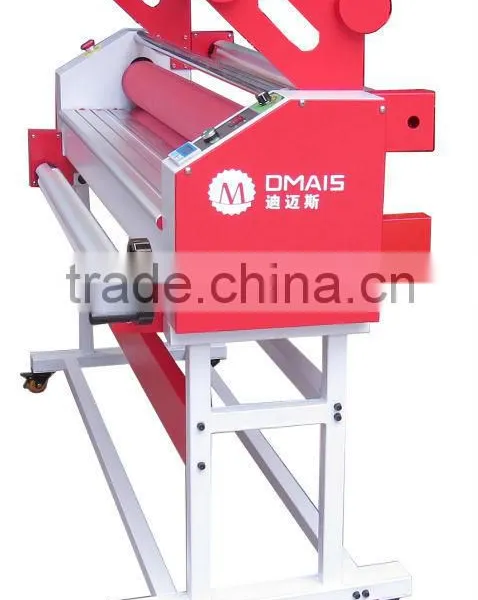

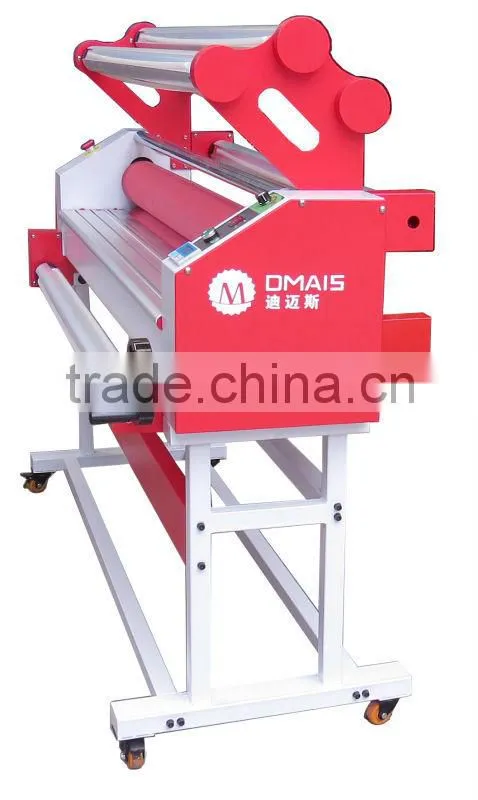

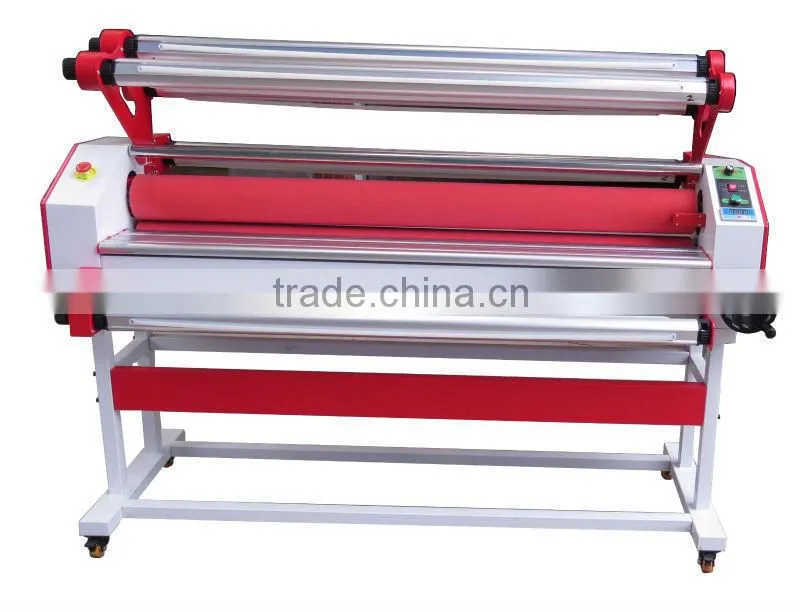

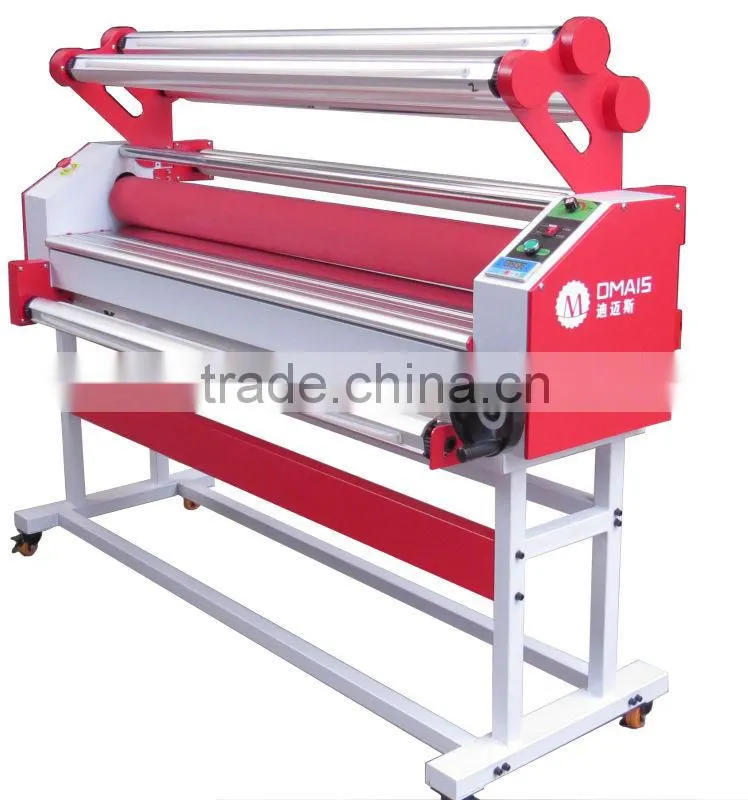

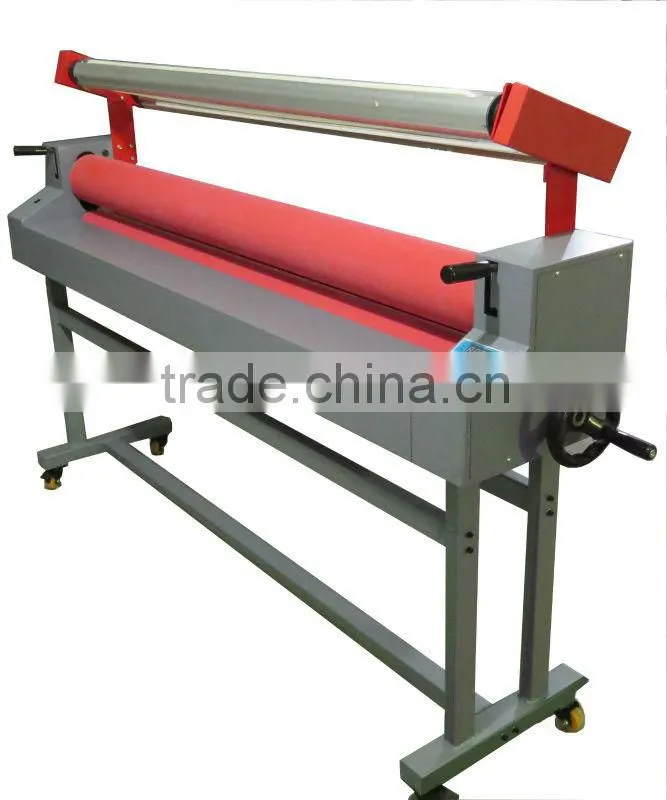

New design film heated roll laminator machine DW3-1600
This laminator specially is used for surface post-processing on Spray painting, graphic printout, photo studio, printing industry, building materials industry, PVC sheet, acrylic, tiles, glass, wooden doors etc. fields. It is developed as a easy to use, energy-saving, low-cost laminator
Laminate the film on the surface of the material. It’s a good protection for the materials and images. So the materials could not be scratched and damaged. When using the cold function, please use the cold film. when using the hot function, please use the hot film.
1. Main Technical parameters
1), Rated voltage: 220V
2), Frequency: 50HZ-60HZ
3), Length of rubber roller: 1600mm
4), Laminating/Coating width: ≤1580mm
5). Laminating/Coating speed: 0.4~3.2m/min
6). Coating temperature: 0°C~60°C
7), Preheating time: 30min
8), Thickness of operating materials: 0.1~35mm
9), Thickness of suitable film: 25~250mic
10), Motor powder: 90W
11), Speed gear control: 10
12), Heating roller elevation height: 40mm
13), Pressure adjustment method: Manual
14), Automatic removing film and rewinding the backing paper device: Motor
15), Gross weight: 170kg
16), Dimensions: 2040*700*680mm
17) Diameter of roller: 130mm
Wide range of application:
Be suitable for Photo album .poster, image-text printing ,Photo image, silk screen printing
X-frame show image.
apply to the cold lamination / hot lamination of the large area of the
PVC board , KT board and also be the protection film of the plates ,glass, section bar ,acrylic ,and wood door etc.

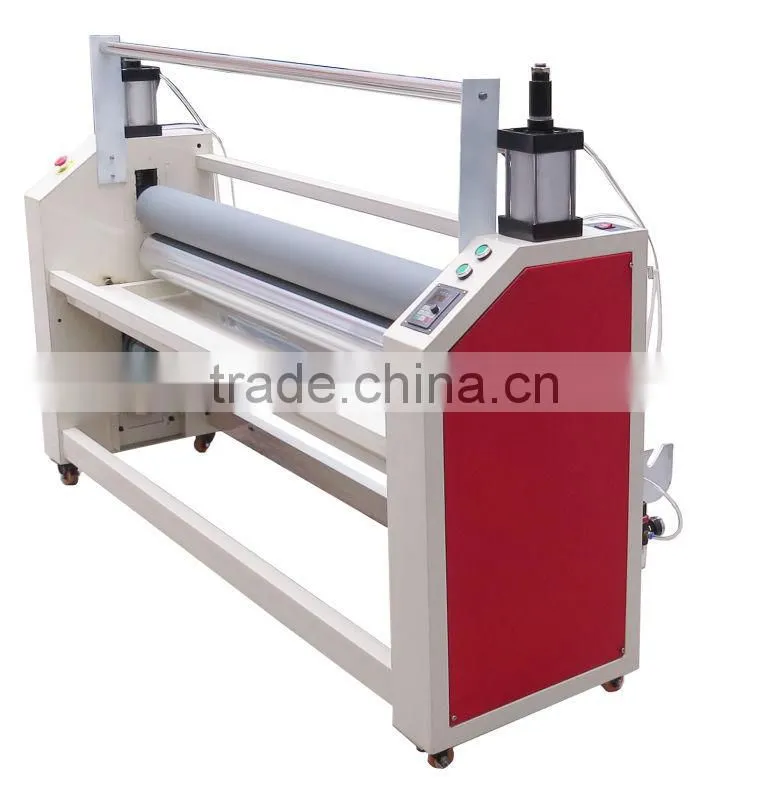

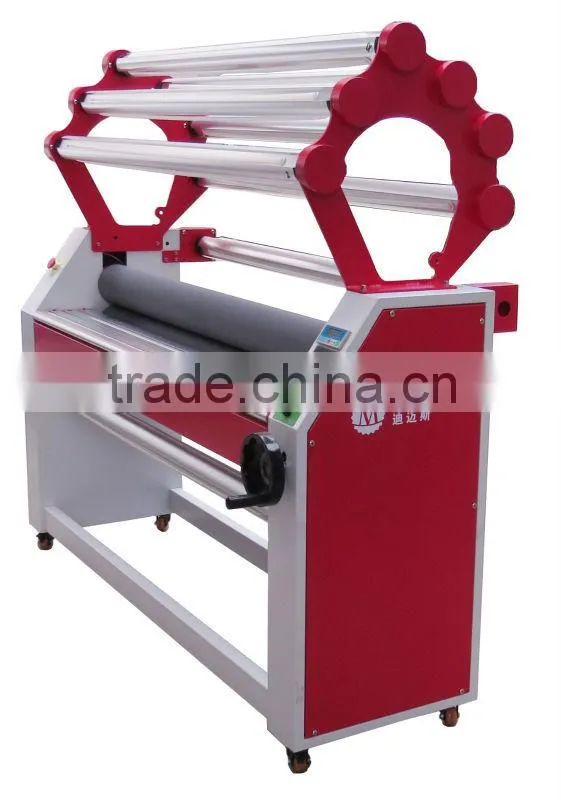

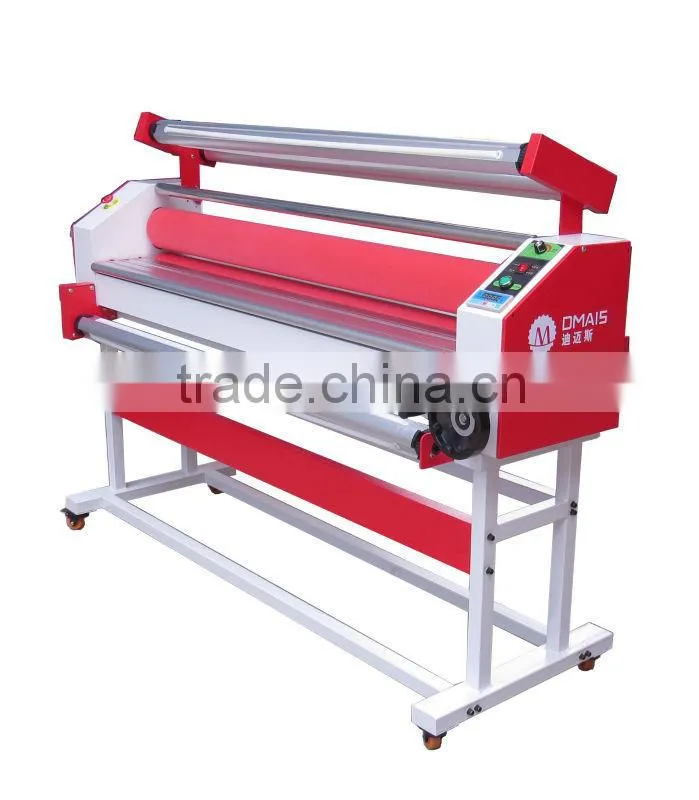

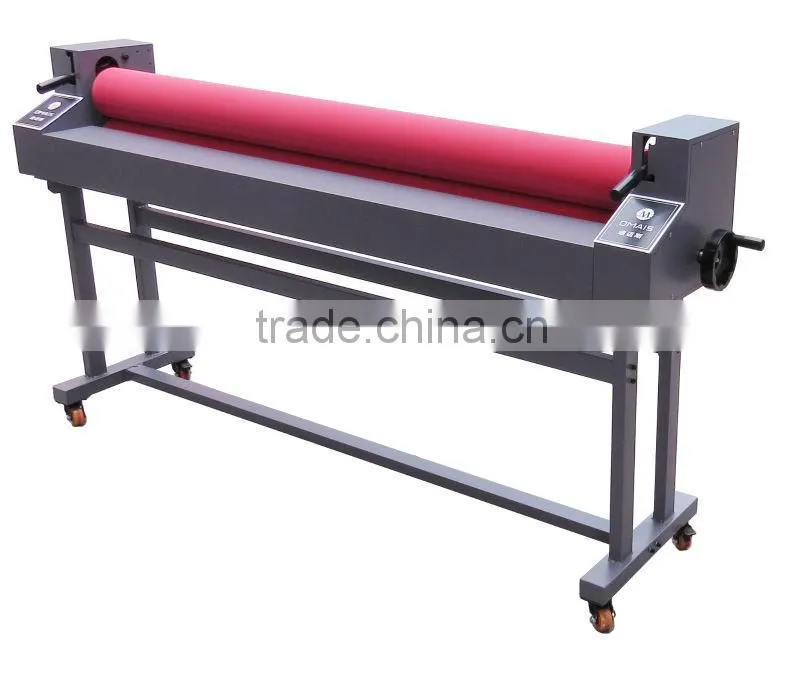

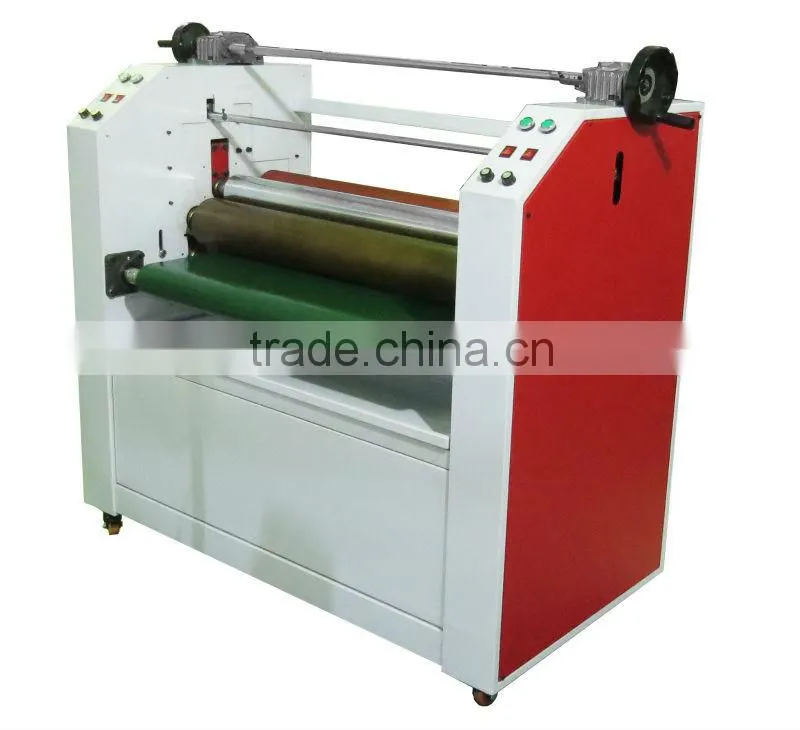

Other kinds of laminators for sale
