Help CenterRear Rack 36v 20ah Lithium Battery for High Power 36v 350-750w Electric Bike Battery
Related Products
-
2000cycles 36v 15ah Lifepo4 Battery for 36v 250-750w Electric Bike Battery, High Power 36v 500w Lifepo4 BatteryUS$ 1 - 50MOQ: 1 Piece -
36v 500w Lithium Electric Bike Battery,Lithium 36V 500W Battery,36V 500W LITHIUM BATTERYUS$ 1 - 50MOQ: 1 Piece
-
HOT SELL 36v 20ah Electric Bike Battery With 36v 20ah Lithium Battery for Electric Pocket Bike Battery 36v 20ahUS$ 1 - 50MOQ: 1 Piece
-
HOTSELL 36v 10ah Lithium Electric Bike Battery With Bottle Type and New Bottle Battery 36v 12ah Quality ChoiceUS$ 1 - 50MOQ: 1 Pack
-
Popular 36v 350w Electric Bicycle Battery With 10ah-15ah and 36v Lithium Electric Bicycle Battery Pack Quality ChoiceUS$ 1 - 50MOQ: 1 Pack
Specifications
1, 36v 20ah electric bike battery2, 36v 20ah lithium bicycel battery
3, 48v 1000w electric bike battery
4, 24v lithium bike

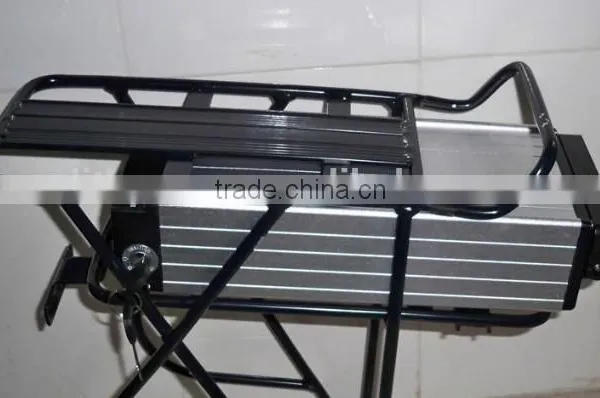

Rear rack 36v 20ah electric bike battery, for high power 36v 350-750w lithium bicycle battery .long life lifepo4 rear carrier ebike battery. 48V20AH lithium rear rack battery, for 48V 1000W motor e-bike battery. 48V 1000W electric bike lithium rear rack battery.
SHENZHNE LITHPOWER provides a vertical supply chain from lithium ion single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution.We provides a vertical supply chain from single cells, battery packs to Battery modules with matched BMS as well Chargers as a completely turn-key power solution for our customers.
LITHPOWER offers Lithium 36V20Ah Electric Bike Battery, High power 36V 20AH LITHIUM ION ELECTRIC BIKE BATTERY, light weight 36V 20Ah Lithium Bike Battery, Lithium Ion 36V20AH Electric Bike Battery, long life Lithium36V Electric Bike Battery, LITHIUM 36V20AH BIKE BATTERY, 36V 20AH LITHIUM BIKE BATTERY, 36v20w Lithium Bike Battery Pack, Lithium 36v 20ah electric bike battery
Battery Material |
Lithium Ion Electric Rear Carrier Battery |
|||||
Battery Pack Model |
36V12Ah |
36V16Ah |
36V20Ah |
48V12Ah |
48V16AH |
48V20AH |
Combination Model |
10S6P |
10S8P |
10S10P |
13S6P |
13S8P |
13S10P |
Outer Packing Material |
PVC, Plastic shell, Plastic and Aluminum Shell, Steel Sheel |
|||||
Nominal Voltage |
36V |
36V |
36V |
48V |
48V |
48V |
Rated Capacity |
12/15Ah |
16/18Ah |
20Ah |
12/15Ah |
16/18AH |
20AH |
Max. Charge Voltage |
42V |
42V |
42V |
54.6V |
54.6V |
54.6V |
Normal Charege Current |
2-3A |
2-3A |
2-3A |
2-3A |
2-3A |
2-3A |
Cut-Off Discharge Voltage |
30V |
30V |
30V |
39V |
39V |
39V |
Max.ConstantDischarge Current |
20A |
20-25A |
20-25AA |
20A |
20-25A |
20-25A |
Max.Discharge Current (pulse) |
60A |
60-75A |
60-75A |
60-75A |
60-75A |
60-75A |
Charging Model |
CC/CV |
CC/CV |
CC/CV |
CC/CV |
CC/CV |
CC-CV |
Cycle Life(80%DOD) |
800 Cycles |
800 Cycles |
800 Cycles |
800 Cycles |
800 Cycles |
800cycles |
Charge Temperature |
0-45°C |
0-45°C |
0-45°C |
0-45°C |
0-45C |
0-45C |
Discharge Temperature |
-20-55°C |
-20-55°C |
-20-55°C |
-20-55°C |
-20-55C |
-20-55C |
Motor Range |
36V350-500W |
36V350-550W |
36V350-750W |
48V350-500W |
48V350-750W |
48V350-1000W |
Features:
A. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.
B. Long life-cycle: Can be circularly used, best can up to 800 times recycles, 8 times of Lead acid battery.
C. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.
D. Good performance at high temperature and high temperature resistance
E. Low self-discharge rate, less than 3% monthly.
F. No memory effects and highly efficient charge.
G. Environment friendly: Clean and Green energy poses no pollution on our environment.
LITH POWER offers different lithium rear rack battery, like 36V500W electric bike lithium rear rack battery, and 48V20AH lithium rear rack battery, for 48V 1000W motor bike battery, 48V1000W e-bike lithium rear rack battery.
♣ Long lifecycle: more than 2000cycles with 1C rate, nearly 8 times of lead acid battery.
♣ Low self-discharge: < 3% monthly
3C |
LiFePO4 |
Lead Acid |
Ni-Cd |
Ni-Mh |
Self-discharge/month |
less than 3% |
10% |
13%~15% |
25~35% |
♣ High power output
♣ No memory effect: can be recharged efficiently with no reduction of capacity.
♣ Wide working temperature range: -20~65°C
♣ Lighter weight and smaller dimension: 1/2 size and 1/3 weight of lead acid battery, 70% size of Ni-MH Ni-Cd battery
Application
♣ Electric propelling applications: engine starting battery; Slow Speed Car; intellectual robots; electric bicycle/motorcycle/scooter; golf trolley/carts/ sightseeing car; power tools.
♣ Energy storage: solar and wind power system; city on/off grid; community and family, RV Caravan, Marine yachts.
♣ Back-up system and UPS: telecom base, CATV-system, computer server center, medical instrument, military equipment.
♣ Other applications: security and electronics; mobile POS, mining light/torch/LED light/emergency light.
Excellent service
1.2 years' warranty on our LiFePO4 Battery
2. Fast Delivery service.
3. Quick response to your any inquiry within 12 hours.
4. Customized design is available, OEM and ODM are welcome.
5. Shipment by Air Express (door to door service), by Air Flight and by Vessel, all Available.
6. Offer the highest quality with the best price.
7. Professional Pre-sales service with Whole-hearted After-sales service.
Your inquiry will be warmly welcomed, looking forward to our long term cooperation.
