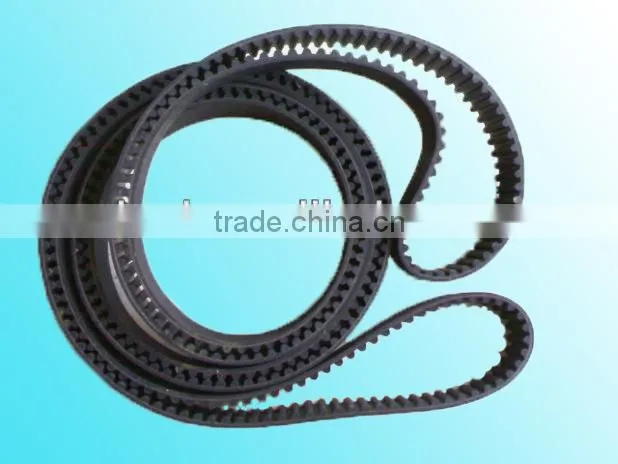

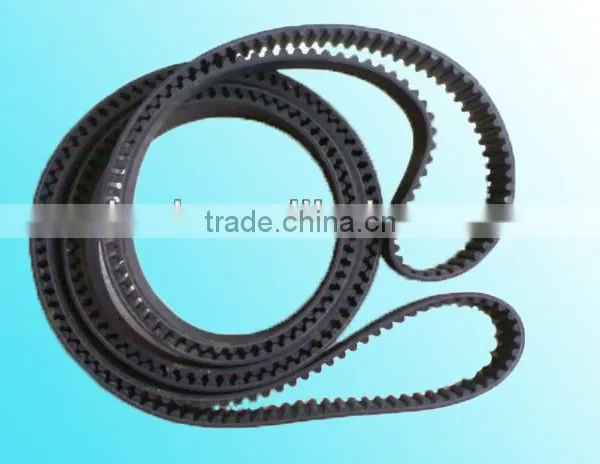

Help CenterLong Life Machine Timing Belt
Related Products
-
High Quality Durable ISO Standard Rubber Conveyor BeltUS$ 2 - 8.9MOQ: 100 Pieces -
Oil Resistance MXL Timing BeltUS$ 0.2 - 6MOQ: 100 Pieces
-
Glass Fiber Cord Heat Resistance Htd Rubber Sewing Machine Timing BeltUS$ 1 - 8MOQ: 100 Pieces
-
Rubber STD 5M Timing Belt/conveyor BeltUS$ 0.5 - 6MOQ: 50 Pieces
-
Hot Sale Wear Resistance Rubber Conveyor Belt (8YU-1176) Open BeltUS$ 0.8 - 10MOQ: 50 Pieces
Timing belt is one of the most important part of power transmission drives, which exhibits important properties such as fixed speed ratio, no re-tensioning after installation, low maintenance with wide variety of power transmission capacity and drive speeds.
T type industrial rubber timing belt: | |||||
Type |
Pitch |
Tooth height |
Belt thickness |
Angle β ° |
|
Pb(mm) |
ht(mm) |
hs(mm) |
|||
MXL |
2.032 |
0.51 |
1.14 |
40 |
|
XL |
5.08 |
1.27 |
2.30 |
50 |
|
L |
9.525 |
1.91 |
3.60 |
40 |
|
H |
12.7 |
2.29 |
4.30 |
40 |
|
XH |
22.225 |
6.35 |
11.20 |
40 |
|
XXH |
31.75 |
9.53 |
15.70 |
40 |
|
T2.5 |
2.5 |
0.70 |
1.30 |
40 |
|
T5 |
5 |
1.20 |
2.20 |
40 |
|
T10 |
10 |
2.50 |
4.50 |
40 |
|
T20 |
20 |
5.00 |
8.00 |
40 |
|
AT5 |
5 |
1.20 |
2.70 |
50 |
|
AT10 |
10 |
2.50 |
5.00 |
50 |
|
AT20 |
20 |
5.00 |
8.00 |
50 |
|
ABC tooth industrial rubber timing belt: | |||||
Type |
Pitch |
Tooth height |
Belt thickness |
Belt thickness |
|
Pb(mm) |
ht(mm) |
hs(mm) |
|||
HTD |
2M |
2 |
0.75 |
1.36 |
|
3M |
3 |
1.17 |
2.40 |
||
5M |
5 |
2.06 |
3.80 |
||
8M |
8 |
3.36 |
6.00 |
||
14M |
14 |
6.02 |
10.00 |
||
20M |
20 |
8.40 |
13.20 |
||
STPD/STS |
S2M |
2 |
0.76 |
1.36 |
|
S3M |
3 |
1.14 |
1.90 |
||
S4.5M |
4.5 |
1.71 |
2.81 |
||
S5M |
5 |
1.91 |
3.40 |
||
S8M |
8 |
3.05 |
5.30 |
||
S14M |
14 |
5.30 |
10.20 |
||
RPP/HTTD |
RPP2M |
2 |
0.76 |
1.36 |
|
RPP3M |
3 |
1.15 |
1.90 |
||
RPP5M |
5 |
1.95 |
3.50 |
||
RPP8M |
8 |
3.20 |
5.50 |
||
RPP14M |
14 |
6.00 |
10.00 |
||
Product Description
Raw materials used for Industrial timing belt: Imported high quality synthetic neoprene as the main raw material, with many different uses of auxiliary materials; Skeleton material is high quality glass fiber cord imported from Japan; And using nylon 66 high stretch on tooth surface for protection. With dynamic bend resistance, fatigue performance is good, and anti- aging, heat resistant, oil resistant, wear resistance etc.
industrial timing belt:
Suzhou Xianghong Transmission Co.,Ltd established in 1995, after nearly 20 years development, our factory have to be a professional timing belt manufacturer, mainly manufacturing rubber timing belt, PU open-end belt, Coated timing belt and ribbed belts.
"XIANGHONG" brand timing belt has superior anti-bent, anti-wearing out, small elongation rate and strong, also, it is anti-oil, anti-heat, anti-aging
To ensure good quality of Timing belt, the main raw materials are all imported from advanced countries.
Any questions please contact me freely.
Skype:suzhouxh02
Cell:+86 15862522825
