50kw High Frequency High Voltage Radiology x Ray Machine

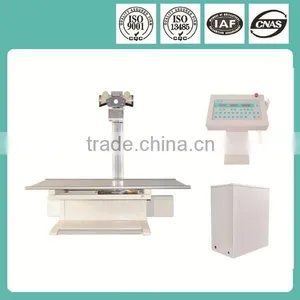

50kw High Frequency High Voltage Radiology x Ray Machine thumbnail-1

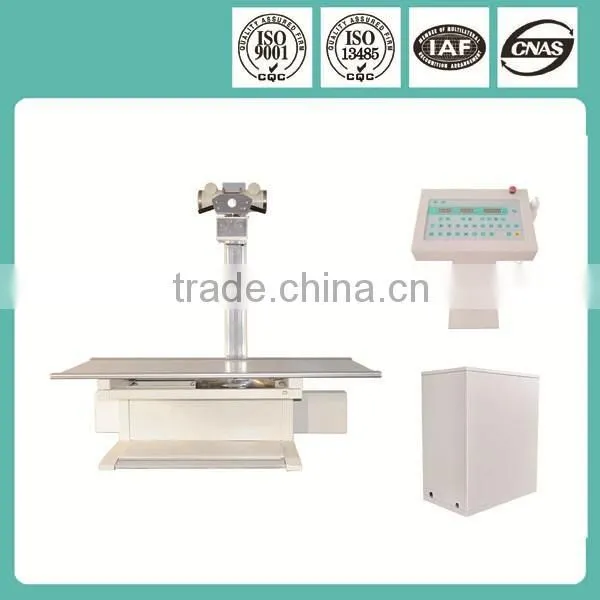

50kw High Frequency High Voltage Radiology x Ray Machine photo-1
US$ 100 - 15,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Properties:
Other, Medical X-ray Equipments & Accessories
Brand Name:
Newheek
Model Number:
NKX-500/I
Contact Supplier Request Quote Chat Now
Weifang Newheek Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Properties Other, Medical X-ray Equipments & Accessories
Brand Name Newheek
Model Number NKX-500/I
Place of Origin Shandong, China



50kw high frequency high voltage radiology x ray machine



1. Product Highlights

* Intelligent automatic, adopt AEC iron chamber design, the doctor only needs to choose the exposure body part, the x-ray can adjust exposure dose and finish exposure automatically.



* Digital, it can make exposure by user PC interface, which can realize the generator and PC operation seamless connection.



2. Technical Features

Components

Performance Parameters

HV Generator

Power Supply



Voltage

380V±10%

Frequency

50HZ±1HZ

Capacity

≥50kVA

Internal Resistance

≤0.25Ω

Radiography Parameters



Inverting Frequency

≥30kHZ

Power

≥50kW

Tube Current

16-500mA, Steps are adjustable

Tube Voltage

45-125KV, Stepping is 1KV

Exposure Time

0.01-6.3S,26 steps

Selection Mode

64 kinds of exposure conditions are stored,the operator can choose them freely

X-ray Tube Assembly



X-ray Tube Type

XD52-30.5/125KV

XD52-10.40/150KV

Focus

Bifocus 1×1,2×2

Anode Rated Speed

2800r/min

  Auto exposure control iron chamber

 3-area AEC, include integrated operation amplifier module

  Multi-function Radiography Table

          Items

Performance Parameters

     Table Surface Movement

Vertical

±560mm

Electromagnetic Lock

Pedal Release

Horizontal

±120mm

Fixed Bucky

Bucky Specifications



Grid Density:40L/cm,

Grid Format Ratio:10:1

Focusing Distance:100cm

Movement Range

≥610mm

Radiography Specifications

5″×7″,8″×10″,10″×12″,11″×14″,

12″×15″,14″×14″,14″×17″, 17″×17″

Distance Between Table Surface and Film

75mm

Height of Table Surface

700mm

                   Column Movement

180°Locating per 90°,Vertical Travel≥1500mm

Tube Movement

Circling Horizontal Arm±180°,Up-Down Travel 100mm



3. Standard Configuration



Item

Part Name

1

Remote Console

2

High Voltage Generator Device

3

X-Ray Tube Assembly

4

Multi-function Radiography Table

5

Fixed Bucky





4. Optional Configuration



Item

Part Name

1

Auto Exposure Control Iron Chamber

2

Chest Radiography Stand

3

Flat Panel Detector





5. Packing

* Plywood Waterproof Case Packing, which is convenient for customer import

* Two Cases:

   Radiography Table Case: Length 215cm* Width 80cm* Height 70cm

   High Voltage Generator Case:  Length 86cm* Width 54cm* Height 83cm



6. Delivery

* Within 7 days after receiving the payment



Newheek Advantages


√   Original manufacturer of image intensifier TV system and x-

   ray machine accessories for more than 16 years.



√  Customers could find all kinds of x-ray machine parts here.



√ Offer on line technological support.



√ Promise super product quality with best price and service.



√ Support the third part inspection before delivery.



√ Ensure the shortest delivery time.
