Metal Security Steel Door Frame Making Machine
Machine as designed by 15 years experienced R&D members.
Certificate: ISO 9001, CE,

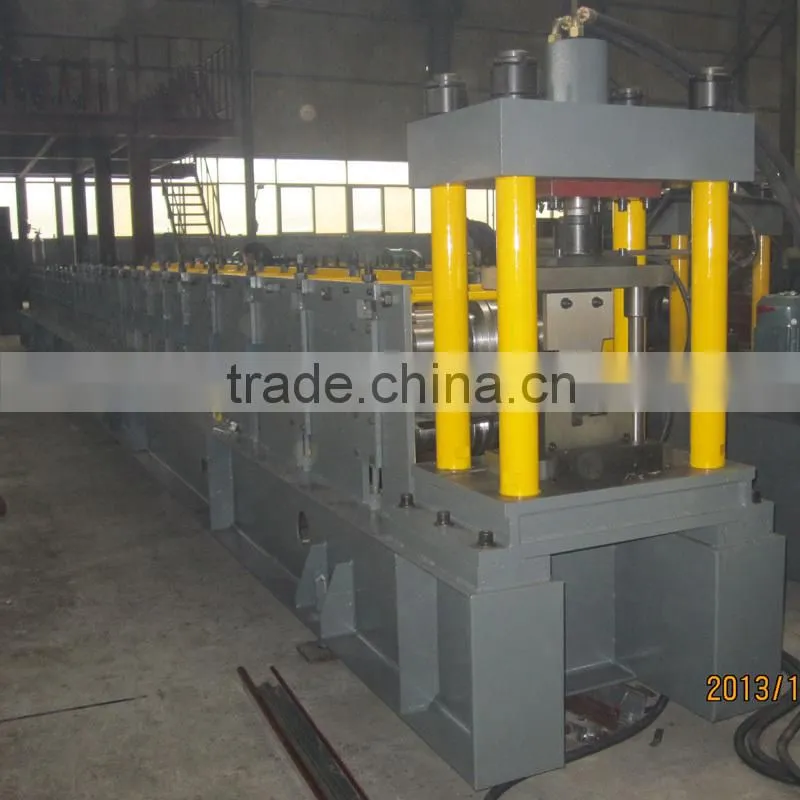

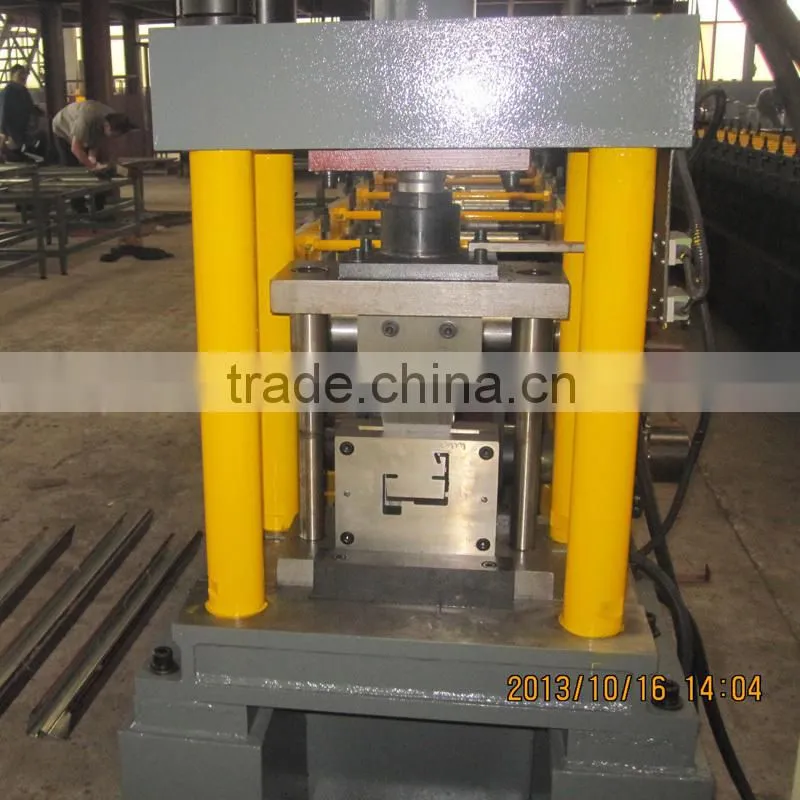

Cutting device
Cr12 mould steel cutter with quenched treatment.
Improved structure, more stable cutting performance.
1. Main technical Parameters of Metal Security Steel Door Frame Roll Forming Machine
| Item | Specification | |
| Type | Cold-rolled steel strip or heat-treated galvanized steel strip | |
| Material | Thickness(mm) | 1.2 |
| Roller material | 45#Chrome steel | |
| Forming speed(m/min) | About 15 (excluding in cutting time) | |
| Speed adjusting mode | AC Frequency | |
| Roller drive | Decelerating motor + Chain drive | |
| Cutting mode | Hydraulic cutting | |
| Cutter material | Cr12 mold steel | |
| Length measurement | Encoder | |
| Control mode | Mitsubishi PLC | |
| Operating mode | Button + Mitsubishi Touch screen | |
| Main motor power(kw) | 7.5KW (Depend on final design) | |
| Hydraulic station power | 5.5K W (Depend on final design) | |
| Total power(kw) | 13KW | |
| Uncoiler's loading capacity | Max. Capacity: 3000kgs | |
| Machine`s size | About 7*1*1.4m (Depend on final design) | |
| Machine weight | About 3500kgs | |
2. Components of Metal Security Steel Door Frame Roll Forming Machine
3. Process flow:
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting – product to run out table

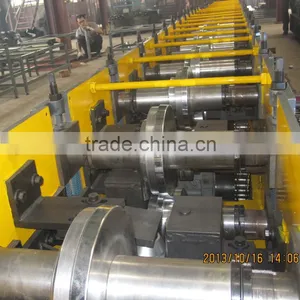

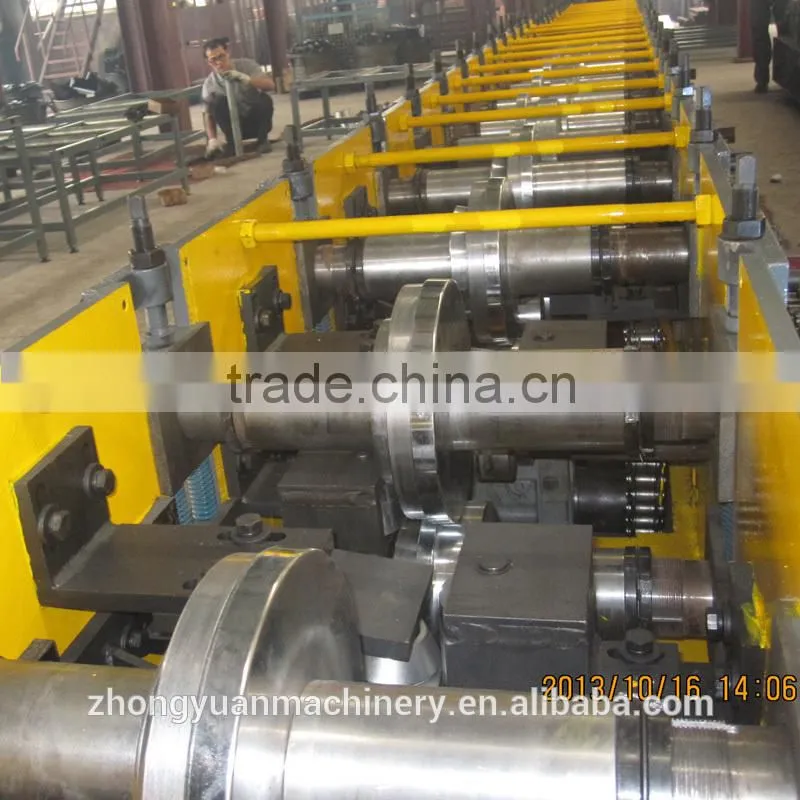

4. Rollers and shafts of Metal Security Steel Door Frame Roll Forming Machine

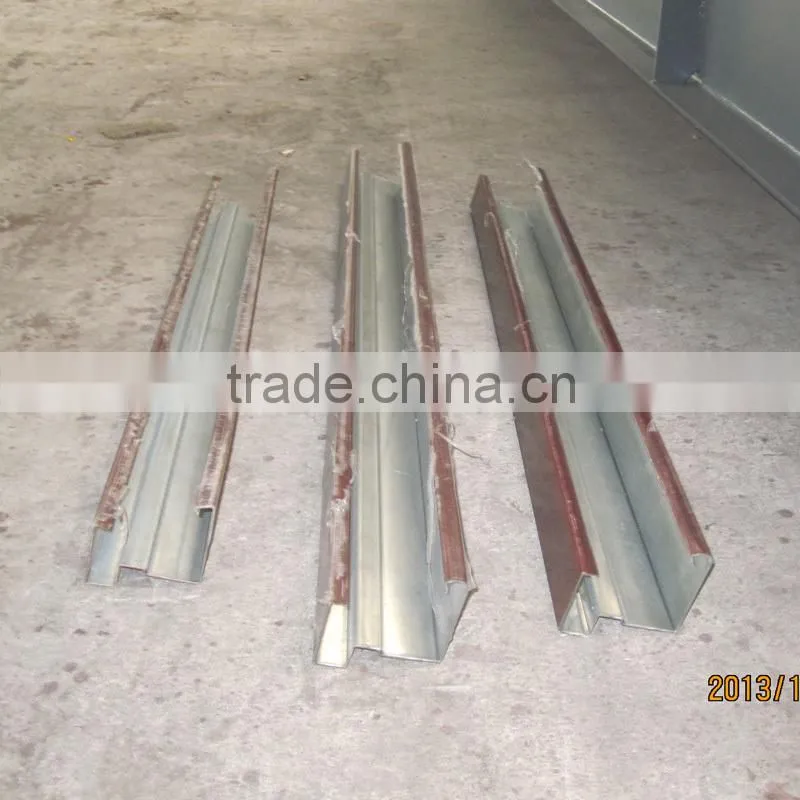

5. Products formed by this machine
PLC Controller for machine controller system
Inside of PLC Controller for reference
Metal Security Steel Door Frame Roll Forming Machine
Why us?
1. Customize roll forming machines since 2003.
2. Capacity: 12-15 sets/month
3. Delivery: in only 5-8 weeks for urgent order
4. Company occupies 6650, in which 5650 for workshops
5. Have our own tool center. 12 sets CNC machines.
6. Technician can be sent to your factory to install the machine and train your workers
Please feel free to contact us for more information!
