Specifications
1, PET bottle blowing machine2, 3500 BPH
3, automatic controlling system
4, steady air compressor system

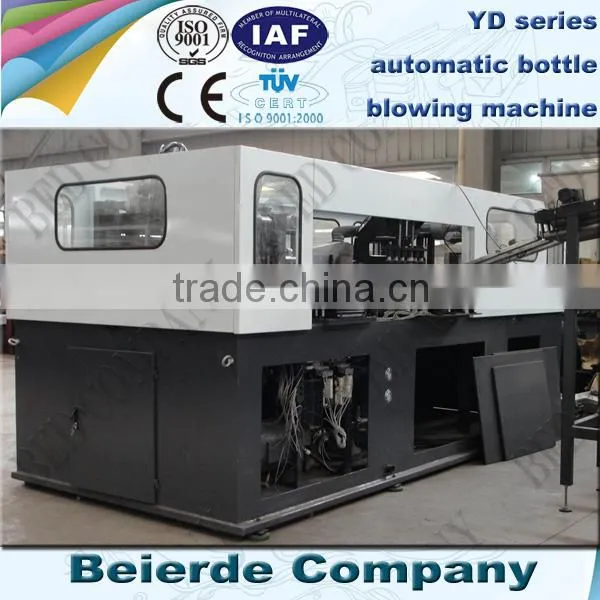

YD series PET bottle blowing machine is suitable for producing PET plastic containers and bottles from 50-2000ml. It is widely used to produce the carbonated drink bottle, water bottle, hot filling bottle, oil bottle, cosmetics, wide mouth bottle, etc.
Characters
Adopting double crank to adjust mould, heavy locking mould, stable and fast. Adopt infrared oven to heat the perform, the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow. It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
| Machine model | YD-3500 |
| Capacity (500ml) | 3500 bottles per hour |
| Suitable bottle type | PET bottle, 250ml to 1.5L |
| Machine total power | 20kw |
| Pressure of air supply | 2.5mpa |
| Max. mould dimension | 20×35×38cm |
| Max. shifting mould dimension | 17cm |
| Center distance between two bottles | min: 9cm, max: 20cm |
| Max. stretched length | 35cm |
| Overall size | 365×165×200cm |
| Preform autoloader | 110×120×220cm |
| Net Weight | 3500 kg |
A: YD series automatic PET bottle blowing machine
B: Air compressor system
C: Air cooling and filter system
D: Water cooling machine
E: Automatic PET bottle filling machine
F: Automatic PET bottle labeling machine
G: Automatic date printer
H: Automatic PET bottle wrapping and packing machine
I: Filled bottle conveying system
Model |
YD-1500 |
YD-5500 |
YD-7500 |
Capacity (500ml bottle) |
1500 |
5500 |
7500 |
Number of Cavities |
2 |
6 |
8 |
Max. Container Volume |
2L |
||
Neck Diameter Range |
38-50mm |
||
Max. Container Diameter |
360mm |
||
Max. Container Height |
380mm |
||
Bottle/standard |
Circle bottle |
||
Overall dimensions |
1.45×0.60×1.7 M |
7.3x2.2x2.1 M |
7.6x1.6.x2.0 M |
Weigh(kg) |
1350 |
4500 |
6800 |
Power(kw) |
15 |
35 |
55 |
Zhangjiagang Beierde beverage machinery manufacturer Co., Ltd. is a professional beverage machinery manufacturer.
Main products are:
1. 2,000-20,000 BPH Drinkable Water Bottling Line
2. 2,000-20,000 BPH Hot Bottling Line
3. 2,000-15,000 BPH Carbonated Beverage Bottling Line
4. 100-2,000 Barrels/Hour 3-Gallon & 5-Gallon Water Filling Line
5. PET Preform Injector and Bottle Blow Moulding Machine
6. 1-30 Ton per hour Water Treatment
7. 1-20 ton per hour juice and carbonated drink preparing system
