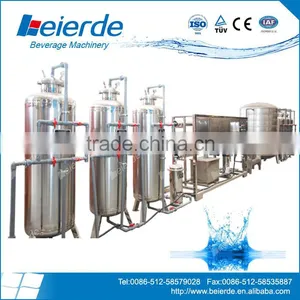

Help Center2 TON T RO Water Treatment System for Drinking Water, Mineral Water, Sparking Water Etc
Related Products
-
4 TON RO Water Treatment System for Drinking Water, Distill Water, Sparking WaterUS$ 3,000 - 150,000MOQ: 1 Set -
6 TON RO Water Treatment System for Drinking Water, CSD. JuiceUS$ 3,000 - 150,000MOQ: 1 Set
-
8 TON RO Water Treatment System for Drinking Water. CSD and JuiceUS$ 12,000 - 150,000MOQ: 1 Set
-
10 TON RO Water Treatment System per Hour for Distill Water, CSD and JuiceUS$ 12,000 - 150,000MOQ: 1 Set
-
12 TON RO Water Treatment System per Hour for Drinking WaterUS$ 12,000 - 150,000MOQ: 1 Set
Specifications
Water Treatment Equipment1.Rate of salt eliminated:>98%
2.Electric current:<10US/cm
3.Bacteria:<10m/m3

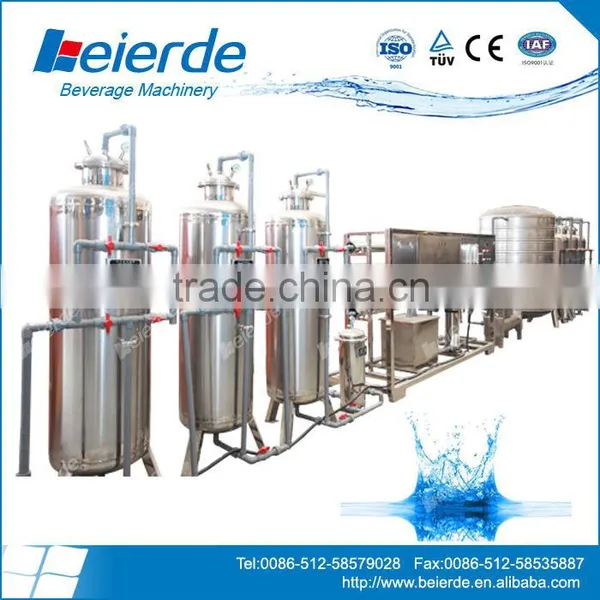

2 TON T RO water treatment system for drinking water, mineral water, sparking water etc
Introduction
1. This machine has normal pure water production technique, open-frame design as well as clear working process, easy to maintain and good after-service.
2. With high quality of super-low-pressure TFC compound RO membrance precise filter technique, the ability of getting rid of metallic ions can reach 99%. And with other filters, you can produce pure water conforming to the hygienic standard.
3. With all kinds of filters, can get better ability of decontamination.
4. Active carbon can absorb chlorine residue 100%, protect RO membranes from damage, also gets rid of color and smell, improve the taste of pure water.
5. Water pressure protects system at all the pumps, connect the electricity source, open the water input value. When the pressure is lower than the rated voltage, the pump will stop automatically.
6. If the hardness of the original water is too high, it must be connect with a machine making water soft automatically(RS-5), It will be prevent membranes from fouling and keep the flux of pure water.
7. The apparatus also has flocculants function, RO membranes stopping filth preparation, HP range regulator connected with the medicine-adding element, you can adopt any of them according to the water quality of your place.
8. With the electro conductivity monitor on the control panel, you can check the water quality at any time.
9. Safe and reliable electrical system design; With automatically flush of RO membrane. And with low-pressure-protecting system, the apparatus will start or stop according to the water level in the pure water tank connected with the apparatus.
10. Open-frame design, easy to carry and install.
System specification:
Raw water raw water pump Quartz sand filter Active Carbon filter water softener PP sediment filter 50M3/h RO system pure water
Model: RO-50000
Capacity of pure water: 50, 000 L/H
General power: 56KW
Electrical power: AC 380V 120A 50Hz
RO membranes: CPA2 8040 54 items
Multi-phases pump: CR64-7(Groundfos Brand)
Beforehand filter: 2300× 2500× 6.0 2 items
PP sediment membranes filter tube: 500× 1000× 2.0 2 items
Booster pump: CR64-2-1
Active carbon filter: 2400kg
Quartz sand filter: 7500kg
Functions of the machine:
RO membranes auto wash and manual wash
RO membranes manual wash with medicine
Pure water high water level auto stop, low water level auto start
Multi-phases pump protected without water Protected when no power, poor power, short circuit, larger electric current, creepage of electricity.
Out size of main machine:
Out size of beforehand filter:
6500× 1500× 2000mm
7000× 2300× 3800mm
