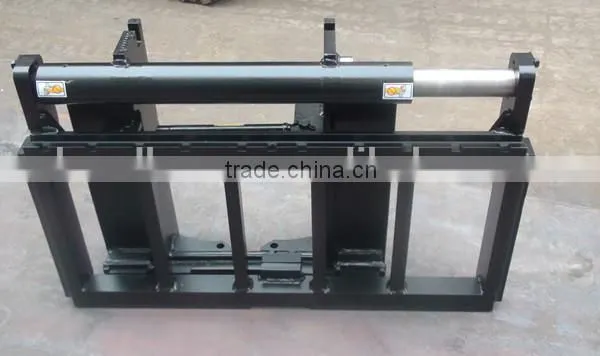

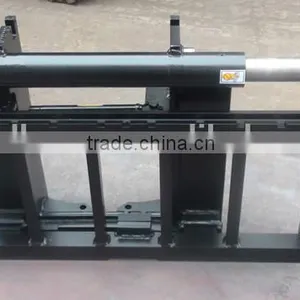

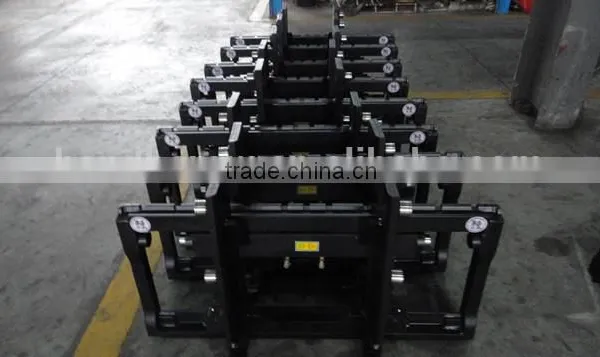

Help CenterIntegral Forklift Sideshifter
Related Products

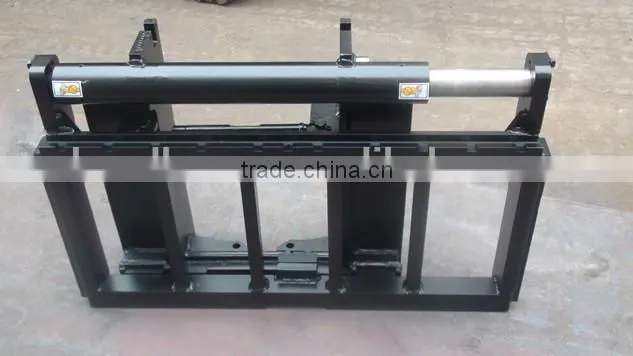

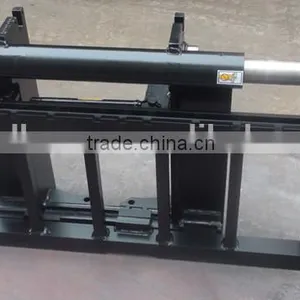

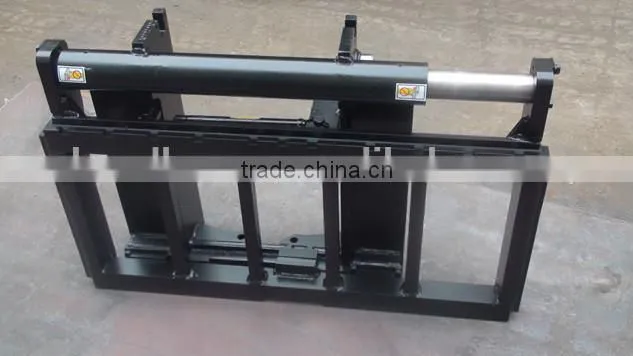

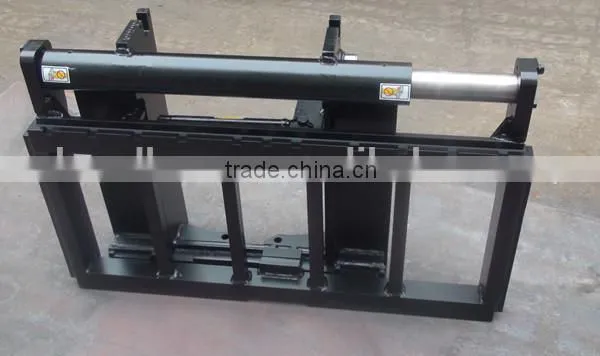

Integral sideshifters can provide greater net capacity as the effective thickness of the mast is reduced in comparison to using hang on sideshifters, greatly improve the flexibility and moving efficiency. They are suitable for various occasions using forklift for moving and stacking.
Features:
- Integrate fork carriage and hang on sideshifter into a frame, widening the view and improving the cost performance;
- Reliable design, easy installation and maintenance;
- Large carrying capacity, compact structure, light weight;
- The slide bearings used high-strength wear-resistant nylon material to ensure smoothly move and long service life, easy to replace;
- Integral sideshifter is also designed to allow the addition of fork positioner as a factory order.
Technical Data:
|
Capacity@Load Center (Kg@mm) |
Catalog Order No. |
Mounting Class |
Sideshifting Range (mm) |

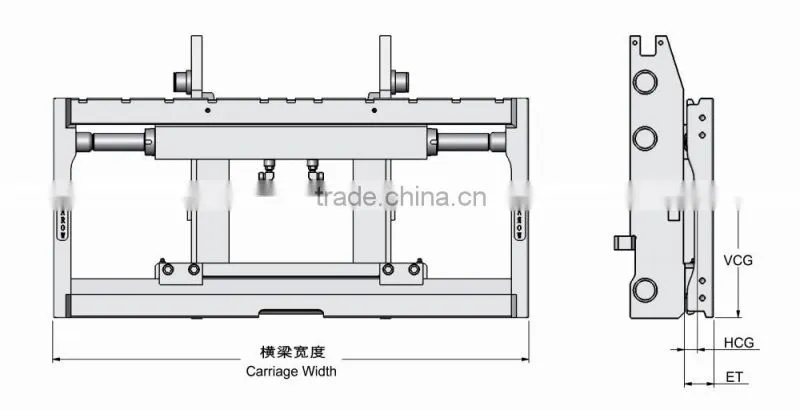

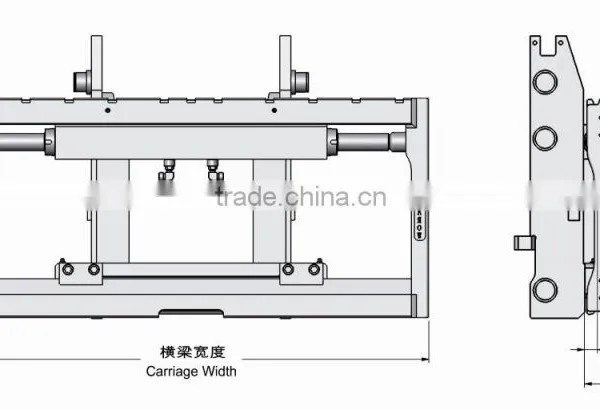

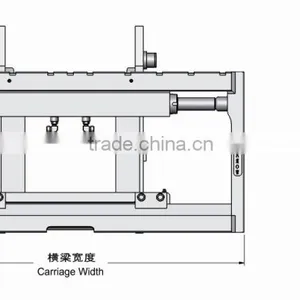

Carriage Width (mm) |
Vertical Center of Gravity VCG (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity HCG (mm) |
Available Forklift (Tons) |
1800@500 |
ZTCY15T |
II |
±100 |
970 |
210 |
108 |
68 |
32 |
1~1.8 |
2500@500 |
ZTCY25T |
II |
±100 |
1038 |
210 |
128 |
68 |
35 |
2~2.5 |
3500@500 |
ZTCY35T |
III |
±100 |
1100 |
306 |
182 |
68 |
40 |
3~3.5 |
4500@500 |
ZTCY45T |
III |
±100 |
1230 |
315 |
200 |
68 |
42 |
4~4.5 |
4800@500 |
ZTCY45TA |
III |
±100 |
1380 |
315 |
235 |
84 |
42 |
4~4.8 |
6000@600 |
ZTCY60T |
IV |
±150 |
1720 |
515 |
757 |
151 |
68 |
5~6 |
7000@600 |
ZTCY70T |
IV |
±150 |
1840 |
515 |
780 |
151 |
68 |
7 |
7000@600 |
ZTCY70TA |
IV |
±150 |
2400 |
515 |
960 |
151 |
68 |
7 |
8000@600 |
ZTCY80T |
V |
±150 |
1840 |
360 |
1030 |
134 |
75 |
8 |
8000@600 |
ZTCY80TA |
V |
±150 |
2200 |
620 |
1220 |
134 |
75 |
8 |
10000@1100 |
ZTCY100T |
V |
±150 |
2400 |
620 |
1290 |
134 |
75 |
10 |
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires one more oil circuit for the forklift;
3. The above types are the regular products of Handbarow, customized solution is available, please contact our sales representative.
