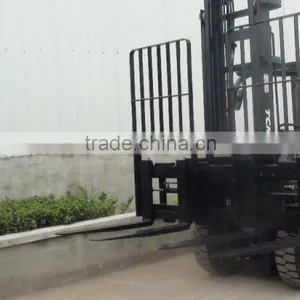

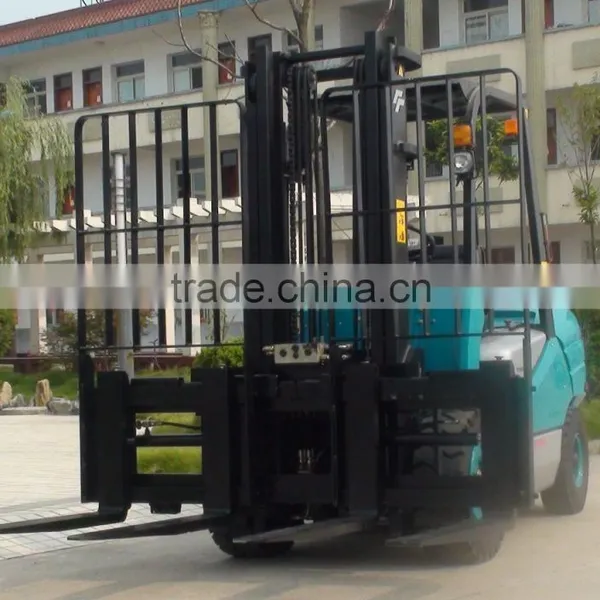

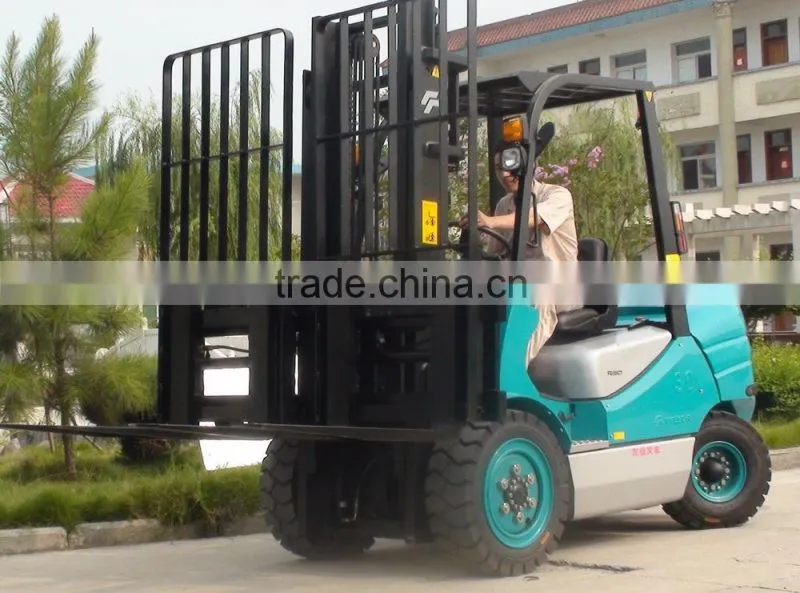

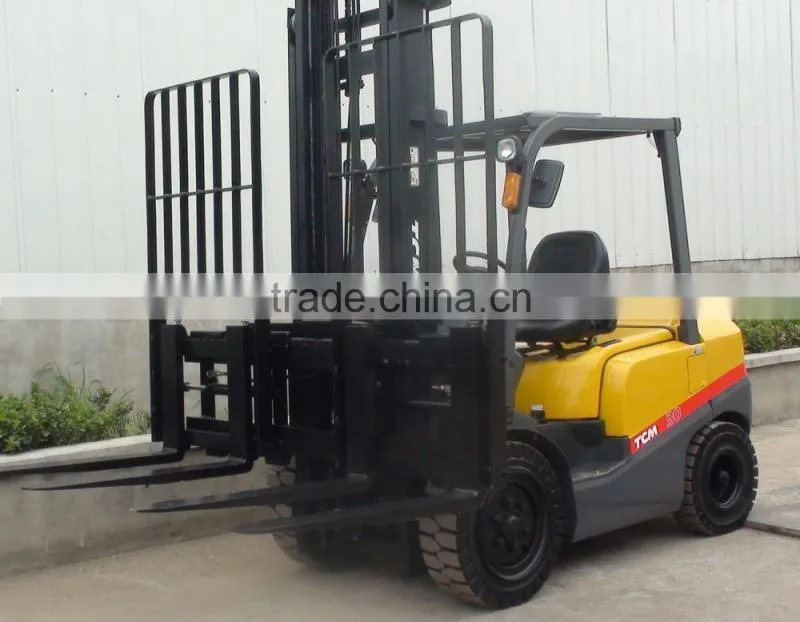

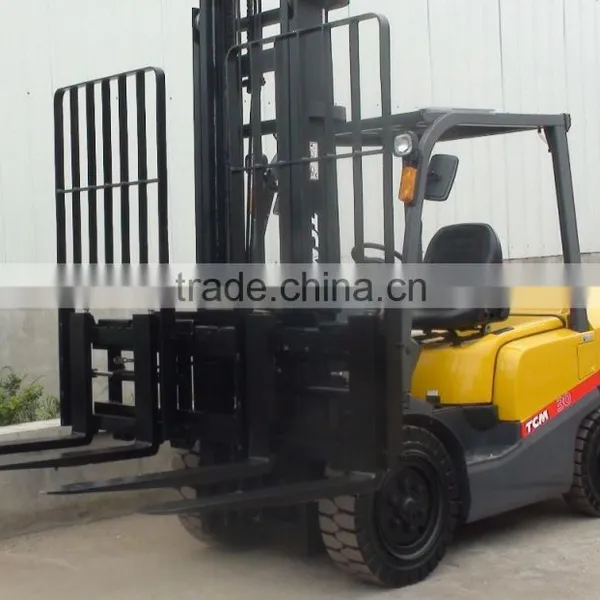

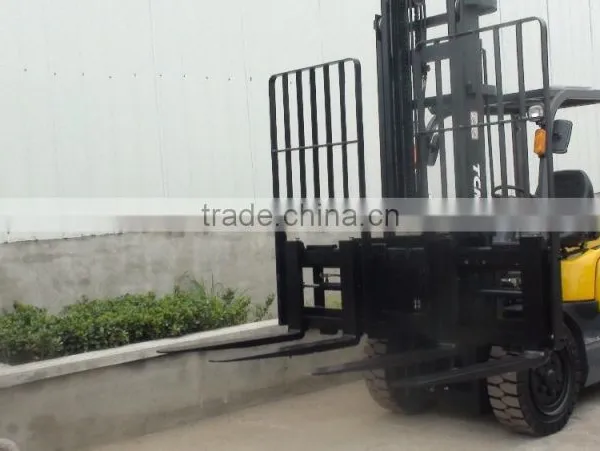

Help CenterDouble-wide Forklift Sideshifter
Related Products

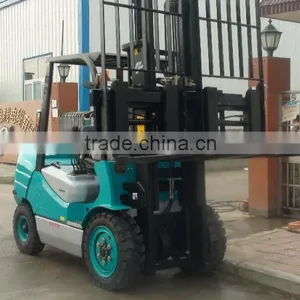

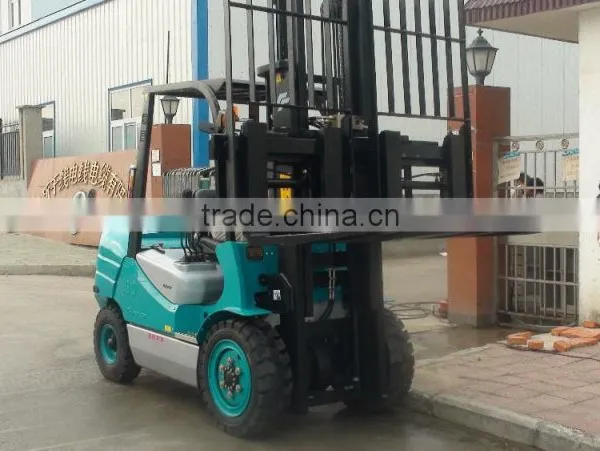

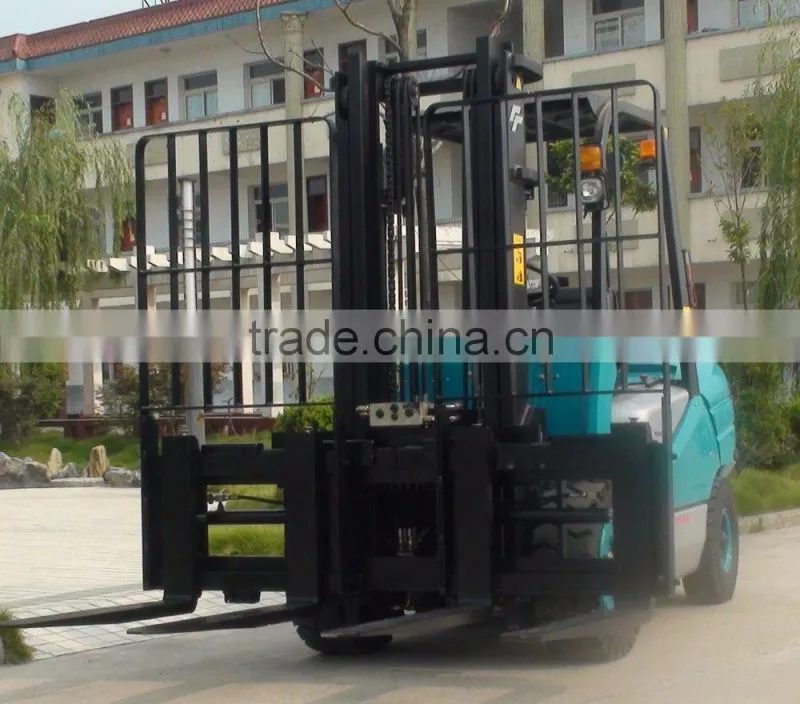

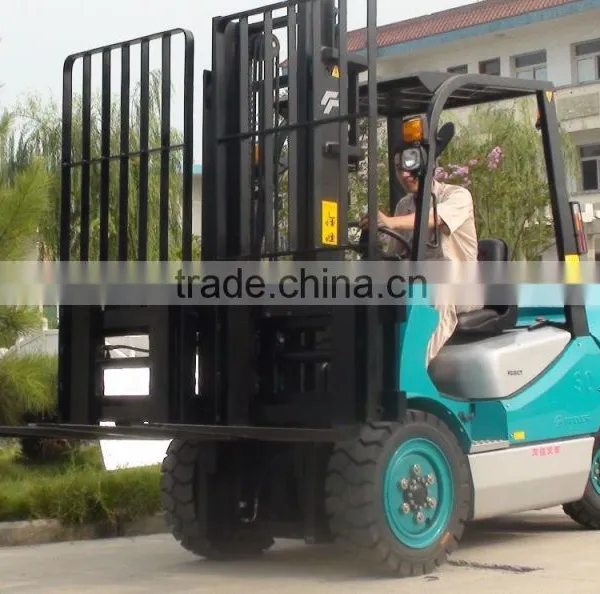

Double-wide sideshifters are widely used in filling, brewing, warehousing and other fields which need double-pallet handling and stacking, by making the forklift move two pallets of cargos respectively and them close and separate, greatly improves the handling efficiency.
Technical Date:
|
Capacity@ Load Center (kg@mm) |
Catalog Order No. |
Truck/Sideshifter Mounting Class |

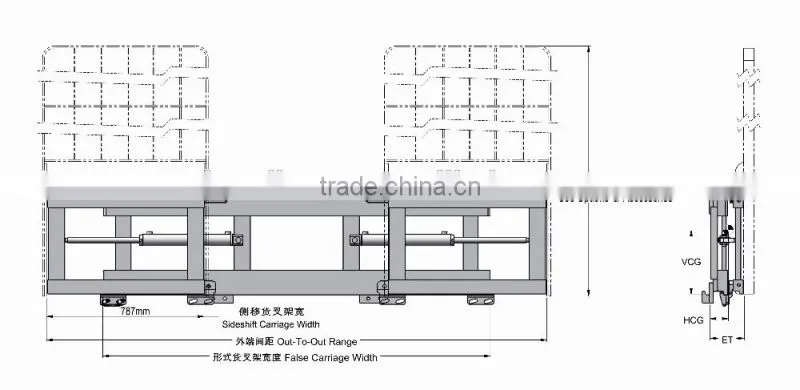

Out-to-Out Range (mm) |
Max. Pallet Spread (mm) |
Carriage Width (mm) |
Vertical Center of Gravity VCG (mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity HCG (mm) |
2500@600 |
SCY25TA |
II/ II |
1730-2410 |
685 |
1830 |
213 |
296 |
118 |
52 |
2500@600 |
SCY25TB |
II/ II |
1805-2490 |
685 |
1930 |
218 |
308 |
118 |
52 |
3000@600 |
SCY35TA |
III/ II |
1730-2410 |
685 |
1830 |
230 |
328 |
126 |
58 |
3000@600 |
SCY35TB |
III/ II |
1805-2490 |
685 |
1930 |
240 |
339 |
126 |
58 |
Remarks:
1. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
2. Matching this attachment requires 2 more oil circuits for the forklift;
3. Bracket and forks for optional, please tell us the detailed requirements when place the order;
4. Other types can also be supplied in accordance with different brands or models of forklifts and special working conditions.
