Forklift attachment integral type fork positioner
Integral type fork positioner integrated the sideshifter, fork positioner and fork carrier into a frame, is widely used in distribution, warehousing and manufacturing operations, this high visibility fork positioner allows the driver to adjust the forks accurately without leaving the seat, greatly improves the flexibility and moving efficiency.
Features:
Excellent driver visibility and safe & reliable operation;
- Combined fork positioner and sideshifter together, large carrying capacity, compact structure and light weight;
- Engineering plastic ensures the slide bearing durable and smooth moving;
Adjustable fork carriage for various forks;
- No-welding installation, just connected to inner mast frame directly, same as installation of fork carrier, easy and simple for maintenance.

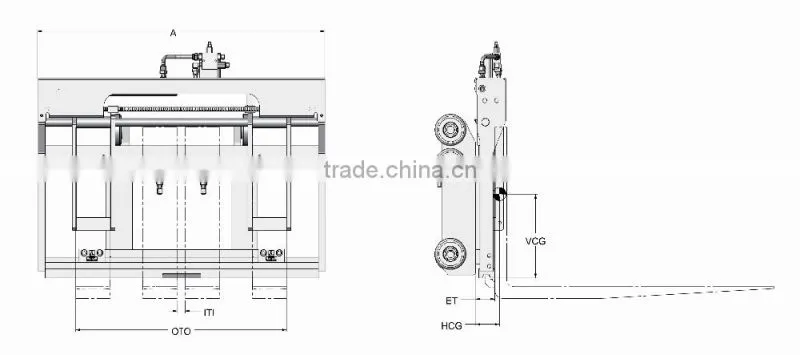

Technical Data:
|
Capacity@ Load Center (Kg@mm) |
Catalog Order No. |
Mounting Class |
Opening Range ITI/OTO(mm) |
Sideshifting Range (mm) |
Carriage Width A (mm) |
Fork Pocket Width (mm) |
Vertical Center of Gravity VCG(mm) |
Weight (kg) |
Effective Thickness ET (mm) |
Horizontal Center of Gravity HCG (mm) |
Available Forklift (T) |
1800@500 |
ZTCYTJ15T |
II |
35-890 |
±100 |
970 |
100 |
322 |
87 |
72.5 |
55 |
1~1.8 |
2500@500 |
ZTCYTJ25T |
II |
35-955 |
±100 |
1038 |
120 |
340 |
100 |
72.5 |
55 |
2~2.5 |
3500@500 |
ZTCYTJ35T |
III |
35-1010 |
±100 |
1100 |
130 |
355 |
150 |
72.5 |
60 |
3~3.5 |
4500@500 |
ZTCYTJ45T |
III |
35-1140 |
±100 |
1230 |
150 |
355 |
168 |
72.5 |
61 |
4~4.5 |
7000@600 |
ZTCYTJ70T |
IV |
70-1720 |
±100 |
1860 |
150 |
520 |
800 |
157 |
65 |
5~7 |
8000@600 |
ZTCYTJ100T |
V |
106-2100 |
±150 |
2208 |
175 |
625 |
1260 |
136 |
72 |
8~10 |
Remarks:
1. The installation same as fork carriage, please get the mounting dimensions from factory of forklifts;
2. Please get the actual comprehensive carrying capacity of forklifts and their attachments from the factory;
3. Matching this attachment requires two more oil circuits for the forklift;
4. The length of forks is no more than 1525mm;
5. The above types are the common products of Handbarow, customized solution is available, please contact our sales representative.
