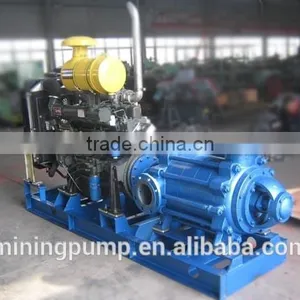

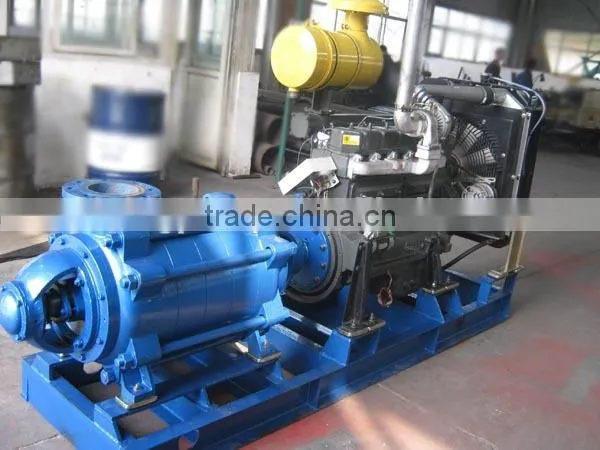

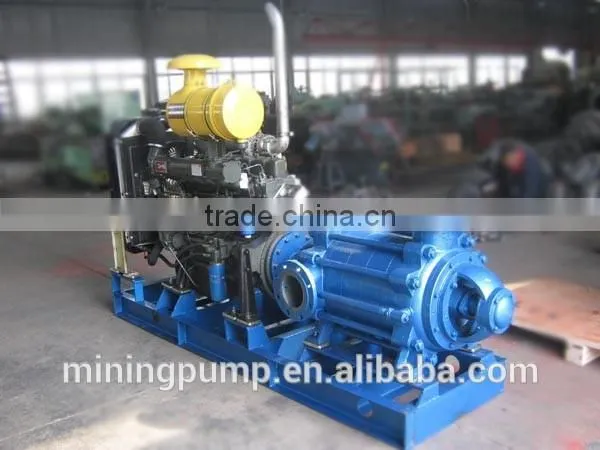

horizontal diesel farm irrigation water pump
Technical Data
| Product Name | horizontal diesel irrigation pump factory price |
| Capacity | 6.3-480m3/h |
| Head | 55-795 m |
| Motor Power | 5.5-1550 kw |
Product Introduction
D and DG pump is a horizontal multistage centrifugal pump, which is fit for transportation clean water (impurity content is less than 1%,granularity is less than 0.1mm)and or other liquid with physical and chemical characters like clean water.
D pump transportation medium temperature is not more than 80C, which is fit for mine discharge and water feeding to factory and city.
DG pump transportation medium temperature should not be more than 105C, which is fit for water feeding to small boiler or similar applications.

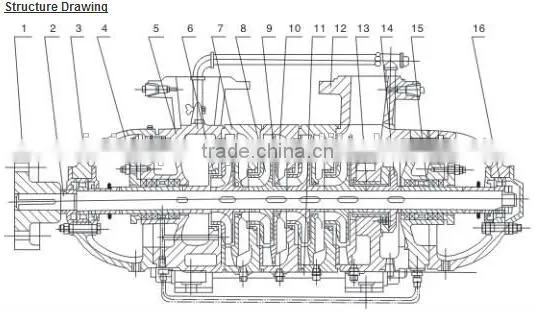

Structure Drawing
| 1.Pump Coupling | 9.Guide Blade |
| 2.Shaft | 10.Guide Blade Sleeve |
| 3.Roller Bearing Assembly | 11.Tighting Bolt |
| 4.Packing Gland | 12.Outlet Section |
| 5.Suction Section | 13.Balancing Sleeve |
| 6.Seal Ring | 14.Balancing plate |
| 7.Medium Section | 15.Packing Box |
| 8.Impeller | 16.Bearing |
Qualification

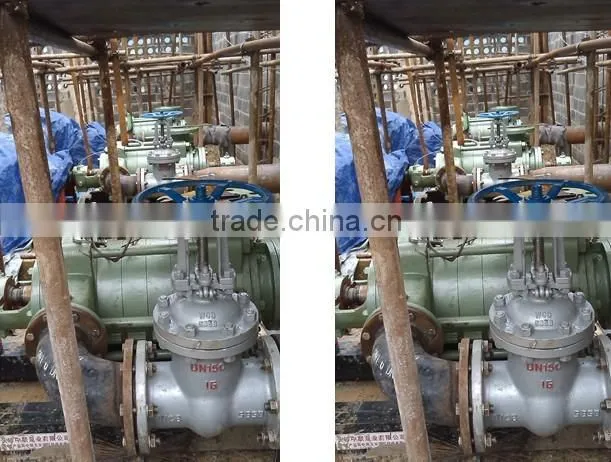

Application
Our factory
Other Product
If you insterest of our pump,Pls contact me freely.
