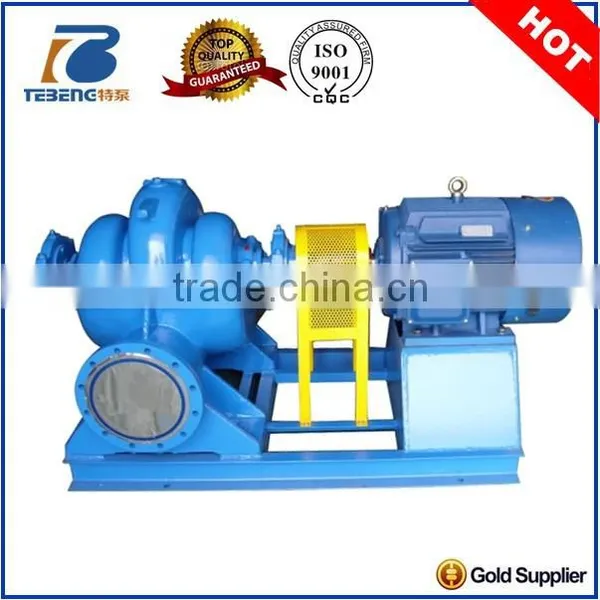

ASC. Axial split case pumps
Feature
single stage double suction large horizontal axial pump
Application : factory, city, power plant, hydraulic project for water supply and draining
Meida : clean water or similar liquid
Max temperature is 0°C~80°C,
Max inlet pressure is 0.6MPa.
Capacity range : 88~1400m3/h
Head range : 12~100m
Structure Type
S type large horizontal axial pump is horizontal installation.The inlet and the outlet are under
the shaft centerline.The pump is horizontal, split casing.And it is not necessary to disassemble
the inlet and outlet pipes when overhauling. The shaft sealing can be the mechanical sealing
and the soft packing sealing .
Application
widely used for water plant, irrigation, drainage pumping station, power station, water circulation of air conditioning,
industrial water supply system, fire system and shipping industry as well as the general purpose in the oil refining industry
| Model | capacity(m3/h) | head(m) | speed(rmp) | power(kw) |
impeller dia. (mm) |
inlet(mm) | outlet(mm) |
| 150S97 | 126 | 104 | 2950 | 75 | 270 | 150 | 100 |
| 180 | 97 | ||||||
| 16 | 87 | ||||||
| 200S63 | 216 | 69 | 2950 | 75 | 235 | 200 | 150 |
| 280 | 63 | ||||||
| 351 | 50 | ||||||
| 350S125 | 850 | 140 | 1480 | 710 | 655 | 350 | 200 |
| 1265 | 125 | ||||||
| 1660 | 100 | ||||||
| 700S90 | 4000 | 97 | 980 | 1600 | 840 | 700 | 500 |
| 4700 | 90 | ||||||
| 5500 | 77 |
Factory:
Other Pump
If you insterest of our pump,Pls contact me freely.
Shijiazhuang Special Industrial Pump Co., Ltd.
Tel: +86 311 80835688 Fax: +86 311 83073378
Mobile / WhatsApp: +86 188 3212 2828
Add: No.238, Beierhuan West Road, Xinhua District, Shijiazhuang, Hebei, China
Email: sales@specialindustrialpump. com
