Help CenterGJM Model Container Gantry Crane
Related Products
-
Lifting Container Use Rail Monted Gantry CraneUS$ 2,000 - 200,000MOQ: 1 Set -
RTG and RMG Container Cranes For SaleUS$ 12,000 - 135,000MOQ: 1 Set
-
Double Girder Port Gantry Loading CraneUS$ 12,000 - 135,000MOQ: 1 Set
-
Hot Sale Shipyard Rubber Tired Mobile Container CraneUS$ 300,000 - 1,200,000MOQ: 1 Set
-
Port Cranes for Loading of the ContainersUS$ 67,000 - 580,000MOQ: 1 Set
To lift the dream
As a crane equipment trader, to lift the heavy goods is only our obligation, not our purse
Sometimes we want to own a super robot, because the load is too heavy to bear, sometimes in life
Sometimes in we have to sigh for the dream. .
To lift the dream, this is our purse
the trade consultant would be the super robot of your life, career, and your dream.
I am in china, but serve you in the world. kehao, your trustworth supplier
MG Gantry cranes are all types of cranes which lift objects by an open winch which is fitted in a trolley and can move horizontally on a rail or pair of rails fitted under a beam. Gantry cranes are an excellent alternative to permanent indoor overhead cranes, which minimal investment in any new building by eliminating the need for increased foundational and structural considerations. In addition, they can be disassembled and moved to a new location easily.
Our designed Gantry Crane is with heavy loads up to 50t and spans can be over 40 meters. For fabrication and freight-transfer applications, it can move loads rapidly and smoothly.
Double Girder Gantry cranes are widely used for moving objects within shipyards, ports, rail yards, factories, and warehouses.
|
|
Double girder gantry crane with winch trolley 1.Lifting capacity up to 500ton 2.span is 12m to 35m 3.Lifting height up to 12m 4.applied outside warehouse or railway sideways 5.this kind of crane is composed of bridge, support legs, crane traveling organ, winch trolley, electric equipment, strong lifting winch, 6.crane traveling mechanisms are operated in the driver cabin or remote control 7.Power is supplied by cable or slide wire |
|
Truss-type double girder gantry crane 1.Lifting capacity up to 500ton 2.span is 12m to 35m 3.Lifting height up to 12m 4.applied to port, the freight yard, windy areas 5.adopts truss-type welded structure result to small windward side. (The wind-pressure is less than 125Pa.) 6.adopts closed air conditioning house with linkage platform control, so it has the advantages of broad vision, flexible control, comfort work, and high efficiency. |
|
|
|
U model double girder gantry crane 1.capacity is from 10 to 50 tons 2.span is from 18 to 32 m, 3.the working class is medium & heavy grade. in ports, mines, warehouse, docks and outdoor yards of the factory or on railways, nsists of the bridge structure, the traveling mechanism, the cart and the electric equipment 6.All movements of the crane are controlled in the cabin 8.the voltage and other data shall be proposed by user when filling the order form. |
|

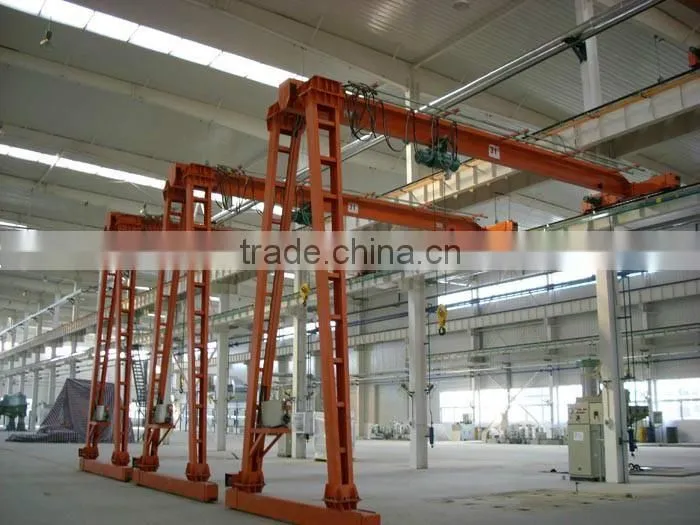

MHB Semi-gantry Crane 1.Load Capacity: 1 ton ~ 20 ton 2.Span: 2m~20m 3.Lift Height: Up to 9m 4.Work Duty: A3 5.Control Method: Pendent Control, Remote Control 6.Power Voltage: 380V, 50Hz, 3-phase, AC or others |
|
|
|
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint
10)Crane structure:steel box type
Technical data
1* |
Crane Working Level |
A7~A8 |
2* |
Rated Lifting Weight |
36---50t Under Hoisting Device |
3* |
Rail Torque |
18m |
4* |
Effective Hanging Arm |
6.5m Both Sides |
5* |
Lifting Height |
6--30m |
6* |
Max lifting Velocity |
Full load12m/min,NO Load20m/min |
7* |
Gantry Traveling Velocity |
Full Load≥55m/min |
8* |
Trolley Traveling Velocity |
Full Load≥60m/min |
9* |
Trolley Slewing Velocity |
1.01.5n/m |
10* |
Trolley Slewing Angle |
-10°+190° |
11* |
Max Wheel PressIn The Worst Working Condition |
≤25t |
12* |
Net Length Between Supporting Legs |
≥7.6m |
13* |
Anti-shaking Device |
Flexible Anti-shaking |
14* |
Hoisting Device |
20ft 40ft 45ft,50ft Fixed Lead Board Liquid-press Flexibility |
15* |
Way To Power Supply |
3-Phase 4Line Lead Power Supply: 380v/415v/440v 50Hz |
16* |
Maintenance Hoist |
Rated Lifting Capacity 2t or 5t Meet Maintenance Required |
High quality components
To ensure the high quality of our cranes, we choose the high quality components as shown below:
|
|
1.12 Months warranty when products leave the factory,or 12months warranty after installation and
commissioning in addition to the human damage factors.
2. Professional techincal staffs provide installation , commissioning and training services.
3.Delivery with English user manual ,parts manual,product certification and other relevant certificates.
|
|
