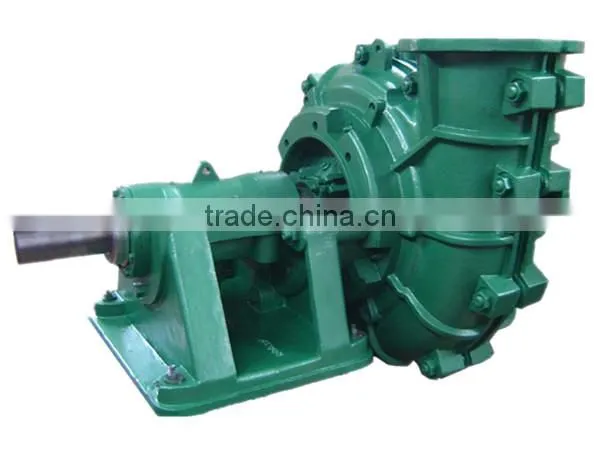

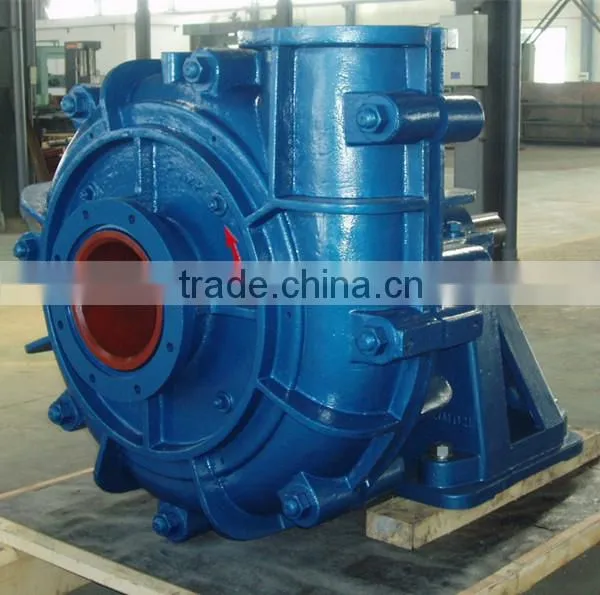

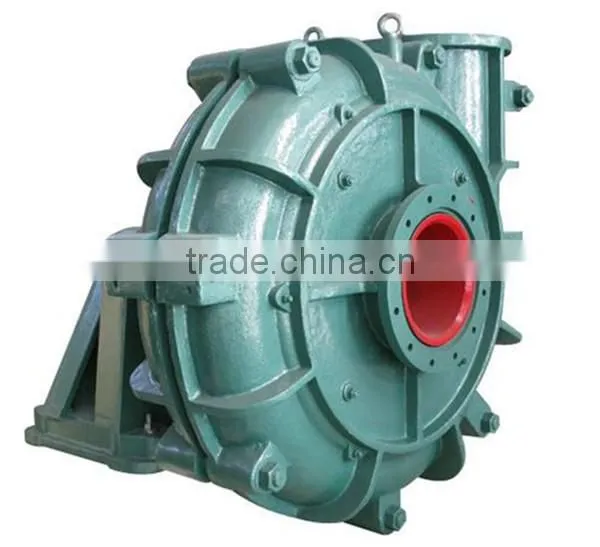

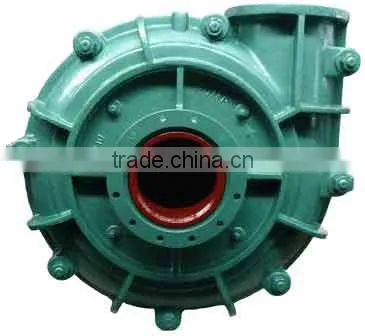

Help CenterHigh Quality 12/10ST Centrifugal Slurry Pump (Shijiazhuang Factory)
Related Products
12/10ST Slurry Pump is a single stage, single-suction centrifugal pump that is designed to transfort the strong abrasive and high concentration slurries or corrosive slurries in Power, Mining, Metallurgical, Coal, Petrochemical, Building Material, and other industrial applications. Design concentration for ash slurry and coal slurry pumping is 45% by weight, and 60% for ore slurry pumping. To achieve more efficacy, slurry pumps can be used by series connection for special application request. The discharge outlet can be adjusted at 8 directions with intervals of 45 degree.
STRUCTURE
1. Volut Liner |
2. Pump Casing |
3. Back Liner |
4. Cover Plate |
5. Front Liner |
6. Impeller |
7. Suffing Box |
8. Shaft Sleeve |
9. Shaft Sleeve |
10. Bearing Housing |
11. Pedestal |
12. Grease Cup |
13. Split Packing Gland |
14. Expeller |
15. Expeller Ring |
16. Packing |
17. Water Seal Ring |
18. Lip Seal Ring |
|
|
SPECIFICATIONS
- Flow rate / Capacity (Q): 936 to 1980M3/H = 260 to 550L/S
- Head (H): 7-68M
- Speed (N): 300 to 800R/Min
- Max. efficiency (η): 82%
- NPSH: 6m
- Impeller: 762mm
- Cane Nos.: 5
- Discharge outlet dia.: 10"
- Suction inlet dia: 12"
- Frame type: ST
PARTS MATERIAL
No. |
Parts |
Material |
1 |
Impeller |
High-chrome alloy: A05, A07, A49 |
Rubber | ||
2 |
Volute Liner |
High-chrome alloy A05, A07, A49 |
3 |
Front liner |
High-chrome alloy A05, A07, A49 |
Rubber | ||
4 |
Rear liner |
High-chrome alloy A05, A07, A49 |
Rubber | ||
5 |
Liner |
High-chrome alloy A05, A07, A49 |
6 |
Expeller |
High-chrome alloy A05, A07, A49 |
7 |
Shaft sleeve |
3Cr13 |
8 |
Water-seal ring |
High-chrome alloy A05, A07, A49 |
9 |
Shaft |
45#steel quenching And high temperature tempering |
10 |
Bearing housing |
Gray iron |
11 |
Expeller Ring |
High-chrome alloy A05, A07, A49 |
Rubber | ||
12 |
Front casing |
Gray iron or Ductile Iron QT500-7 |
13 |
Rear casing |
Gray iron or Ductile Iron QT500-7 |
14 |
Base |
Gray iron |
15 |
Bracket |
Ductile Iron: QT500-7 |
FEATURES
- slurry pumps can be used by series connection for special application request
- The discharge outlet can be adjusted at 8 directions with intervals of 45 degree
- Slurry pump's bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily. They can be removed completely when being repaired. Bearing assembly use grease lubrication
- High chromium alloy wet parts can stand stong abrosive
- Shaft seal is packing seal with expeller seal, that has excellent sealing performance
- A variety of drive modes( CL,CV,CR,ZL,ZV,ZR) can meet hard operation circumstances
PACKING

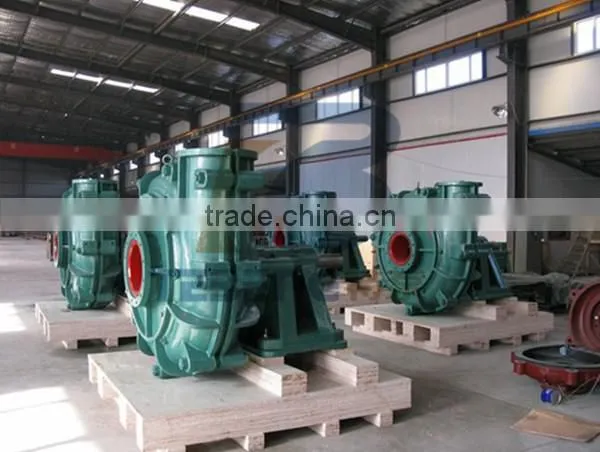

OUR FACTORY

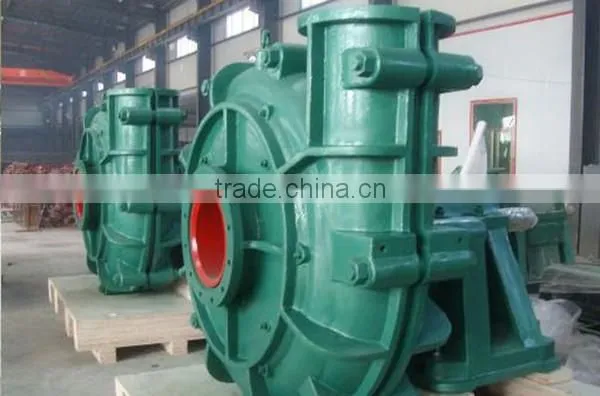

PRODUCTS SHOW
