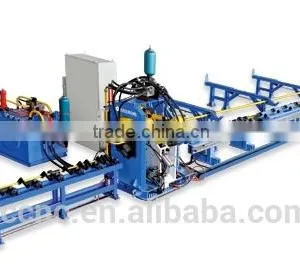

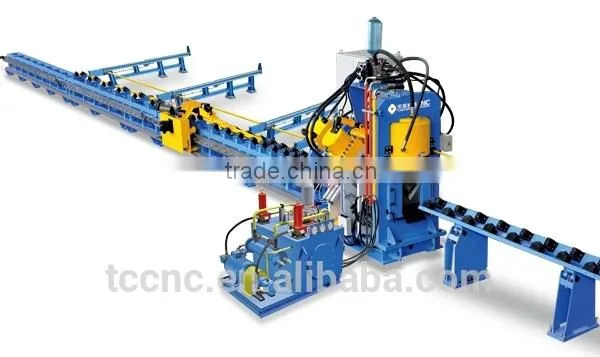

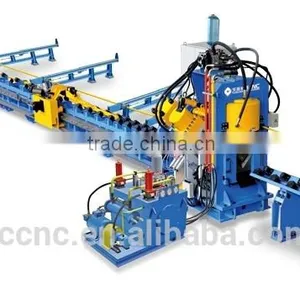

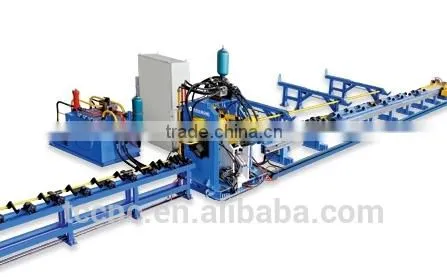

Punching Markign and Shearing Machine CNC Angle Line
US$ 80,000 - 115,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
TIANCHEN
Model Number:
APM1412
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC Marking Machine (DZ100, DZ70)US$ 20,000 - 30,000MOQ: 1 Set -
Punching Marking Shearing Machine Cnc Angle LineUS$ 75,000 - 95,000MOQ: 1 Set
-
CNC Punching, Marking and Single-Blade Shearing Angle MachineUS$ 85,000 - 115,000MOQ: 1 Set
-
Hydraulic Notching Machine for Angle Bars (CA200)US$ 20,000 - 50,000MOQ: 1 Set
-
Hydraulic Notching Machine for Angle Bars (CA140)US$ 20,000 - 50,000MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
TIANCHEN
Model Number
APM1412
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
punching markign and shearing machine CNC Angle line
PARAMETERS
- Ø Angle size (mm): ∠40x40x4-∠140x140x12
- Ø Max. punching diameter(mm):Ø26x12(σb≤630MPa)
- Ø Max. punching force (KN):950
- Ø Punch number per side: 3
- Ø The punching row per side: arbitrariness
- Ø Back mark positioning range:
Min. 15mm Max. 110mm
Back mark value for processing:
40×40~63×63 Min. back mark =15+angle thickness mm
70×70~100×100 Min. back mark =24+angle thickness mm
110×110~140×140 Min. back mark =28+angle thickness mm
- Ø No. of character group: 4
- Ø Dimension of characters (mm):(L x W x H x Qty.)16×10×19×16
- Ø Max. marking force (KN):1030
- Ø Max. length of the raw angle(m):12
- Ø Max. length of finished angle(m):10
- Ø Cutting mode: single blade shearing
- Ø Max. shearing force (KN):2030
- Ø No. of CNC axes:3
- Ø There are 4 sets of transverse conveyor, intermission infeed automatically.
- Ø Servo motor adopted for material infeeding and back mark adjusting.
- Ø The finished angle is rotated to one side by pneumatic power.
- Ø Process accuracy: Comply with the requirements of GB2694-2010.
- Ø Infeeding speed of X axis:0-40m/min, three speed can be selected (15, 30 & 40m/min)
- Ø Programming method: Keyboard, USB interface, CAD profile generate.
- Ø Total power (KW):About 31.2
- Ø Overall size (L×W×H)(mm):30000×6500×2700
- Ø Machine weight(kg): About 17000
- Ø Layout type:A or B
- Ø Local Working Temperature:10℃~40℃
