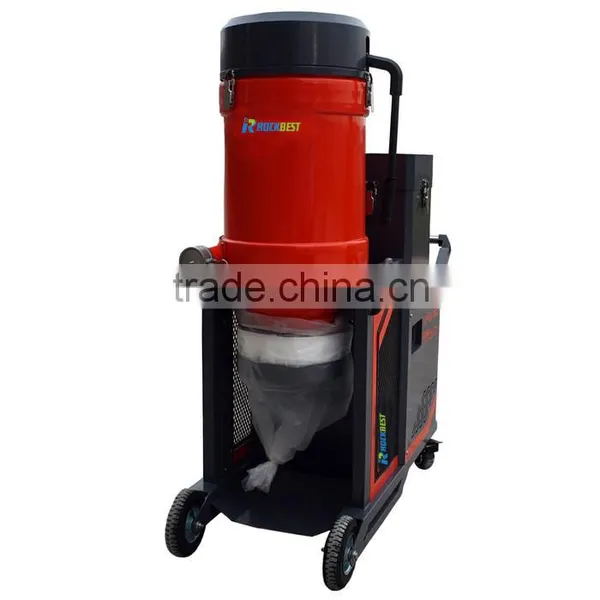

Dust collector cyclone for grinding machine
Model |
GVF30TD |
GVF40TD |
GVF55TD |
GVF75TD |
Voltage |
380V,50hz |
380V,50hz |
380V,50hz |
380V,50hz |
Power |
3 |
4 |
5.5 |
7.5 |
Max vacuum (mmH2O) |
2700 |
2900 |
3000 |
3200 |
Max airflow (m³/h) |
318 |
318 |
530 |
530 |
Noise (db) |
76 |
77 |
80 |
80 |
Filter bag area (m²) |
2.4 |
4 |
2.4 |
5.5 |
Filter cartridge (m²) |
2*3 |
2*3 |
2*3 |
3*3 |
Dimension(mm) |
1320*580*1640 |
1320*630*1640 |
1320*630*1640 |
1540*760*1760 |
Turbine motor ,allows 24h working continuous
Longopac sealed plastic bag installed ,which can realizes fast,drop down and dust free collection.
The star type prefilter can be cleaned from outside of the barrel by the jet pulse negative air pressure.
Two unit HEPA filter cartridge installed for the superfine dust filtration.
3" Camlock which allows the fast and convenient hose connection
Special designed for the floor grinding and polishing industry.With the characteristic as below: Strong suction, twostage filter unit,stable and reliable,space saving,flexible mobility and easy operation.
Through more than ten years manufacturing and marketing experience and toughening, our company has occupied the leading position in offering industrial cleaning equipment in china’s market, and got a good reputation in high quality, durable, reliable, and price competitiveness.
Now, we are looking for a close business partners in the oversea market, if you are interested in our product and have the sales channel in cleaning equipment, we are sure can help you to deeply exploit your market potential and get the win-win situation.
Special designed for the floor grinding and polishing industry.With the characteristic as below: Strong suction, two-stage filter unit,stable and reliable,space saving,flexible mobility and easy operation.
Apply to the three phase condition,which requires 24h working continuous,and superfine dust collection. It can works with the diamond surface grinders,and other floor grinding&polishing machines very well.
Suitable for the following grinders:
HTC500 SC450 SC500 DSM430 Lavina 25
Floorman 280/400 Blastrac/Diamatic 535 DSM530 Barracuda ×4
Send Inquiry to This Supplier
