JRC19F(4078) Miniature Relay-PCB Relay

JRC19F(4078) Miniature Relay-PCB Relay thumbnail-1
JRC19F(4078) Miniature Relay-PCB Relay photo-1
US$ 0.1 - 0.3 MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SENTAI
Model Number:
JRC19F(4078) Miniature Relay-PCB Relay
Contact Supplier Request Quote Chat Now
Zhejiang Sentai Electrical Apparatus Factory
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name SENTAI
Model Number JRC19F(4078) Miniature Relay-PCB Relay
Theory Voltage Relay
Usage PCB
Size Miniature
Protect Feature Sealed
Contact Load Low Power

Specifications

JRC19F(4078) Miniature Relay-PCB Relay
1)CE ROHS Attestation
2)The Most Comparative Price
3)Different type for Selection

-------------------------------------------------------------------

JRC19F(4078) Miniature Relay-PCB Relay

-------------------------------------------------------------------

JRC19F(4078) Miniature Relay-PCB Relay

JRC19F(4078) Miniature Relay-PCB Relay

-------------------------------------------------------------------



Contact Data:

Contact Form 2Z
Contact Ratings 1A 120VAC/240VDC
Max Switching Voltage 60VDC/240VAC
Max Switching Current 2A
Max Switching Power 120VA/30W
Initial Contact Resistance 50mΩ  Max  at 6VDC 1A
Life Expectancy Electrical 1×105      Operations (rated load)
Life Expectancy Mechanical 1×107      Operations (no load)

Specification

Insulation Resistance 100mΩ  Min  at  500VDC
Dielectric Strength Between Open Contacts 500VAC 50-60HZ (1minute
Dielectric Strength Between Contacts And Coil 500VAC 50-60HZ   (1 minute)
Operate Time 6ms max
Release Time 4ms   max
Ambient Temperature -30°Cto+70°C
Shock Resistance Malfunction 10G
Destruction 15G
Vibration Resistance 10-55Hz,1.5mm double amplitude
Ambient humidity 40-85% RH
Weight Approx 5g

Coil Data:

Rated Voltage (VDC) Coil Resistance Ω (±10%) Max Operate Voltage (VDC) Min Release Voltage (VDC) Max Applied Voltage (VDC)
0.2W 0.36W 0.45W
3 45 25 20 2.25 0.3 9.3
5 125 70 50 3.75 0.5 6.5
6 180 100 80 4.5 0.6 7.8
9 405 220 185 6.75 0.9 11.7
12 720 400 320 9 1.2 15.6
24 2800 1600 1280 18 2.4 31.2

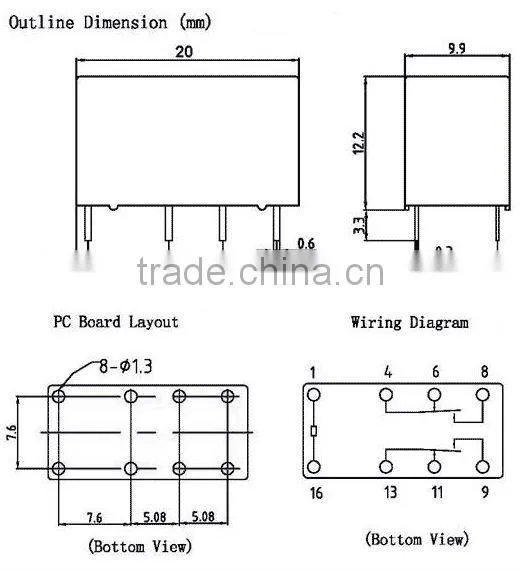

Outline Dimensions And Wiring Diagram

JRC19F(4078) Miniature Relay-PCB Relay
