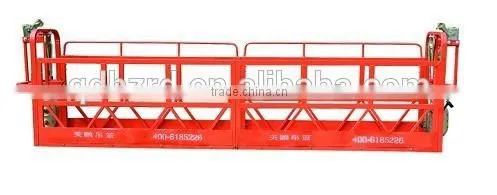

lifting hoist crane
Platform is an alternative to traditional scaffold , reduce labor intensity and improve work efficiency, and the new high operating equipment can be reused. Currently , the use of the gondola building has become a trend , has been widely recognized in the construction of high-rise multi-storey high building facades , and curtain wall installation , construction and maintenance of clean exterior insulation and other high-altitude operations.
At the same time can be used for large tanks , bridges and dams and other engineering operations. The use of this product , you can avoid scaffolding . So that greatly reduce the cost of construction , construction costs only 28 % of the traditional scaffolding , and a substantial increase in work efficiency. Suspended Platform flexible operation , the shift is easy, convenient and practical, safe and reliable.
Name |
Technical parameter |
||
Model |
ZLP800 |
ZLP630 |
|
Rated load |
800Kg |
630Kg |
|
Lifting speed |
8-10m/min |
8-10m/min |
|
Platform Dimension L×W×H(mm) |
7500×720×1300 |
6000×720×1300 |
|
Lifting Height |
100 m |
100 m |
|
Cable |
100 m |
100 m |
|
Steel rope (diameter) |
9.1mm |
8.3mm |
|

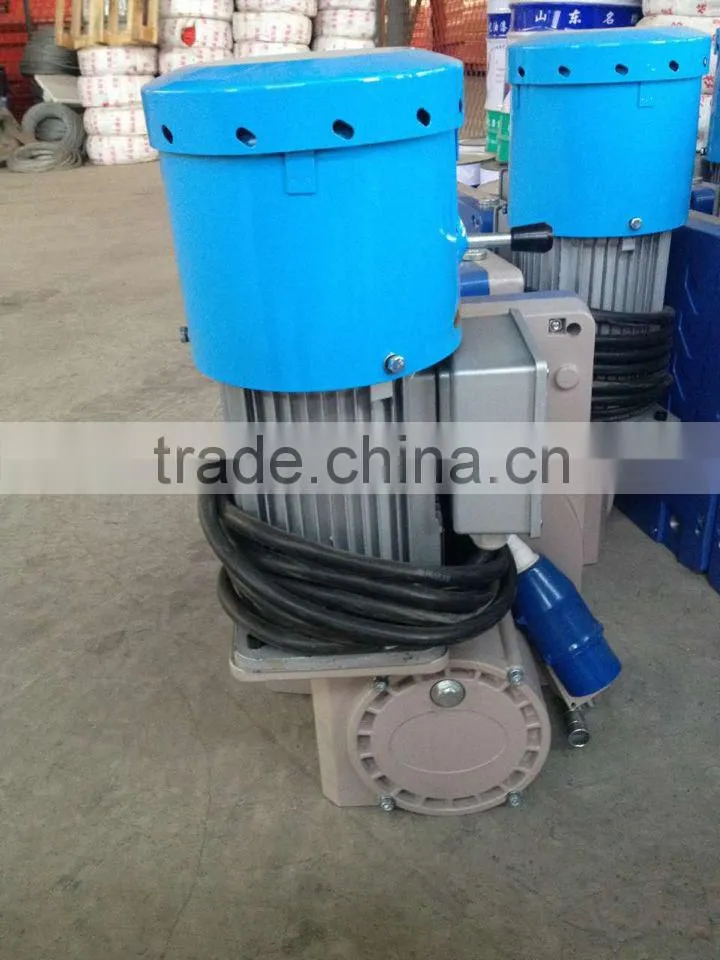

Hoist |
Power |
1.8KW*2 |
1.5KW*2 |
Voltage |
380V/50HZ |
380V/50HZ |
|
Safety lock |
Permission force of impact |
30KN |
30KN |
Locking Cable Angle |
3°~8° |
3°~8° |
|

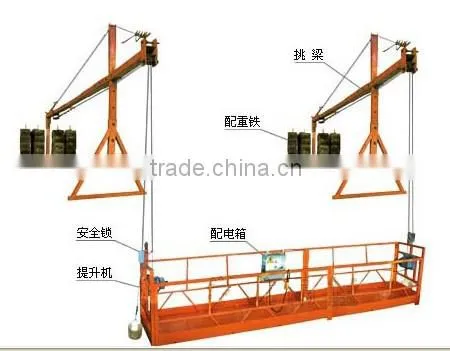

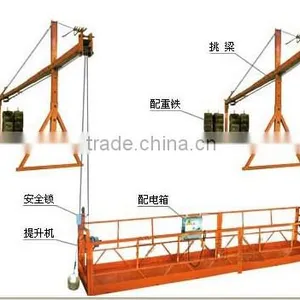

Suspension mechanism |
Front beam overhang |
1.3~.1.5m |
1.3~.1.5m |
Support adjustable height |
1.44~2.14m |
1.44~2.14m |
|
Counterweight |
1000KG |
1000KG |
|
20’ft container |
8 sets |
9 sets |
|
