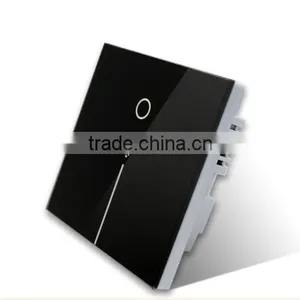

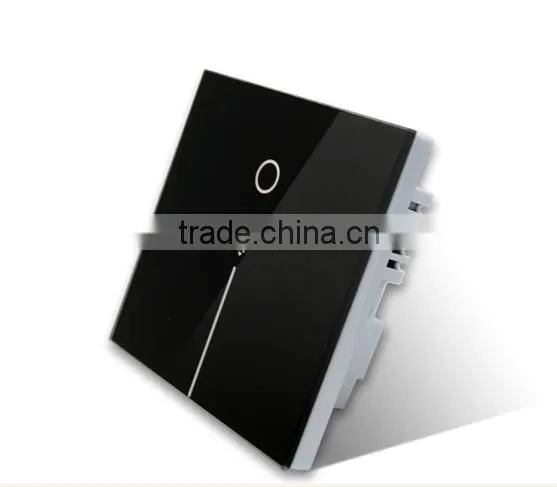

new products glass touch panel wifi switch for hotel
Front cover material:
Crystal glass
Rated voltage:
AC 100-250V 50/60Hz
Rated current:
3A/load
Load type:
Incandescent lamp; Energy saving lamp; Fluorescent lamp; LED., etc.
WI-FI standard:
802.11b/g/n
RF Performance:
Transmission power:+20dBm,11Mbps(CCK)
Receiver sensitivity:
-89dBm,11Mbps(CCK)
WI-FI Safe Mode:
WEP/WPA/WPA2(AES and TKIP-Personal)
Use life:
1,000,000 times
Rated load:
Resistive: 500W; Inductive: 200W
Temperature:
-25°C~+60°C
Relative humidity:
≤95%
Main Functions:
1.Large key design: Big button, It can operate the device by touch any position of the key.
2. Most convenient: Mobile phone control switch locally and remotely. No need gateway or host server ,control your home whenever and wherever you are!
3. Free setting: Connect mobile phone and switch in same WIFI, Press “Search” button on APP to search out all the switches and sockets at home to mobile phone automatically, No need to connect switches one by one.
4.Switch time setting: Each switch and each button of switch can be timed as you need.
5. Switch Scene setting: Set scenes as you like, press scene button to control many devices work at same time
The switch actuators are the modular installation devices, with 8 and 12 outputs for selection, using KNX connection terminals to connect to the system. The switch actuators need to connect an extra 230V AC power supply and provide to 4 outputs. It is able to use the Engineering Tool Software ETS (ETS2 v1.3 or later) with a VD2/VD3 file to allocate the physical address and set the parameters.
If the 230V AC power supply is not connected, all LEDs are flashing for indicating output state on the device.
It is able to switch from 4 to 8 independent electrical AC loads or three-phase loads and 4 electrical AC loads with the same phase of the 230V AC power supply by the switch actuators with maximum output of 6A per output and manual switch, as well as visible switching status via LED indication.
There are same following programming functions for each output:
w time function: on/off delay
w staircase function with the warning and adjustable staircase lighting time
w scene, preset control: 8bit/1bit
w logic operation: AND, OR, XOR, gate function
w status response
w forced operation and safe function
w threshold function setup
w control of electro thermal valve function
w manual operation switch
w indication of switch status (contact position)
Shipping way:
