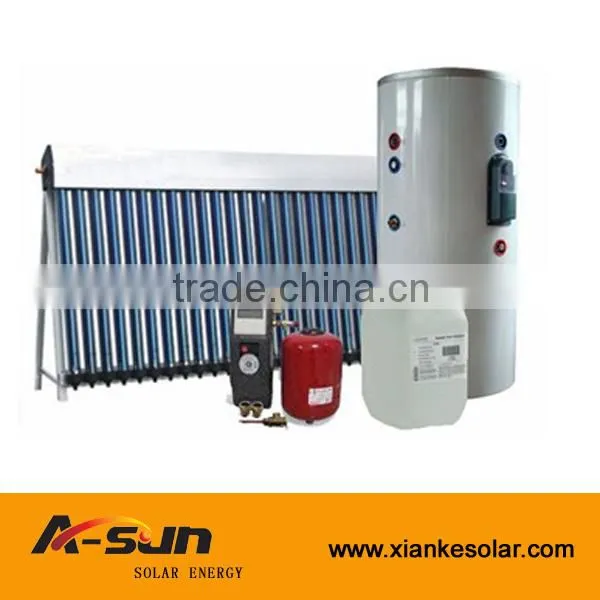

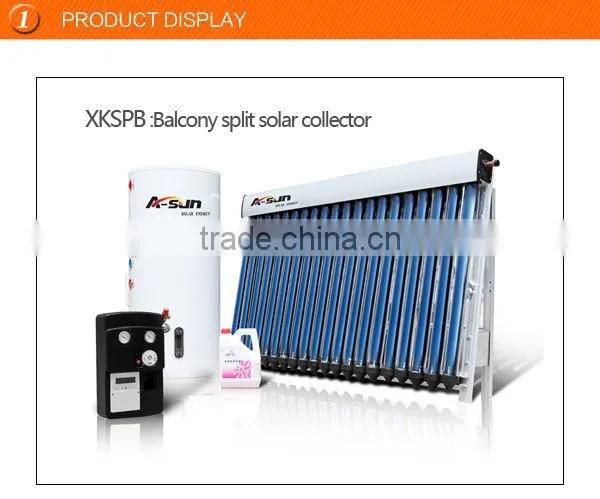

Balcony split solar system and pressurized solar water heater
Feature:
1. there is no water in the vacuum tube, the Balcony split solar system can work
as usual if one tube is broken.
2. Balcony split solar system operation pressure is 0.7 Mpa, and the test pressure
is 1.0 Mpa.
3. Balcony split solar system is used with existed tank in the basement.

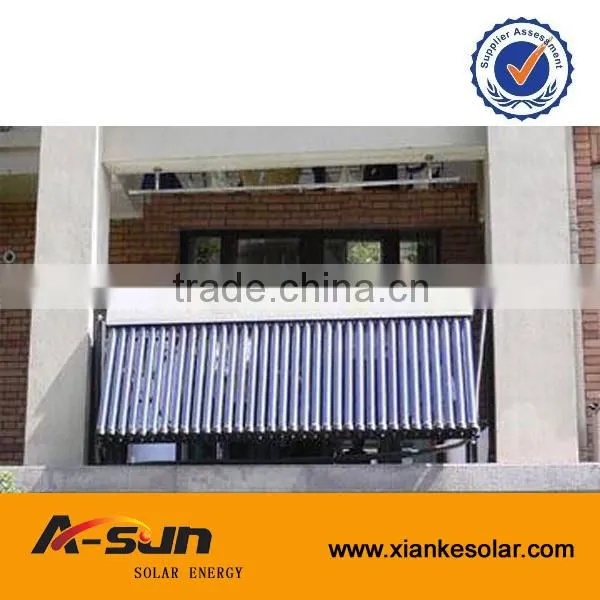

4. Balcony split solar system could be save place and simple to install on the balcony,
it is harmoniously blended with architecture.
Balcony split solar system and pressurized solar water heater

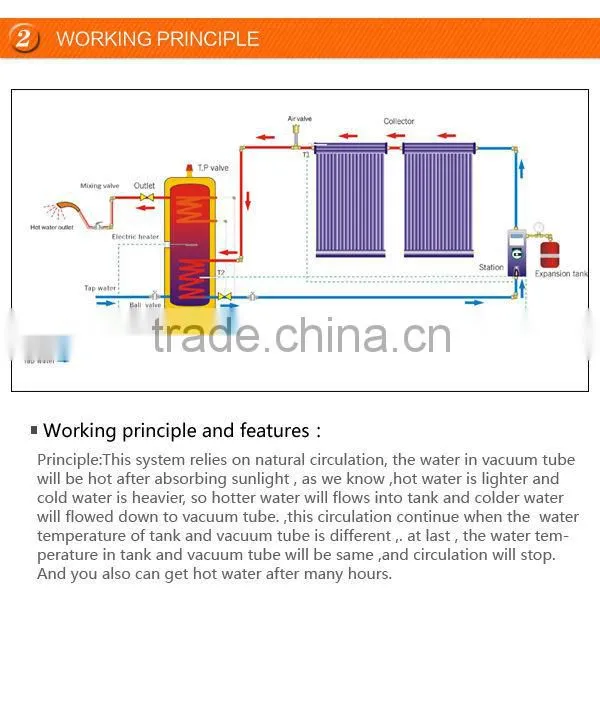

Principle:

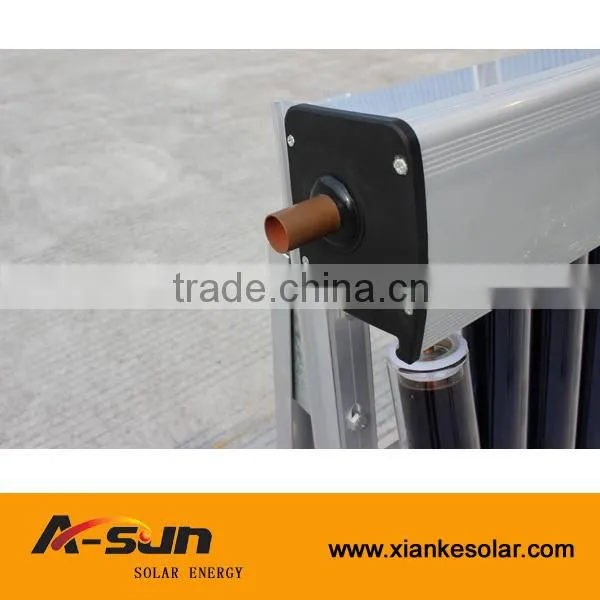

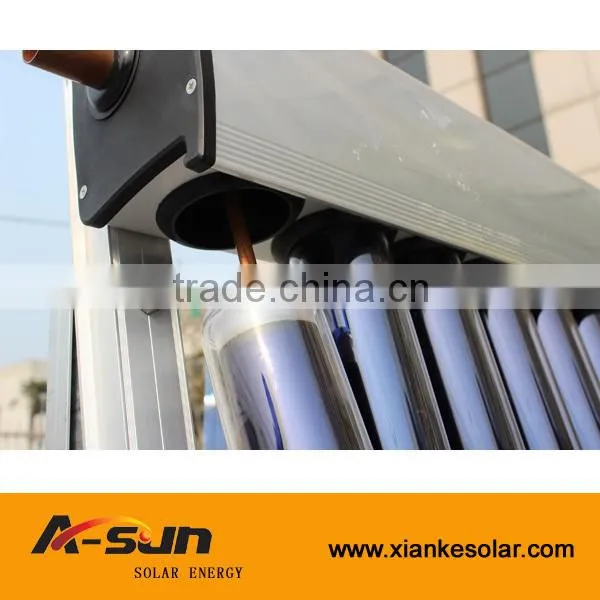

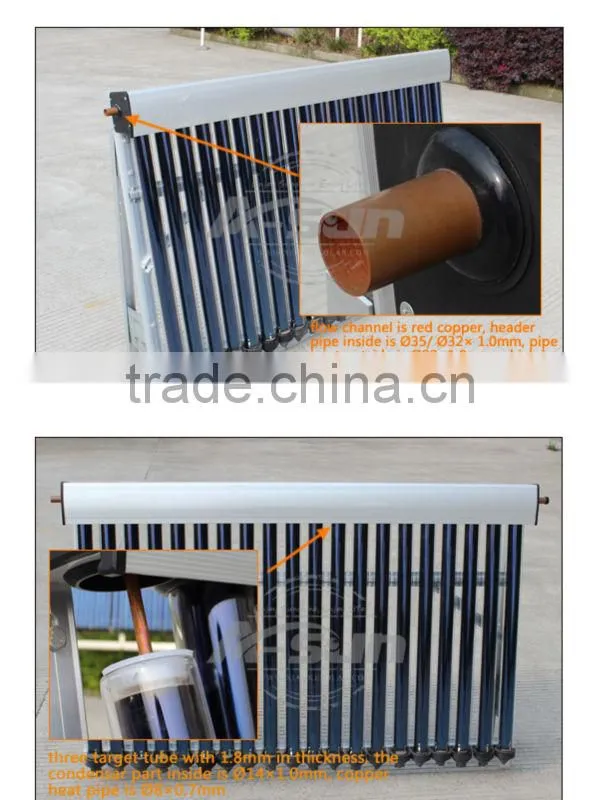

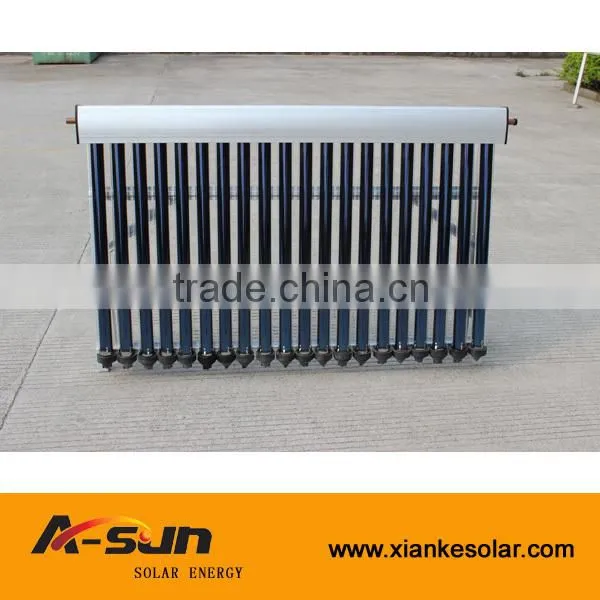

Vacuum tube heat pipe solar collector: vacuum tube absorb sunlight then transfer
heat to manifold by supper-conduct heat pipe which has heat transfer medium in it ,

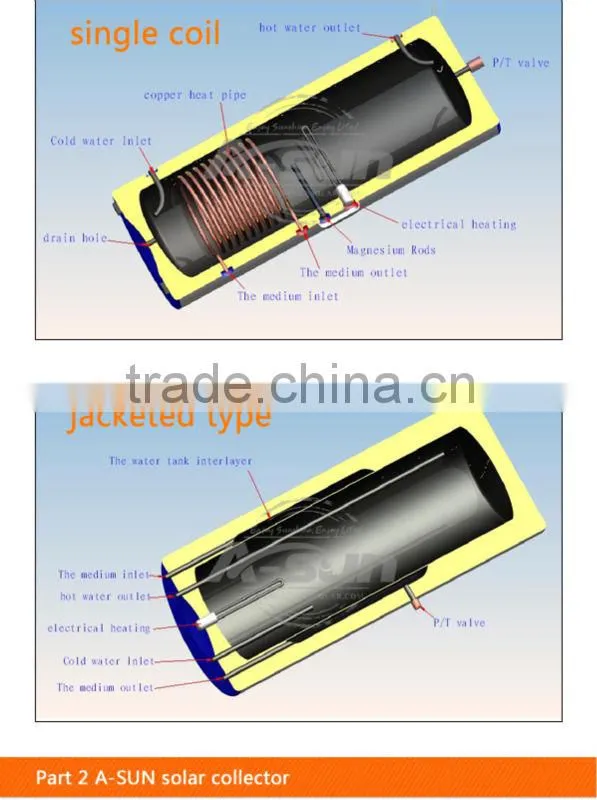

and make the water in manifold be hot. The medium between the water tank and
vacuum tube begin to circulate because of drop, then the medium flow into the jacket

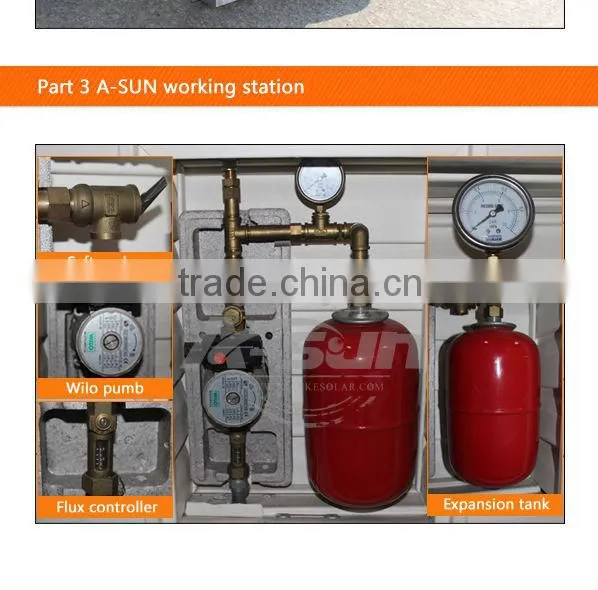

layer and heat the tank water. The circulation pump can be used If need high efficiency.
| A-sun solar water heater of Balcony pressurized solar heating system | ||||||||
| Model | Tube Quantity |
Pressure tank(L) |
Volume(m3) | |||||
| Pressure tank(m3) |
tube with heat pipe (m3) | Frame (m3) |
Manifold (m3) | Solar station (m3) | Total (m3) |
|||
| XKSPB-20 | vertical- 58*850 |
80L | 0.271 | 0.1 | 0.031 | 0.032 | 0.05 | 0.48 |
| XKSPB-25 | vertical- 58*850 |
100L | 0.338 | 0.123 | 0.038 | 0.039 | 0.05 | 0.59 |
| XKSPB-30 | vertical- 58*850 |
120L | 0.454 | 0.146 | 0.046 | 0.047 | 0.05 | 0.74 |
| XKSPB-10 | horizontal- 58*1800 |
80L | 0.271 | 0.11 | 0.016 | 0.0175 | 0.05 | 0.48 |
| XKSPB-12 | horizontal- 58*1800 |
100L | 0.338 | 0.135 | 0.019 | 0.02 | 0.05 | 0.56 |
| XKSPB-15 | horizontal- 58*1800 |
120L | 0.454 | 0.164 | 0.024 | 0.025 | 0.05 | 0.72 |
