Specifications

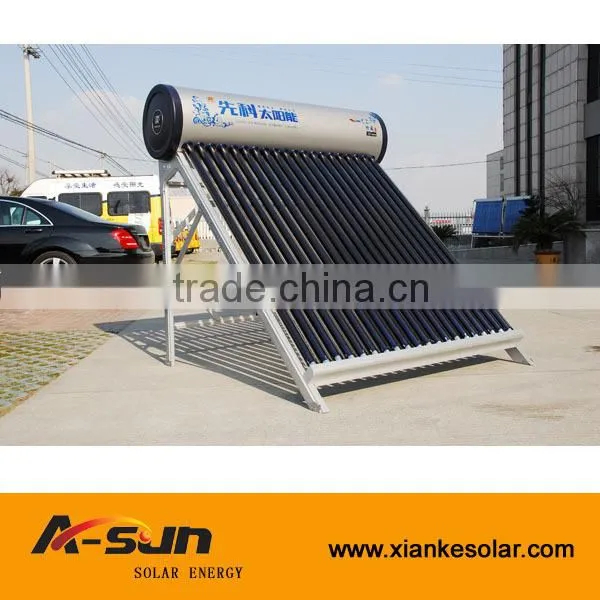

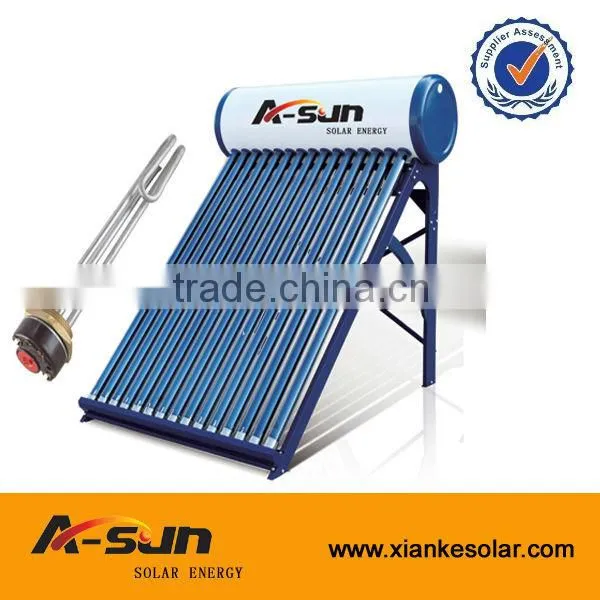

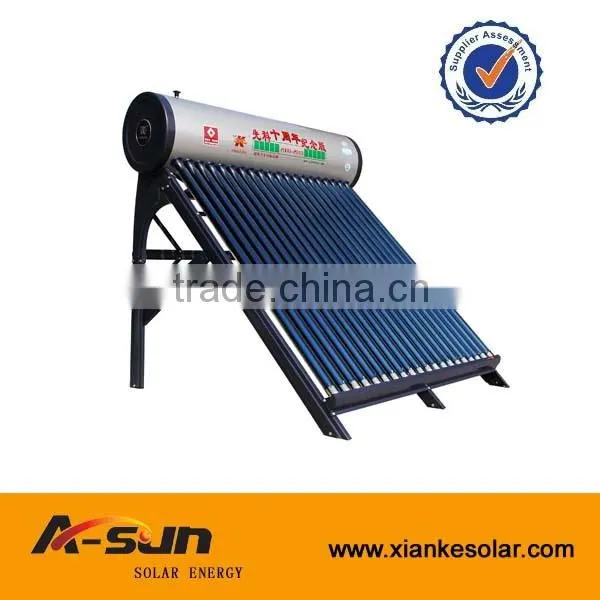

Unpressure thermosyphon integrated solar energy water heater1. easy installation
2.high efficiency by 95%
3.low cost
Non-pressure solar water heater
Feature:
1. the coating inside of the vacuum tube absorbs the solar energy.
2. water inside of the vacuum tube is heated by the coating layer.
3. the vacuum tubes insert into the non-pressure tank, so the hot water
and cold water can circulate by themselves because of different density.
4. non-pressure tank with PU layer keeps the water hot and store the water.
5. open loop type, hot water is supplied to the shower room because of water drop.
6. easy to install and high heat transfer rate over 95%.
7. if add the feeder tank, it could load the water automatically and reduce
the water pressure.
8. it is also applied in the water supply system with big storage tank and widely
used in Middle East, South America.
| A-sun Non-pressure solar water heater | ||||||
| Model |
Tube Quantity |
Tank capacity |
Volume(m3) | |||
| Frame(m3) | vacuum tube (m3) | Tank(m3) | Total | |||
| XKNP47-1500-15 | 15 | 90L | 0.061 | 0.088 | 0.253 | 0.4 |
| XKNP47-1500-18 | 18 | 108L | 0.061 | 0.103 | 0.295 | 0.46 |
| XKNP47-1500-20 | 20 | 120L | 0.061 | 0.114 | 0.324 | 0.5 |
| XKNP47-1500-24 | 24 | 144L | 0.07 | 0.134 | 0.38 | 0.59 |
| XKNP47-1500-30 | 30 | 180L | 0.089 | 0.175 | 0.465 | 0.73 |
| XKNP58-1800-15 | 15 | 150L | 0.066 | 0.159 | 0.332 | 0.56 |
| XKNP58-1800-18 | 18 | 180L | 0.066 | 0.198 | 0.387 | 0.65 |
| XKNP58-1800-20 | 20 | 200L | 0.066 | 0.217 | 0.425 | 0.71 |
| XKNP58-1800-24 | 24 | 240L | 0.07 | 0.263 | 0.5 | 0.83 |
| XKNP58-1800-30 | 30 | 300L | 0.087 | 0.319 | 0.612 | 1.02 |
| XKNP58-1800-36 | 36 | 360L | 0.105 | 0.394 | 0.725 | 1.22 |
Pre-sale:
1.make a report about the products manufacture by pictures and related words,
especially the technique that meet the client’s request.
2.When the client visits our company, we can also write a report to ensure the
production is same as client’s demand.
3.We’ll be responsible for the products loading, and send the clients photos.
After sales:
1.3D installation CD will be provided.
2.Special service for VIP client.
3.Warranty: 3 years for the water tank and 5 years for the vacuum tube.
4.1% vacuum tube for free, screw and silicone ring for free.
