Help CenterPre-heated Pressurized Solar Water Heater With 35m Copper Coil From A-sun Solar
Related Products
-
Compact Exchanger Pressurized Copper Coil Preheated Solar Water HeaterUS$ 250 - 520MOQ: 1 Set -
Compact Non Pressure Copper Coil Solar Energy Water HeaterUS$ 300 - 800MOQ: 1 Set
-
China Low Cost Pre-heating Copper Coil Solar GeyserUS$ 300 - 800MOQ: 1 Set
-
Vacuum Tube Pre-heated Integrated Pressurized Solar Heating SystemUS$ 250 - 520MOQ: 1 Set
-
Non-pressurize Copper Coil Thermosiphon Vacuume Tube Solar Water Heater SystemUS$ 250 - 520MOQ: 1 Set
Specifications
Advantage pre-heated solar water heater:1.it is pre-heated and heat exchange process.

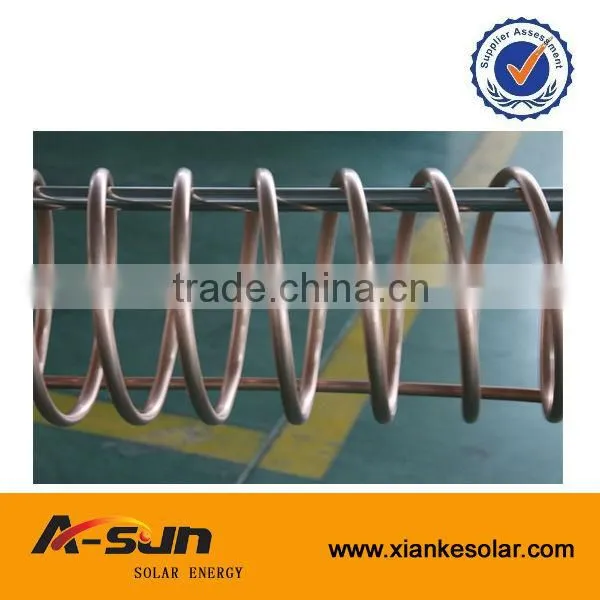

2.with 35m copper coil inside the tank
This product is our Exclusive design, successfully applied for a patent

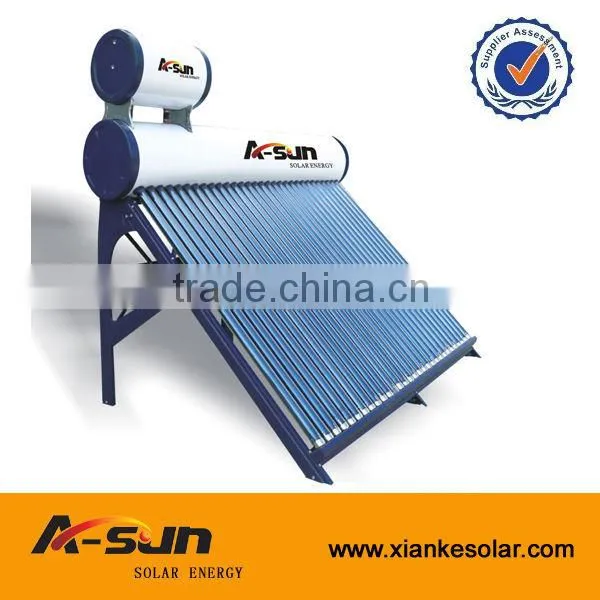

Pre-heated pressurized solar water heater with copper coil inside
Feature:
1. the cooper coil inside of the non-pressure tank can bear the
pressure 0.7 Mpa during the operation.
2. there is with feeder tank which can load the water automatically.
3. the vacuum tube heat the water and supply hot water to the tank,
then the water in the copper coil can be heated by the hot water in the water tank.
4. it is pre-heating and heat exchange process.
5. only if the water in the tank is hot, more hot water will be got and
exceed the capacity limit of the water tank.
6. could be always use clean hot water from the copper coil.
7. you can use the hot water inside of the copper coil or the hot water in the tank.
Pre-heated pressurized solar water heater with copper coil inside
Principle:
This system also relies on natural circulation. There is copper coil in the water tank,
which is used to exchange heat and get hot water. Tank just works as boiler,
which will supply heat to copper coil. When water goes through copper coil,
it will get heat from hot water via copper coil.
| A-sun Pre-heating solar water heater with assistant tank | ||||||
| Model | Tube Quantity |
Tank capacity |
Volume(m3) | |||
| Frame (m3) |
vacuum tube (m3) | Tank (m3) |
Total | |||
| XKPH58-1800-15 | 15 | 150L | 0.0785 | 0.159 | 0.332 | 0.57 |
| XKPH58-1800-18 | 18 | 180L | 0.0785 | 0.198 | 0.387 | 0.66 |
| XKPH58-1800-20 | 20 | 200L | 0.0785 | 0.217 | 0.425 | 0.72 |
| XKPH58-1800-24 | 24 | 240L | 0.0844 | 0.263 | 0.5 | 0.85 |
| XKPH58-1800-30 | 30 | 300L | 0.104 | 0.319 | 0.612 | 1.03 |
| XKPH58-1800-36 | 36 | 360L | 0.125 | 0.394 | 0.725 | 1.24 |
| Assistant tank | 20L | 35*35*50 | 0.061 | |||
| 50L | 45*45*69 | 0.14 | ||||
