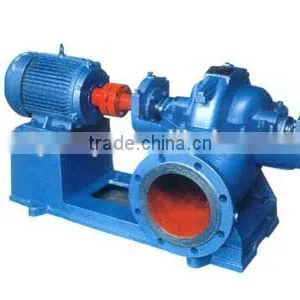

Horizontal Centrifugal Water Pump
Application:
It is widely accepted in the fields of mine, coal, metallurgy, electric power, building material and others. In addition, products of this series are categorized as the abrasive resistance slurry pump due to the heavy base and wear resisting parts.
Feature:
The mining slurry pump is horizontal, single suction, single-stage, cantilever, double casing centrifugal slurry pumps. The discharge direction can be set at any one of 8 directions, and the angle interval of the 8 choices is 45°. The shaft seal has three modes which are packing seal, expeller seal and mechanical seal.
Operation condition:
Pump high-hardness, strong-corrosion and high-concentration liquids that contain suspended solid particles, such as finished ores, refuse ores, ashes, cinders, cements, mud, mineral stones and etc.
Liquid temperature up to 90°C
Max.Pressure:12bar
Construction
Pump Body: Cast Iron/Grey Iron
Front Cover: High Chrome alloy/ Rubber lined
Impeller: High Chrome alloy/ Rubber lined
Mechanical Seal: Carbon/Ceramic/Stainless Steel
Motor Housing: Alloy Aluminum
Shaft: Carbon Steel/Stainless Steel/High Frequency Wedding Shaft
Insulation: Class B / Class F
Protection: IP54 / IP55
Cooling: water cooling
| SH Series Metal Slurry Pump Specifations | ||||||||
| Pump Model |
S×D (inch) |
Allowable Max. Power |
Clear Water Performance | |||||
| Capacity Q | Head H(m) |
Speed n(r/min) |
Max.Eff. η% |
NPSH (m) |
||||
| m3/h | l/s | |||||||
| SH/25C | 1.5×1 | 30 | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 |
| SH/50D | 3×2 | 60 | 68.4-136.8 | 19-38 | 25-87 | 850-1400 | 47 | 3-7.5 |
| SH/75E | 4×3 | 120 | 126-252 | 35-70 | 12-97 | 600-1400 | 50 | 2-5 |
| SH/100F | 6×4 | 560 | 324-720 | 90-200 | 30-118 | 600-1000 | 64 | 3-8 |
| SH/100S | 6×4 | 560 | 468-1008 | 130-280 | 20-94 | 500-1000 | 65 | 4-12 |
|
Remark: 1.Capacity range recommended:50%Q’≤Q≤110%Q'(Q' Appropriate to capacity at highest efficiency point). 2.NPSH: appropriate to point Q recommended at highest speed. | ||||||||

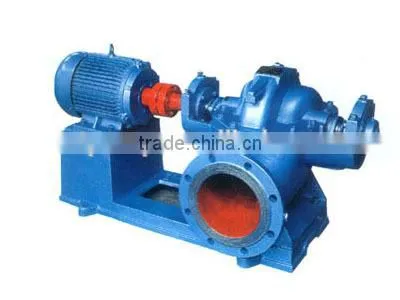

Pictures
