Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > High Pressure Centrifugal Coal Mining Slurry Pump

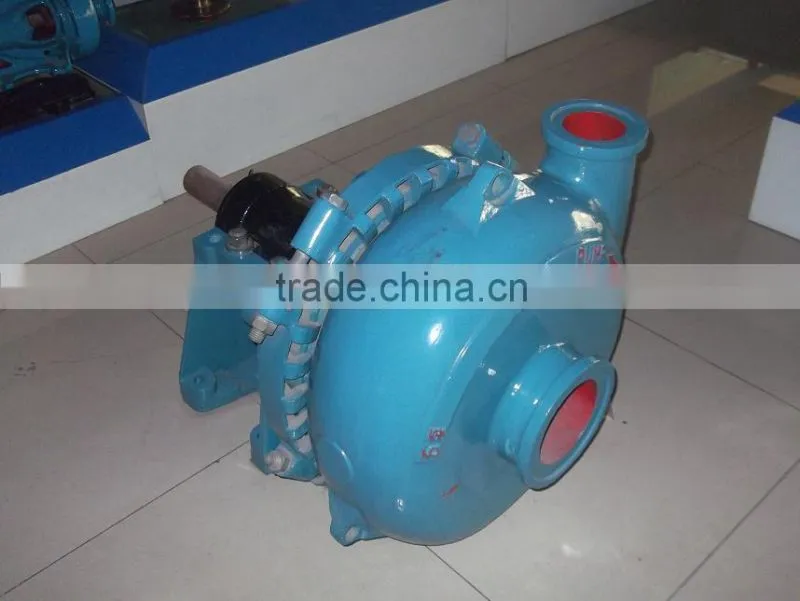

High Pressure Centrifugal Coal Mining Slurry Pump

US$ 200 - 18,568 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Brand Name:

NNT

Model Number:

G G(H)

Contact Supplier Request Quote Chat Now

Shijiazhuang Nainater Slurry Pump Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin Xingang

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Brand Name NNT

Model Number G G(H)

Theory Centrifugal Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Submersible

Specifications

high quality and cheap price

Specifications

1,Mining Slurry Pump and Mud Pumping Machine
2,Large flow,high head
3,Chrome alloy pump
4,Spare Parts

Mining Slurry Pump and Mud Pumping Machine

Prodct overview

Features:
1. It uses modern CAD design method, and has excellent hydraulic performance, high efficiency, and low wear rate;
2. It has wide runner, good anti-clogging performance, and excellent cavitation performance;
3. It uses expeller and filler combined seal and mechanical seal, ensuring that the slurry doesn't leak;
4. The reliability design greatly improves mean time between failures (MTBF) of complete machine;
5. It uses thin oil lubrication metric bearing, and rationally sets lubrication and cooling system to ensure that the bearing operates at low temperature;
6. Flow passage components are made of special materials, so they have good wear resistance and corrosive resistance; after special processing, they are used for seawater dusting, and seawater and salt mist electrochemical corrosion conditions;
7. In allowable pressure range, it can be used in series in stages, and allowable maximum working pressure is 3.6Mpa.

Model Meaning:

14/12 G—— G

14—— suction discharge diameter (inch)

12—— discharge diameter (inch)

G —— frame form

G —— gravel pump

Specifications :

Discharge size: 4 ~ 24 inches(100mm ~ 610mm)

Flow capacity: up ot 12600 m ³ /h(55440gpm)

Head: up to 92 m(302 foot)

Max allowable particle size: 380mm

Models:

Model	Outlet diameter mm	Speed r/min	performance parameter			Maximum power kw	Impeller diam mm	Max. Partic Size mm
			flow m³/h	Head m	efficiency (%)
			flow m³/h	Head m	efficiency (%)
6/4D-G	100	600-1400	36-250	7-56	50	60	378	82
8/6E-G	150	800-1400	180-540	12-52	60	120	378	127
10/8F-G	200	500-1000	180-820	12-56	60	260	533	178
12/10G-G	250	400-850	360-1200	12-60	65	600	667	220
14/12T-G	300	300-700	700-2700	8-70	65	1200	864	241
8/6F-GH	150	500-1100	520-900	18-80	70	260	610	140
10/8S-GH	200	500-950	750-1300	20-75	70	560	686	180
12/10G-GH	250	350-700	1400-2700	10-60	70	600	915	210

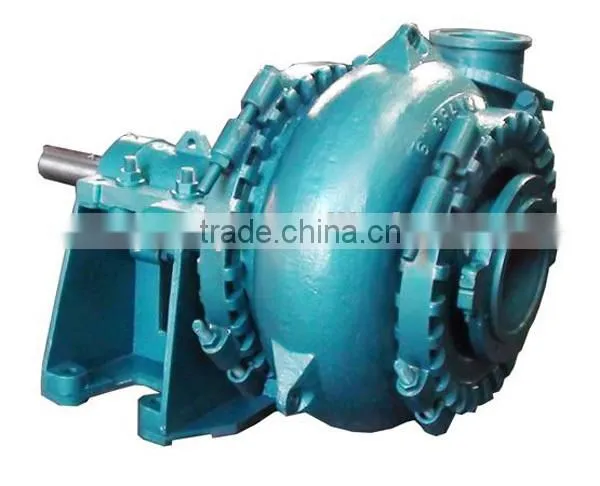

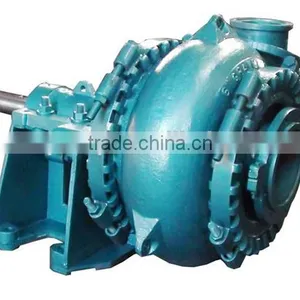

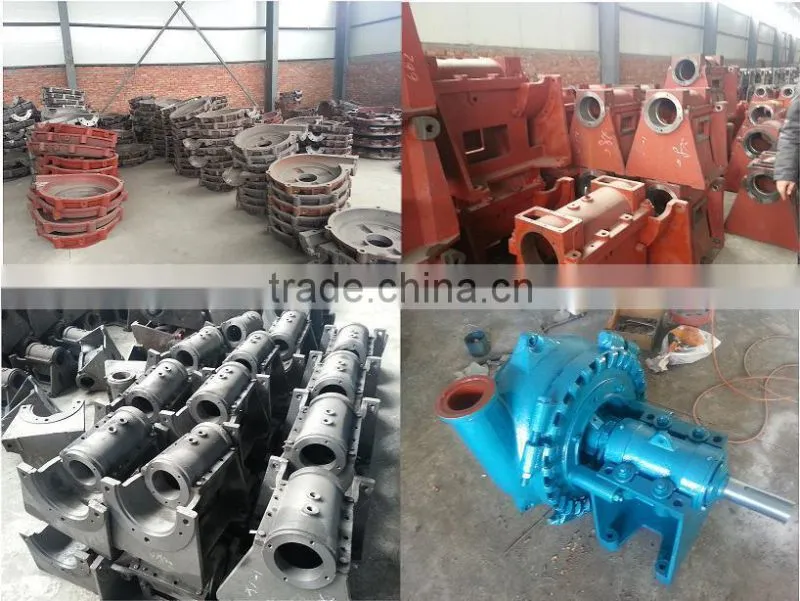

Product Picture

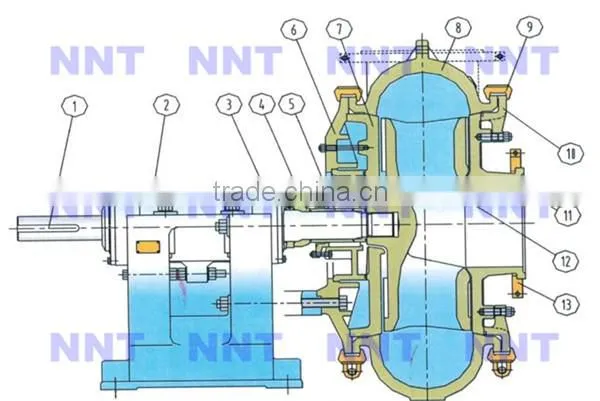

1.Shaft 2.Bracket 3.Disassembled Ring of Impeller 4.Locating Sleeve 5.Sealing Assembly 6.Connect Plate 7.Frame Plate Liner Insert 8.Pump Body 9.Clip 10.Cover Plate 11.Throat Bush 12.Impeller 13.Flange

Product Applications

1, Gravel pumps are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.

2, Dredging, suck gravel in the dredger, suck gravel in the course of rivers
3, Delivering slurries in mining, explosive sludge in metal smelting
4, Type GH pumps are of high-head ones
