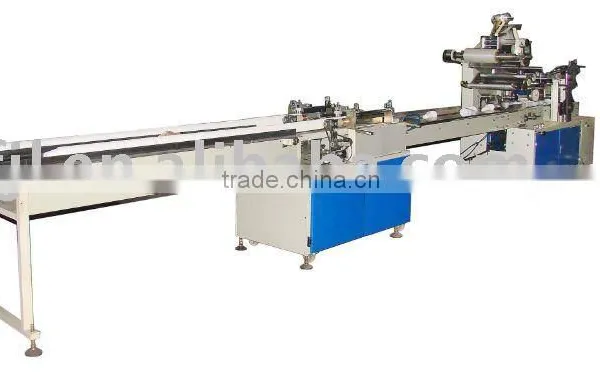

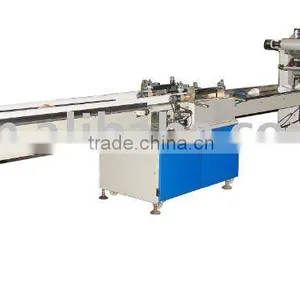

Help CenterFJL-450 Plastic Cup Packing Machine With Counting
Related Products
Specifications
FJL-450 cup packing machine controlled by PLC, special for packing cup together in one plastic bag with automatic counting.Features
1. Compact structure, stable function and simple operation.
2. Double frequency converter controller, length of package will cut immediately once setting, adjustment needless, saving time and film.
3. It adopts imported electric appliance, touch man-machine interface, convenient parameter setting.
4. Self-checking function, trouble can be read easily. High sensor photoelectric color chart tracking, make the cutting position more correctly.
5. Dependant temperature PID controlling suitable for various materials of packaging men brane. Position stop function, no adhesive and no waste of membrane.
6. Clean rotation system, more reliable operation and more convenient maintenance.
7. All the controlling operates by the software, convenience for function adjustment and technical up grading.
8. Complete machine uses simens PLC and operates accurately and steadily.
9. Photoelectricity tracing and wide range of pouches length selection. (80mm—400mm).
Note: This machine will help you to reduce the labour force cost and increase production efficiency.
Packing parts
Technical parameter
Max. film width |
450mm |
Max. packaging capacity(According to its material for fix) |
120 pcs/min |
Suitable film thickness |
0.04-0.06mm |
Length of bags |
60-300mm |
Packaging width |
30-16-mm |
Packaging height |
≤ 80mm |
Total power |
2.8 kw |
Overall dimensions |
4200×980×1450mm |
Weight |
800 kg |
