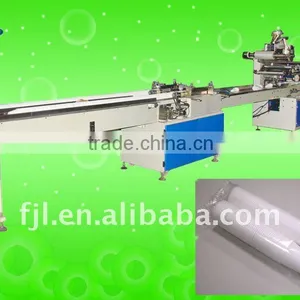

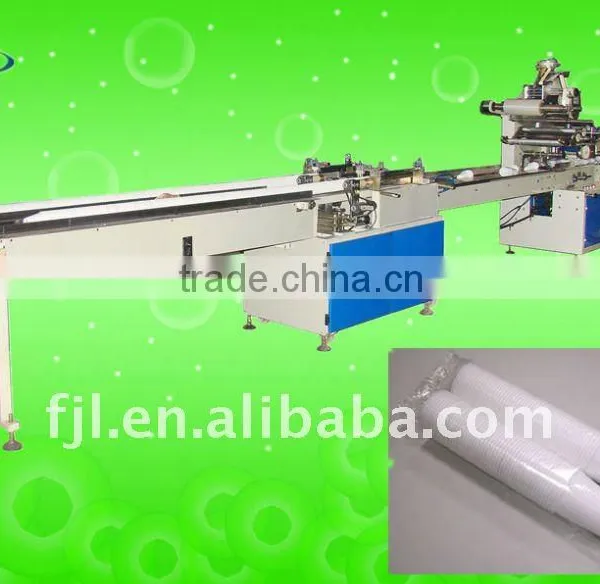

Full-Automatic Cup Count and Stack Machine
Specifications
This is machine is special for counting and packing cups automatically.Features:
- This machine adopts PLC and servo motor to control. The main function includes stacking, counting, cup feeding, packing automatically. We could make machine with code printing, date printing according to customer’s requirement.
- This machine has function of double sides counting, which can speed up the packing speed.
- The production speed could be adjustable from one to 100 pieces per bag.
Main Technical Parameter:
Max. Film Width |
450mm |
Max. Packing Capacity |
10—100cycle/min |
Suitable Film Thickness |
0.03—0.06mm |
Length of Bag |
100—550mm (according to client’s demand) |
Packing Width |
50—160mm |
Packing Height |
≤100mm |
Total Power |
3.5kw 220v |
Overall Dimension(L*W*H) |
7000*900*1600mm |
Weight |
1200kg |
Note: We’ll make the machine according to your samples.
Samples:
