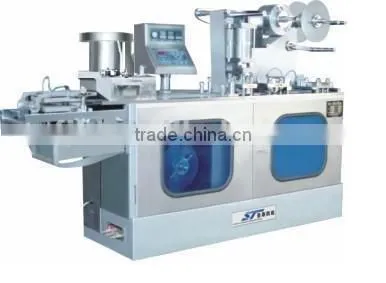

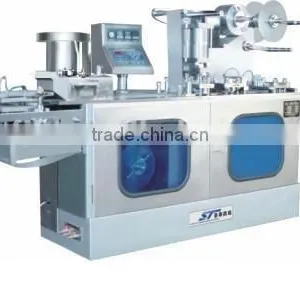

Help CenterCE Certified Flat Plate Auto. Al-Al Blister Packing Machine (DPB-140B)
Related Products
-
CE Certified Al-Al Blister Packing Machine (DPB-250B)US$ 1 - 2MOQ: 1 Set -
DPB-140 CE Certified Flat Plate Auto. Blister Packing MachineUS$ 1 - 2MOQ: 1 Set
-
CE Certified Flat Plate Auto. Blister Packing Machine (DPB-250E)US$ 1 - 2MOQ: 1 Set
-
FJL CYJ-150 Model Medicine PolisherUS$ 1 - 2MOQ: 1 Set
-
Model GFWZ-N (Z) 60B Soft Tube Filling and Sealing MachineUS$ 1 - 2MOQ: 1 Set
Specifications
It is suitable for packing capsule, tablet, big honey pill, candy, liquid, ampoule, syringe, facial mask...USAGE:
Industry: Pharmacy, Healthcare, Foodm, Cosmetics, Medical Equipment Industry, etc.
Packed Products: Capsule, Tablet, Big Honey Pill, Candy, Liquid, Paste, Syringe, Facial Mask and Other Irregular Shape
Packing: Al-plastic, Al-Al, Paper-plastic Package
MAIN TECHNICAL PARAMETER (DPB-250E):
Cutting Frequency (Times/min): Al-AL 6-25
Al-plastic 6-50
Paper-plastic 6-50
Max Forming Areas And Depth (mm): Al-plastic 130×130×26
Al-Al 130×130×14
Travel Range (mm): 40-140 (Can Be Lengthened To 180mm As User's Requirements)
Standard Plate (mm): 80×57 (Can Be Manufactured As User's Requirements)
Air Pressure (Mpa): 0.4-0.6
Air Supply: ≥0.2m3/min
Total Power: 380V/220V 50Hz 3.6kw
Main Motor Power (kw): 0.75
Forming Aluminum (mm): 0.085-0.1×140
PVC Hard Pieces (mm): 0.15-0.5×140
PTP Aluminum Foil (mm): 0.02-0.035×140
Dialysis Paper (mm): 50-100g×140
Mould Cooling: Tap Water Or Circulating Water
Overall Dimensions (mm): 2300×560×1410 (L×W×H)
Weight (kg): 700
WORKING PROCEDURE: Blister Forming-Feeding-Heat Sealing-Batch Number Printing-Cutting-Finished Products Output.
