Specifications
material:bops/hips/ps/pvc/petcombines sending, heating, forming and cutting
three operation models:manual. semi-auto, auto
Usage

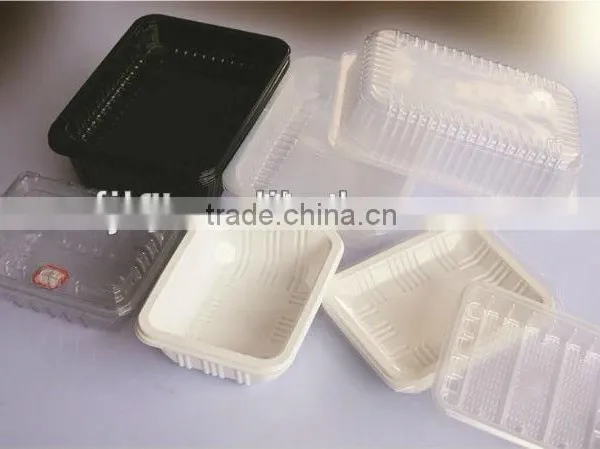

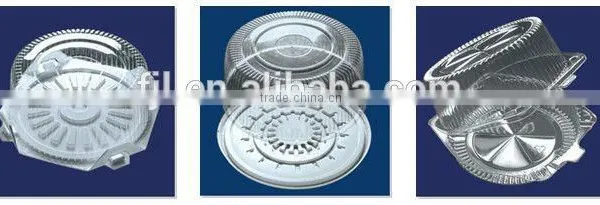

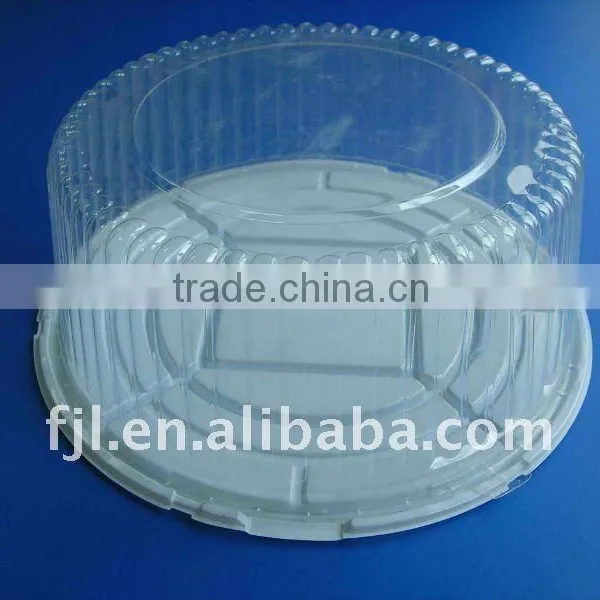

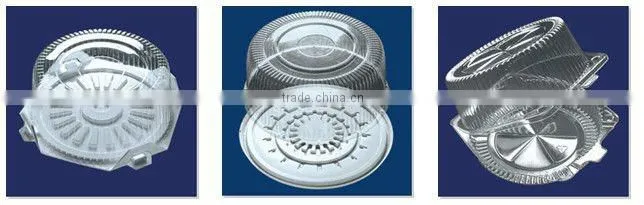

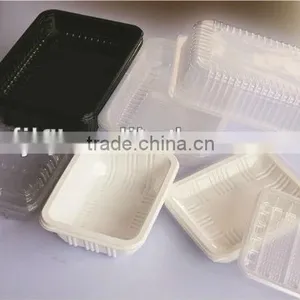

It is suitable to foam BOP. HIPS. PS. PVC. PET and other plastic sheet roll, which can produce various of boxes, dishes, trays, bowls and lids, such as food boxes, cake boxes, fast-food boxes, supermarket trays, injection trays, oral liquids trays etc.
Major construction features

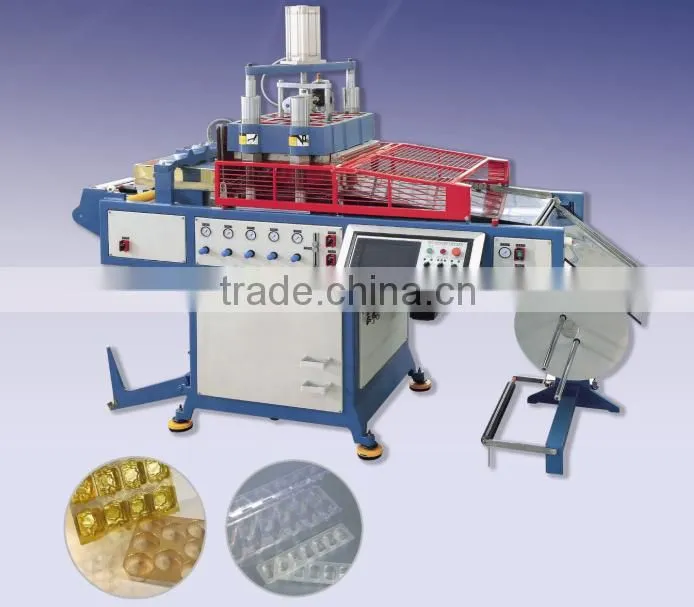

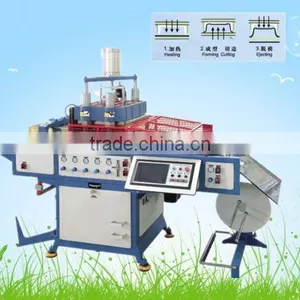

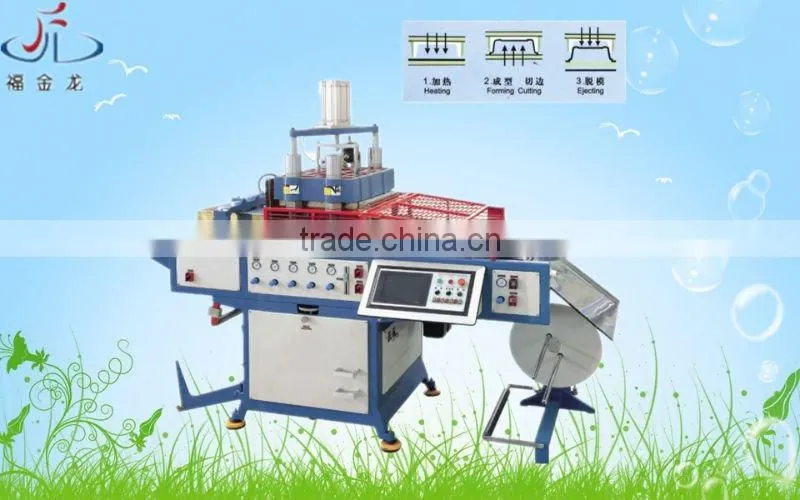

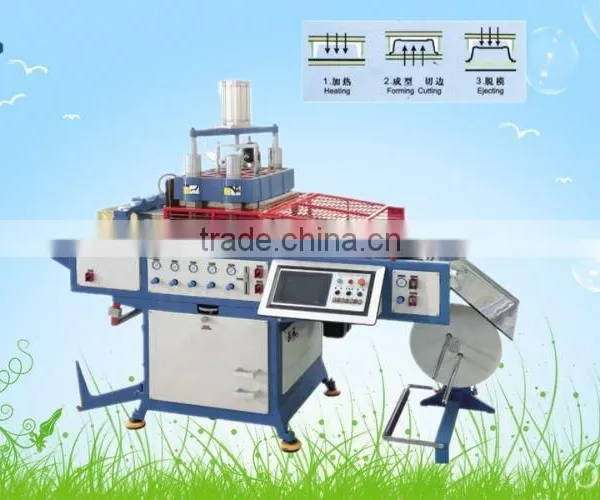

Automatic plastic air-pressure thermoforming machine is a combination of mechanical, electrical and pneumatic components, and the whole system is controlled by a micro PLC, which can be operated in man-interface. It combines the material sending, heating, forming and cutting into one process. It has three operation models, "manual", "semi-automatic" and "automatic".
Note: special specification and configuration of products can be designed according to customers’ demand.
Main Technical Parameters
Model |
FJL-510/570 |
FJL-530/760 |
Max. Forming Area |
510*570mm |
530*760mm |
Max.forming Depth, Sample Height |
120mm |
|
Sheet Thickness Range |
0.15-1mm |
|
Max.Sheet Roll Dia |
710mm |
|
Max. Blade Length |
5500mm |
7000mm |
Sheet Material |
BOPS.PS.HIPS.PET.PVC and etc. |
|
Running Speed |
10-25mould/min |
|
Heating Power of Mold Plate |
10KW |
12KW |
Air Cousumption |
1.2m3/min |
1.6m3/min |
Water Cousumption |
0.01m3/min(15-20°C) |
0.015m3/min(15-20°C) |
Dimension |
2.75*1.41*2.15m |
2.75*1.7*2.5m |
Weight(T) |
2.5 |
3.5 |
Power Supply |
380V/50HZ Three phase four wires |
|
Warranty and After-sale service
The warranty of all our testing machine is one year
During this Warranty,it is free to replace the spare parts
Out of this warranty, it only charges the cost of the spare parts
All our testing machines enjoy a long after-sales service
Our products are sold in whole China and exported to many countries and regions such as USA, Japan, Canada, Indonesia, Taiwan, Malaysia, Iran, Singapore, Australia, South Africa, Saudi Aribian, Egypt, Turkey, Philipines, etc. Our company slogan is “Credit by Quality, Market by Service”.
We are appreciated with advance equipment, experience and production power. We provide on time after- sales service. We integrate the design, development, production, sales and after-sales services to our clients.
Note:We can customize the machine according to customer request.
