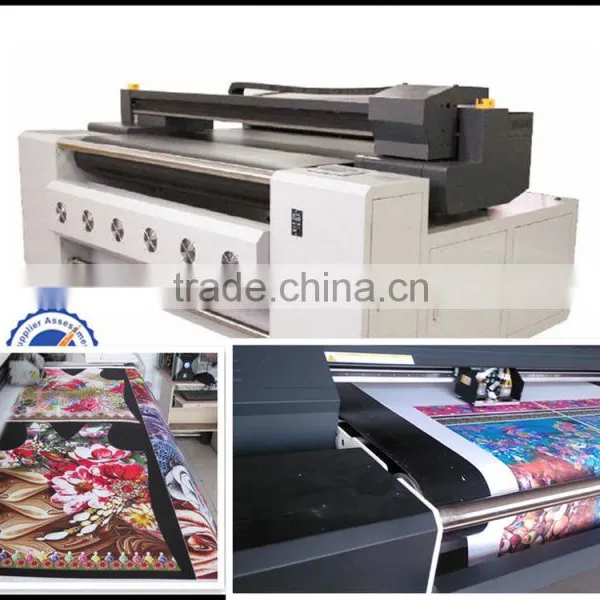

Belt Textile Printer
Features
1, Printing width: 1800mm,3200mm;
2, Print head: Ricoh Gen5 *4 heads,600dpi;
3, Auto belt system,belt cleaning-heating-adjusting system;
4, Glue belt convey way, auto feeding and taking up system;
5, Could print direct on nearly all fabrics,roll and garments;
6, Belt system is compatible with Mimaki,Mutoh,Roland,and Chinese brand printers.
Specification
Model |
Digital Textile Printer MY1800T/MY3200T |
|
Printhead |
Ricoh Gen 5*4 pcs |
|
Max.Print Width |
1800mm(1800T),3200mm(MY3200T) |
|
speed |
2pss |
140 sq.m/hr |
3pass |
90 sq.m/hr |
|
4pass |
70 sq.m/hr |
|
Ink |
Type |
Reactive, Acid, Disperse, Pigment |
Color |
Dual 4 colors |
|
Capacity |
1000ml of each ink cartridge |
|
Ink Supply System |
Block brake type of ink supply system |
|
Print Height |
30mm above media adjustable |
|
|
Fabric Transport |
Adhesive blanket |
|
Belt Auto Cleaning System | ||
Twin roll unwind unit with edge sensor | ||
Auto Media System |
Equipped with auto adjusting system |
|
Auto Printhead Cleaning System |
Anti-clogged Flash Function & Moisturizer System |
|
Print Interface |
USB2.0 |
|
RIP software |
Maintop |
|
Input Power |
AC220V, 50Hz/60Hz |
|
Machine Dimension |
4350×1980×1250mm |
|
Package Dimension |
4550×2100× 1350mm |
|
Application Case
1. Used for garments printing.
2. Used for garments printing.
3.Used for scarf and ties printing.
4.Used for printing Decoration printing.
All parts are 100% tested before assembly to ensure the
printer quality and stable performance.
Wooden case
1. Supply 24 hours on-line English technique support and free training.
2. English RIP and print software, free update when new software function launched.
3. 12 months warranty: for the main board, head board and the electricity motor.
English users manuals to guide customers install, operate and maintain easily.
1. More than 7 years producing experience and stick to the standardized quality.
2.Supply 24 hours online English technique support.Oversea installation and free technical training service is provided.
3.We have exported to over 15 countries.such as Australia, South America, Middle east countries, India,etc
4.We have rich and professional experience in customer service, and can provide the best solution as per your different requirements.
