Specifications
Model: LSC-225200W Co2 laser tube ,1250mm*2500mm
Application: Mild steel, Stainless steel, Acrylic,MDF,Plywood.

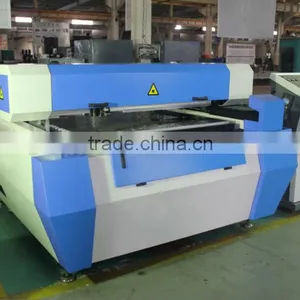

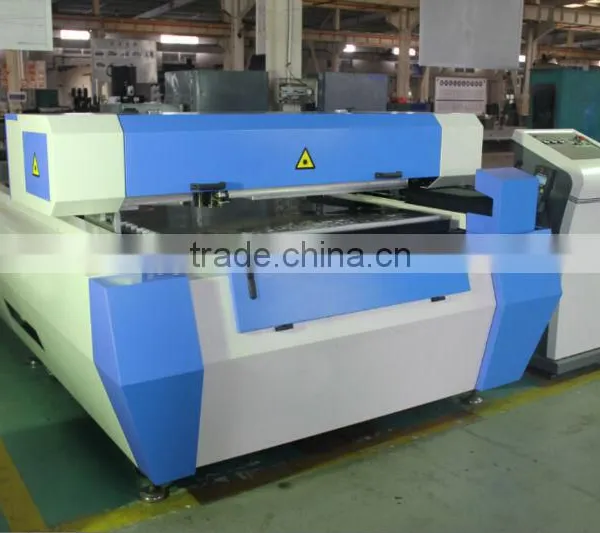

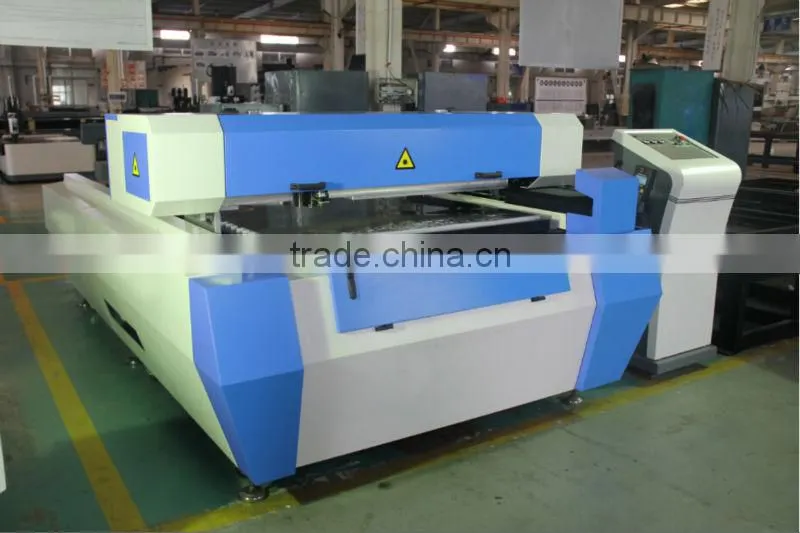

Metal,Non-metal Multi-functionalLaser Cutting Machine
200W Laser tube,1250X2500mm (4X8)
Model: LSC-225
Laser Source: 200W Co2 laser tube
Worktable Size: 1250mm*2500mm
Application: Mild steel, Stainless steel, Acrylic, MDF, Plywood.
1. Products Characters:
2. Machine Parameters:
Item |
Specification |
Qty. |
Remarks |
Processing length |
X-1250mm,Y-2500mm,Z-60mm |
1 Set |
|
Laser source |
200W Co2 glass laser tube |
1 Set |
|
Ball screw transmission system |
Positioning Precision ±0.05mm |
3 Set |
X/Y/Z axle from Taiwan |
Servo motor driving system |
|
3 Set |
X/Y/Z Yaskawa, Mitsubishi or Panasonic from Japan |
Auto following system |
Metal cutting special auto following system |
1 Set |
Automatically adapts to uneven surface |
Integration control panel |
Air/E-stop/Test/Start/Pause etc switch integration |
1 Set |
Directly control lathe bed movement |
Mirrors |
Reflect mirror and Focus lens |
1 Set |
Can directly wiping clean and replace easy |
Chiller |
Low noise, low consumption, comprehensive monitoring function |
1 Set |
Special water cooling system for laser |
Control system |
Off-line control unit and professional laser operating software |
1 Set |
proprietary intellectual property |
smoke exhaust system |
Down smoke exhausting |
1 Set |
Powerful smoke exhausting |
Tools with machine |
Commonly used and laser adjust tools |
1 Set |
|
Blanking collector |
Collect cutting blanking/drawer |
1 Set |
Locates under Lathe bed |
Operating manual |
|
1 Set |
|
Cables |
|
8 m |
|
Smoke exhaust pipe |
|
20 m |
|
3. Machine Cutting Ability:
Materials |
Thickness |
Cutting speed |
Auxiliary gas |
Mild steel |
2mm |
0.9m/min |
Oxygen |
Mild steel |
1.5mm |
1.6m/min |
Oxygen |
Stainless steel |
1mm |
4.2m/min |
Oxygen |
Stainless steel |
1.5mm |
1.6m/min |
Oxygen |
Stainless steel |
2 mm |
0.9 m/min |
Oxygen |
Acrylic |
10mm |
0.75m/min |
Compressed air |
Acrylic |
20mm |
0.12m/min |
Compressed air |
MDF |
12mm |
0.6 m/min |
Compressed air |
Plywood |
18mm |
0.3 m/min |
Compressed air |
4. Optional Parts for Machine:
Item |
Specification |
Qty. |
Remarks |
Computer |
Not less P4/256Mb/Windows XP |
1 Set |
|
Centrifugal Blower |
2.2KW/Pipe connection mouth diameter 200mm |
1 Set |
|
Air Compressor |
Air volume of 0.3 m3, pressure 8 kg/min |
1 Set |
|
5. Optional Configuration:
The machine also can choose installing UK GSI 140W,200W,300W Glass laser tube; Germany ROFIN 200W,350W,550W RF laser tube; UK JK, USA IPG 200W, 300W, 400W, 500W Fiber laser tube.
