Fiberglass mat :
1. Specifications
1) Weight / Mass: 40g/m2-250g/m2
2) Width: 1m-2m
3) Length: 50m-100m/roll (as request)
4) Material: PET
5) Color: Black , white , grey and other color
6) Certificate: CE/ISO9001 , ISO14001
7) Manufacturing method: nonwoven
8) The Biggest geotextile manufacturer/factory in China for many years
2. Features
Fiberglass-Polyester Paving Mat is a new type of composite geosynthetic materials, using wet nonwoven production processes, forming a kind paper, shape nonwoven fabric .
1) To provide reliable waterproof effect . Provide super waterproof layer .
2) Crack extension resistance . Delay the reflective crack .
3) Renewable materials . Can be completely shattered and regeneration for roads .
4) Long service life .

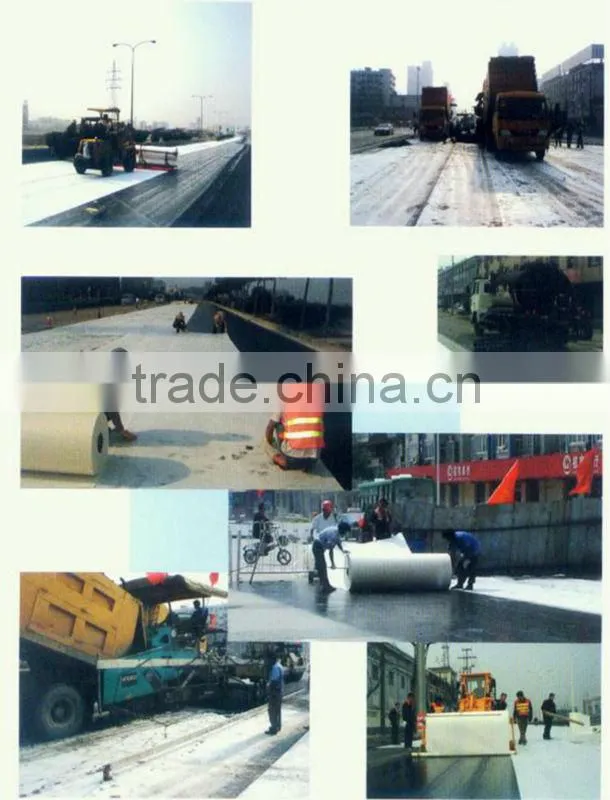

3. Applications
a) Used for basement layer of new road , or used between surface and surface
b) Used for when the road need asphalt surface maintenance
c) At the traffic lights intersection and parking stress concentration place , it can reduce wheel tracking .
4. Fiberglass-Polyester Paving Mat Technical Data
Fiberglass-Polyester Paving Mat Technical Data | ||||||
Item |
Test Method |
Unit |
Typical value |
|||
Tensile Strength in MD |
ASTMD5035 |
kN/m |
4.0 |
6.0 |
7.0 |
8.0 |
Elongation at Break in MD |
ASTMD5035 |
% |
<5 |
<5 |
<5 |
<5 |
Tensile Strength in CD |
ASTMD5035 |
kN/m |
4.0 |
6.0 |
7.0 |
8.0 |
Elongation at Break in CD |
ASTMD5035 |
% |
<5 |
<5 |
<5 |
<5 |
Melting point |
ASTMD276 |
°C |
230 |
230 |
230 |
230 |
Asphalt absorption |
ASTMD6140 |
L/m2 |
0.85-1.3 |
0.85-1.3 |
0.85-1.3 |
0.85-1.3 |
Unit weight |
ASTMD5261 |
g/m2 |
90-135 |
100-145 |
110-150 |
115-155 |
Thickness |
DIN53855 |
mm |
≤1.2 |
≤1.2 |
≤1.2 |
≤1.2 |

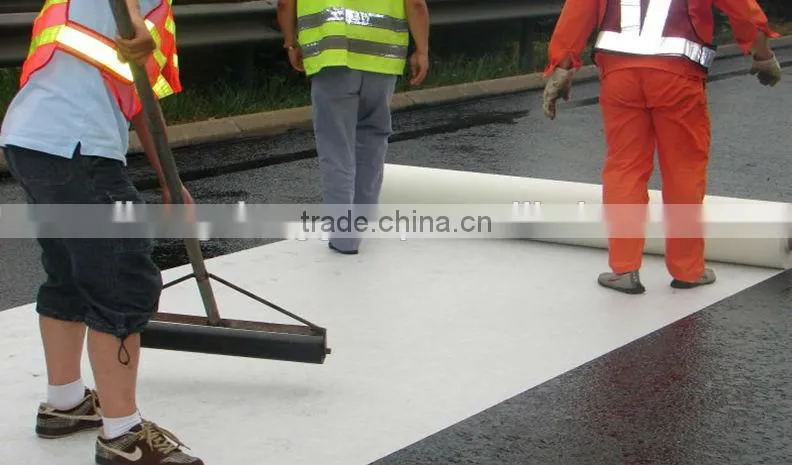

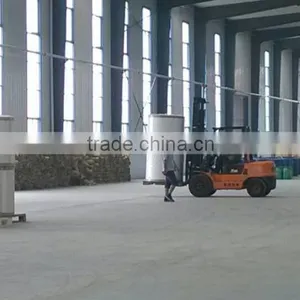

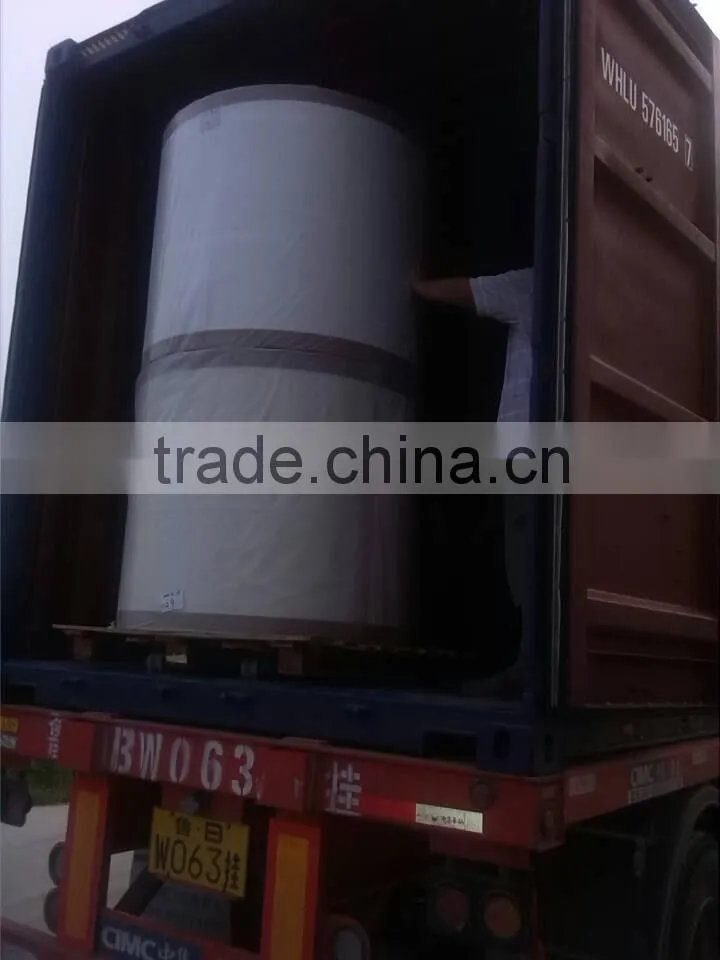

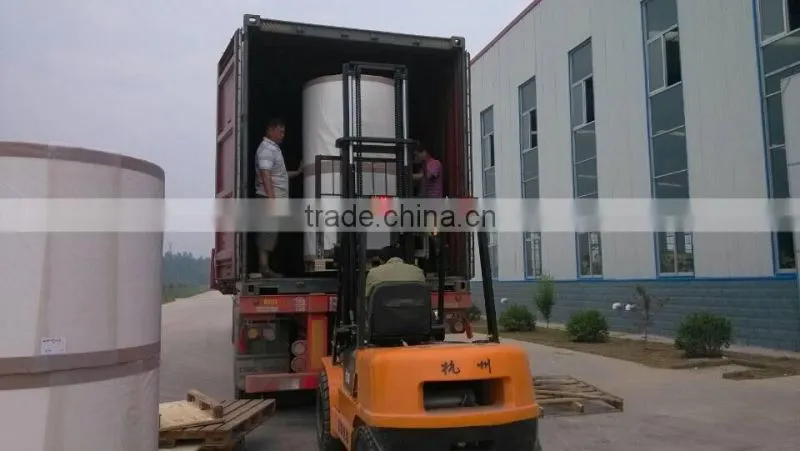

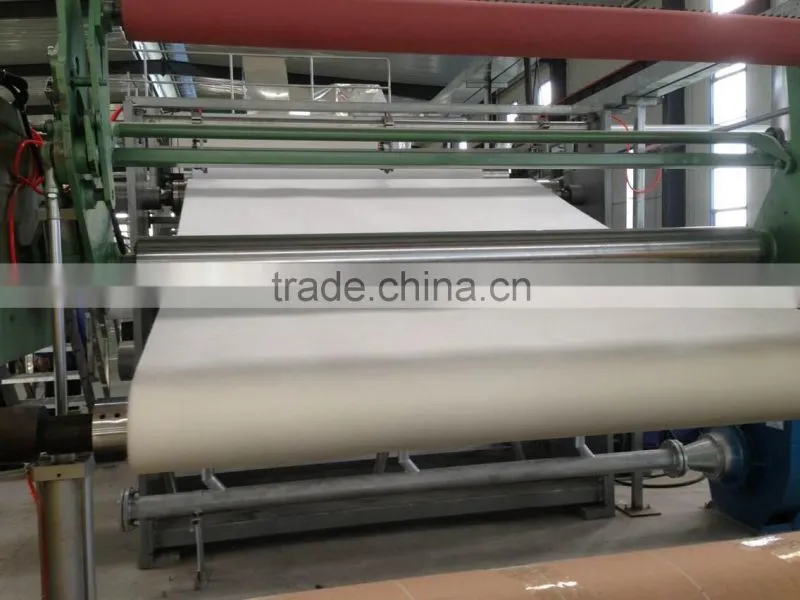

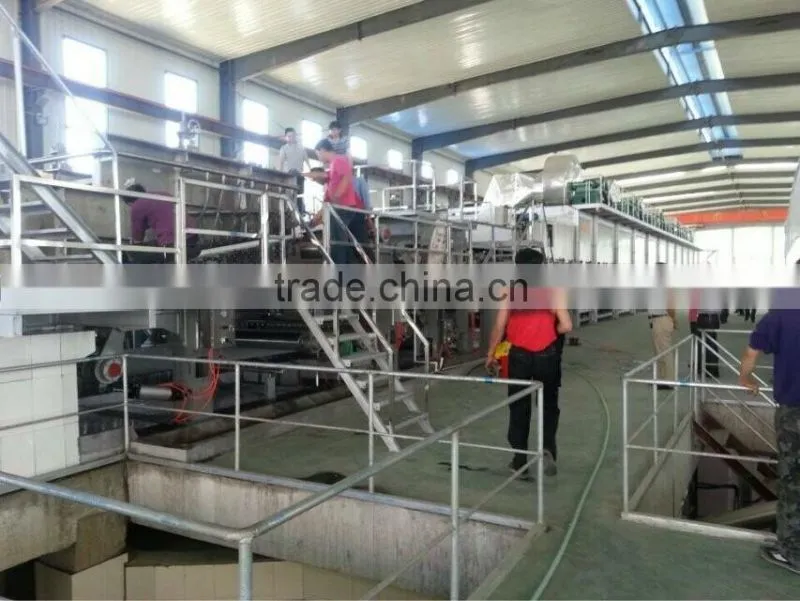

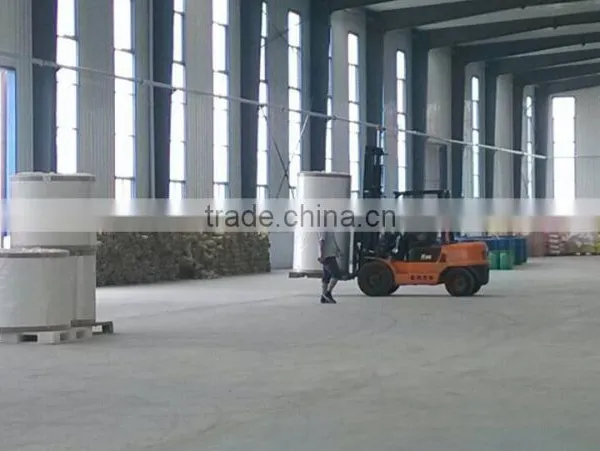

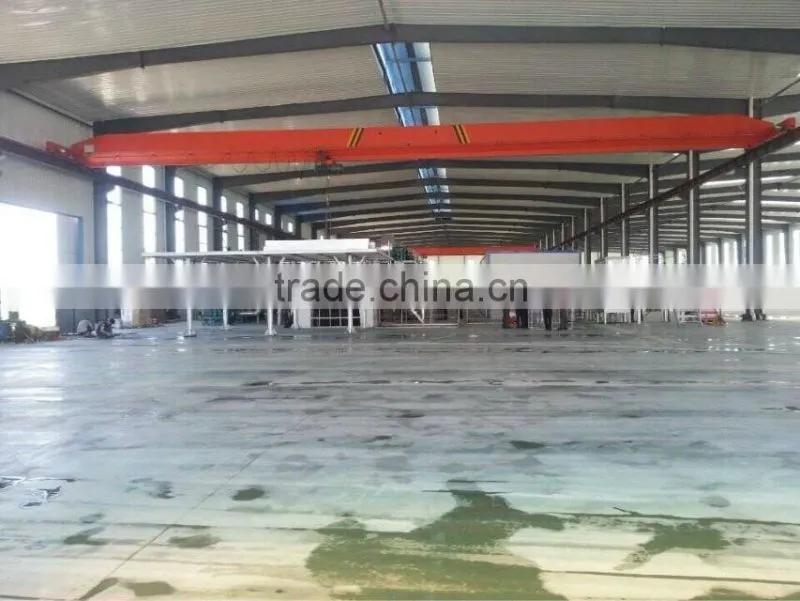

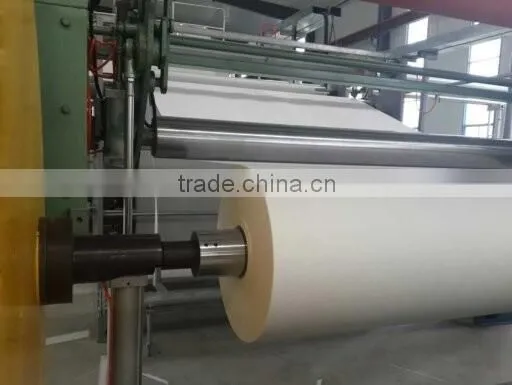

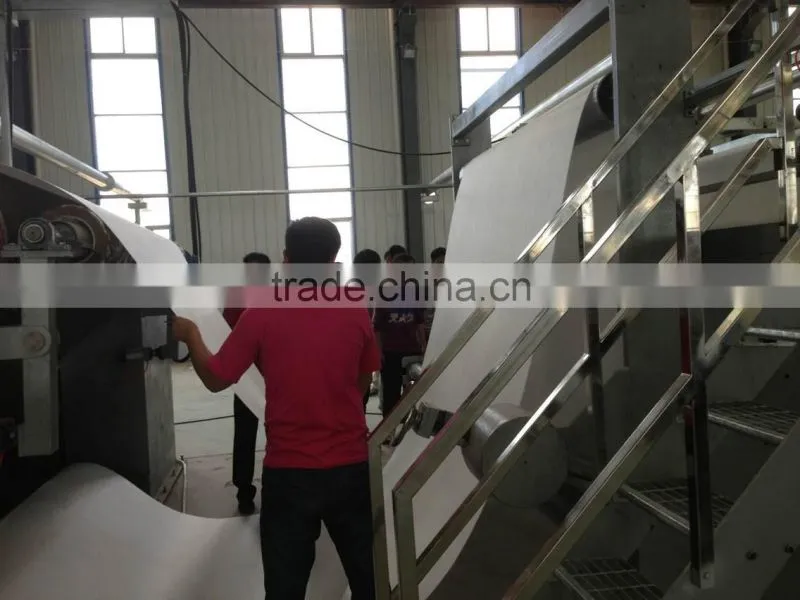

5. Photos for your reference.
Sales manager : nana Ge , Skype : nana09092013
