Specifications
1.1U high2.Boards pluggable
3.One or two IF links
4.Integrated service ports on system control, switching, and timing boards
power transmission line microwave transmission equipment
Product Description
The OptiX RTN 910 is a product in the OptiX RTN 900 radio transmission system series.
-
1. Network Application
The OptiX RTN 900 is a new generation TDM/Hybrid/Packet integrated microwave transmission system developed by Huawei. It provides a seamless microwave transmission solution for mobile communication network or private networks.The OptiX RTN 900 series provide a variety of service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can integrate TDM microwave, Hybrid microwave, and Packet microwave technologies according to the networking scheme for the sites, achieving smooth upgrade from TDM microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while also allowing for future network evolution and convergence.
There are five types of OptiX RTN 900 products: OptiX RTN 905, OptiX RTN 910, OptiX RTN 950, OptiX RTN 950A, and OptiX RTN 980. Users can choose the product best suited for their site.
-
2. Components
The OptiX RTN 910 adopts a split structure. The system consists of the IDU 910 and the ODU. Each ODU is connected to the IDU 910 through an IF cable. -
3. Configuration Modes
The OptiX RTN 910 supports different configuration modes in which different system control, switching, and timing boards, IF boards, and ODUs are configured, suited for various microwave application scenarios.

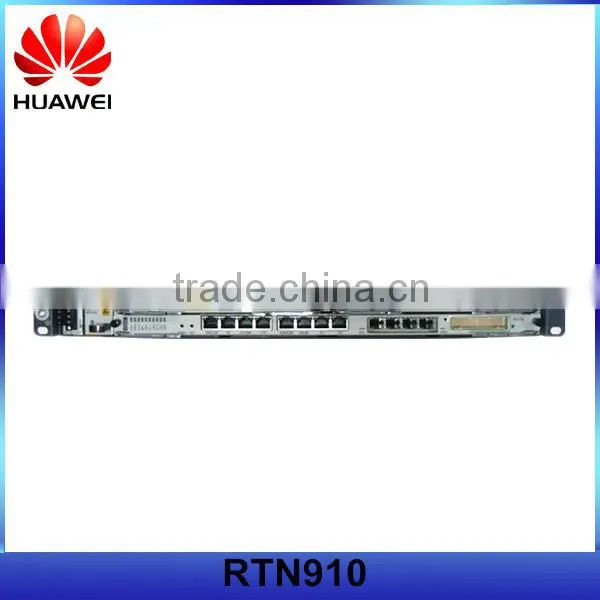

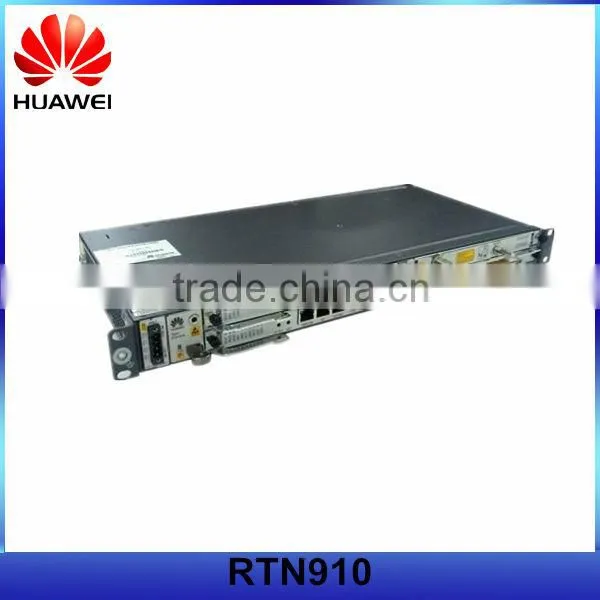

Product Pictures
Specification
OptiX RTN 910 | ||
Frequency Band |
6 GHz, 7 GHz, 8 GHz, 10 GHz, 10.5 GHz, 11 GHz, 13 GHz, 15 GHz, 18 GHz, 23 GHz, 26 GHz, 28 GHz, 32 GHz, 38 GHz, 42 GHz |
|
Channel Spacing (MHz) |
3.5 MHz, 7 MHz, 14 MHz, 28 MHz, 40 MHz, 56 MHz |
|
Modulation Mode |
QPSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM*, 1024QAM* |
|
Interface Type |
E1 interface |
TDM E1, Smart E1 (CES E1, IMA E1 ML-PPP E1*) |
SDH interface |
STM-1 optical/electrical interface, STM-4 optical interface* |
|
Ethernet interface |
FE interface: 10/100BASE-T(X), 100BASE-FX GE interface: 1000Base-SX, 1000Base-LX, 10/100/1000BASE-T(X) |
|
Auxiliary interface |
Order-wire interface, external clock input/output interface, IEEE 1588v2 clock input/output interface |
|
Alarm interface |
External alarm 3 input/1 output interface |
|
Maximum Interface |
PDH interface: 96 × E1 SDH interface: 6 × STM-1, 4 × STM-4* Ethernet interface: 20 × FE , 6 × GE |
|
Maximum Capacity |
Switching capacity: 4.2Gbit/s TDM cross connection capacity: 8×8VC-4, full timeslot cross-connections at the VC-12/VC-3/VC-4 level |
|
RF Direction |
A maximum of 2 RF directions |
|
Configuration |
2 × (1+0) configuration 2+0 configuration 1+1 configuration XPIC configuration 1+1 configuration: 1+1 HSB, 1+1 FD, 1+1 SD, XPIC 1+1 |
|
Ethernet Function |
Ethernet II, IEEE 802.3, and IEEE 802.1q/p service frame formats E-line and E-LAN Ethernet services Adding, deletion, and exchange VLAN tags (IEEE 802.1q/p) Flow control (IEEE 802.3x) Link aggregation group (LAG) RMON (IETF RFC 2819) |
|
PWE3 |
Simulation of TDM E1 and ATM/IMA E1 services Encapsulation of Ethernet services over LSP tunnel to implement E-line services Static PW |
|
QoS |
IP DSCP/IP TOS, MPLS EXP, VLAN 802.1p CAR and traffic policing in color-blind or color-aware mode 8 classes for queue scheduling |
|
MPLS Capacity |
Number of VLAN tags: 4,094 Number of tunnels (including MPLS tunnel, TMPLS tunnel, IP tunnel, and GRE tunnel): 1,024 Number of CESs: 80 Number of PWs: 1,024 Number of E-lines: 1,024 Number of APS protection groups: 32 |
|
Dimensions and Weight |
Dimensions: 442 mm (width) x 220 mm (depth) x 44 mm (height) Weight: 4.1 kg |
|
Working Temperature |
IDU |
–5°C to +60°C |
ODU |
–33°C to +55°C |
|
Relative Humidity |
IDU |
5% to 95% |
ODU |
5% to 100% |
|
Power Supply |
–72 V to –38.4 V |
|
Heat Dissipation |
Fan cooling |
|
Maximum Working Altitude |
4,500 m |
|
Item |
Description |
Chassis height |
1U |
Pluggable |
Supported |
Number of radio directions |
1 or 2 |
RF configuration mode |
|
Service interface type |
|

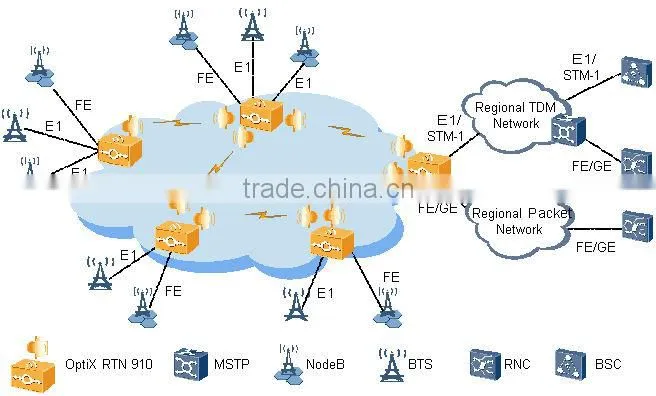

Network Application:
