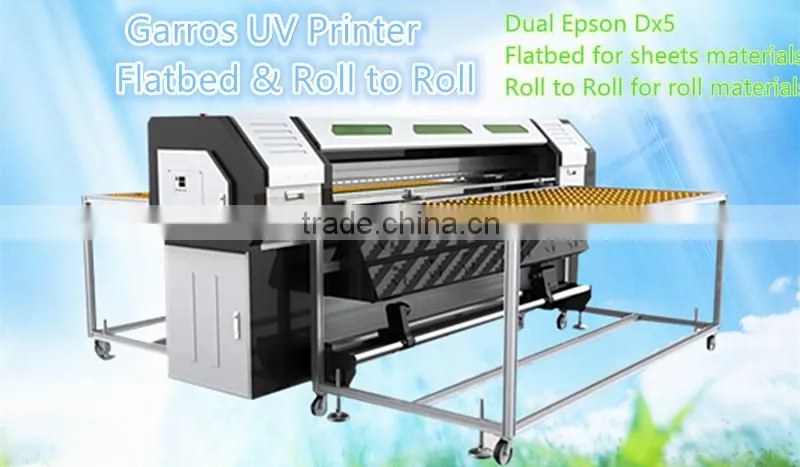

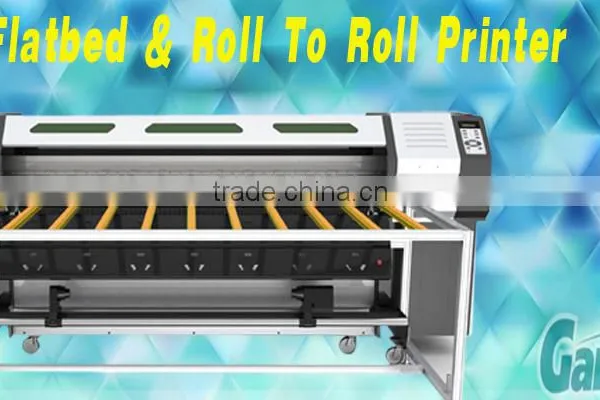

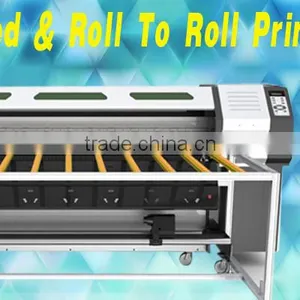

Garros new model UV Roller&Flatbed printer R180E with double DX5 heads
1)Garros Roller&Flatbed R180E Model is a new printing machine which combined flatbed printer withinkjet printer in one machine, along with all features and advantages of flatbed printer and inkjet printer.
2)Garros Roller&Flatbed R180E Model is equipment with the feeding and take up system for roll printing, and also comes with front and back extension platform for plate printing. The conveyor feeding system can convey both rigid and flexible mediaaccurately. The vacuum system controls the whole printing platform to remain media smooth without wave, and maketrue of “edge to edge” printing.
Model |
Garros R-180E UV Printer |
||
Print head |
Piezo electric nozzle DX5 print head |
||
Print head quantity |
2 pieces |
||
Print Resolution |
720×720 ,720×1080 ,720×1440(dpi) |
||
Print Width |
1860mm ( 6ft ) |
||
Print Ink |
UV ink |
||
Ink Capacity |
440ml |
||
Ink color |
4 colors / 8 colors printing (C,M,Y,K / C,M,Y,K,LC,LM,LK,LLK) |
||
Ink supply system |
Block brank system |
||
Print speed |
4 Pass |
30sqm/hr |
|
6 Pass |
20sqm/hr |
||
8 Pass |
15sqm/hr |
||
16 Pass |
8sqm/hr |
||
Print Medias |
PVC, PP, soft, textile, PVC board, hollow, metal, wallpaper, leather, glass, textile fabric, acrylic, KT board, Chevron board, etc. |
||
Print Medias Thickness |
0-30mm |
||
Heating system |
Embedded intelligent heating system embedded segment piecewise intelligent heating system |
||
Media adsorption system |
Independent intelligent air suction system with 3 sections control |
||
Media Feeding system |
Standard Equipped ( maximum weight 80kg ) |
||
Auto Nozzle cleaning system |
Auto clean function attempts to prevent the flash and moisturizing spray has a auto cleaning function and moisturizing spray blockades flash function |
||
USB interface |
USB2 .0 ( USB 3.0 optional ) |
||
Computer System |
WINDOWN/98/XP/7(32bit.64bit) WINDOWN/98/XP/7(32bit.64bit) |
||
RIP software |
Maintop , Photoprint , Wasatch |
||
Imput voltage |
AC220V,50Hz/60Hz |
||
Temperature during using |
18-32℃ |
||
Moisture during using |
40-70% |
||
Package detail |
3300×1045×1500mm(l×w×h)/1000kg |
||
1.Roll to roll and flatbed , 2 in 1 multi functional printer , solved the problem to print roll materials and boards ,main application in advertising ,studio and decoration business etc. uv led flatbed printer
2. 4colors / 8 colors printing (C,M,Y,K / C,M,Y,K,LC,LM,LK,LLK) uv led flatbed printer
3.Full format vacuum suction function is easy to transfer roll materials & plate boards during printing. uv led flatbed printer
4.Smart infrared heating, the heating system can automatically shut down when printing stops, safe and reliable. uv led flatbed printer
5.Advanced servo control system to ensure the printing alignment accuracy and consistency, long smooth fabrics can also be transferred. uv led flatbed printer
6.Efficient online fabric drying system, quick drying fabric. uv led flatbed printer
Application for Garros roll to roll UV printer :
PVC, PP, soft, textile, PVC board, hollow, metal, wallpaper, leather, glass, textile fabric, acrylic, KT board, Chevron board, etc. uv led flatbed printer
uv led flatbed printer
Package Details :
1. Packing wooden size : 3300mm x 1045mm x 1500mm
2. Total Package Weight :1000kgs
Printer Shipment Term :
1. By Sea : EXW or FOB 15-35 working days
2. By Air : EXW or CIF 7-15 working days
uv led flatbed printer
ZhenFeng Technology Co.,Ltd
1) Was established since 2006,with over 8 years experiences in manufacturing and supplying digital printers and consumables.
2)Besides , sole agents are located in UK,Madagascar,Indonesia,Philippine,Malaysia etc.
3)With a strong team for sales, after-sales and Technology support !
4)Engineers available for installation and training abroad .
uv led flatbed printer
Any question or suggestion, please feel free to contact us! Thank you!
You can add my wechat(13725169757),skype(suky.chen7),whatsapp(0086 13725169757),please contact me 24hours on line.
