US$ 8,500 - 18,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
Other, ice cream truck body
Truck Model:
Other, Isuze NPR, Chevrolet, Hino, Hyundai, Mitsubishi Canter, MAN
Size:
4800mm(L) x 2200mm(W) x 2000mm(H)
Contact Supplier Request Quote Chat Now
Jinan Atop Industry & Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, ice cream truck body
Truck Model Other, Isuze NPR, Chevrolet, Hino, Hyundai, Mitsubishi Canter, MAN
Size 4800mm(L) x 2200mm(W) x 2000mm(H)
Material FRP Sheet +Polyurethane Foam
OEM No. AJC4800IC2
Place of Origin Shandong, China
Brand Name ColdKing
Model Number AJC4800IC2
Truck Body Details

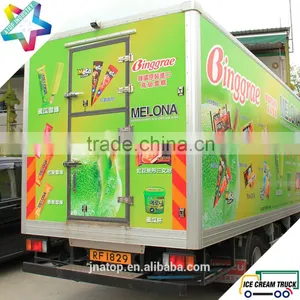

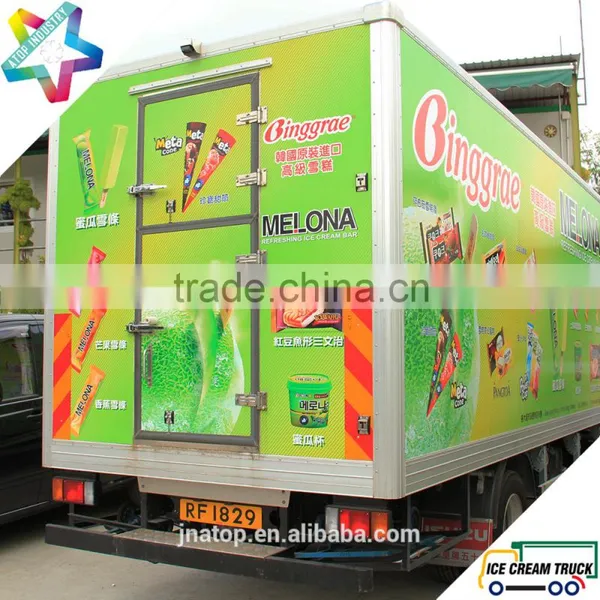

Ice Cream Truck Body
Key Features
ColdKing ice cream truck body is made of all-closed sandwich structure panels, which is made by special technology to vacuum form complete panels. We use free-Freon molding polyurethane foam as inner insulation materials. The internal and external coverings are integral FRP sheets (fiberglass reinforced polyester), therefore, homogeneous construction (without any metallic reinforcements).
Ice Cream Truck Body Outer Size
4.8m(L) x 2.2m(W) x 2.0m(H)
eutectic ice cream truck body
Ice Cream Truck Body Inner Size
4.59m(L) x 1.99m(W) x 1.79m(H)
eutectic ice cream truck body
Roof/Floor Panel
105mm Thickness
Side Wall Panel
105mm Thickness
Front Wall Panel
105mm Thickness
Rear Door Panel
105mm Thickness
Panel Structure
All Closed Sandwich
Panel Insulation
FRP + PU Foam + FRP
Side Door Quantity
1 (One) Set
Side Door Location
1 Set On Left
Side Door Type
Single Opening
Side Door Size
600mm(W) x 900mm(H)
Rear Door Type
800mm(W) x 1,600mm(H) Vertical Double Opening Rear Door
Truck Body Flooring
Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate
Cargo Loading Control System

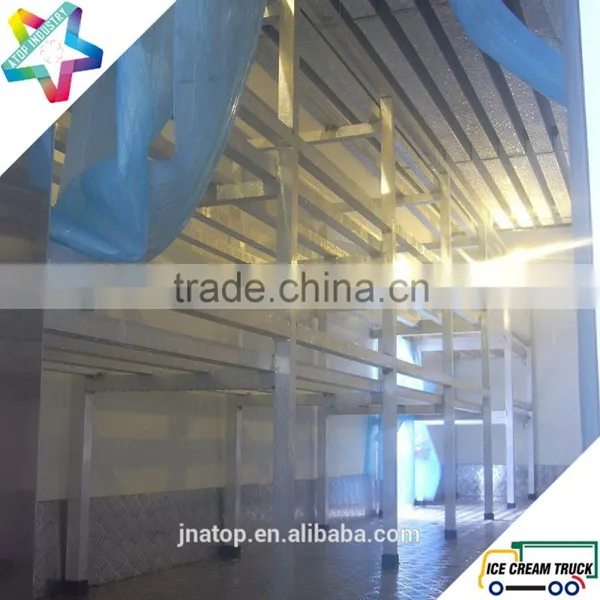

Stainless Steel Racksice cream truck body
Ceiling Light
ice cream truck body
4 (Four) Sets of 12/24V Multi-Voltage LED
Marker Light
ice cream truck body
2 Sets Of White LED On Front;
2 Sets Of Red LED On Rear
Ceiling Light Switch
ice cream truck body
1 (One) Set of Automatic Time-Delayed 12/24V Multi-Voltage Switch
Insulating Curtain
ice cream truck body
European Standard -40C PVC Strip Curtain System For Side & Rear Doors

Refrigeration Unit       Service Ladder
Stainless Steel
ice cream truck body
Refrigeration Unit      Service Platform
Stainless Steel + Aluminum Chekered Plate

Lock Set With Internal Release Device

Optional lock set with internal release device for emergency inside opening for side door and rear door

Aluminum Flooring ice cream truck body

Reinforced Floor Covered With 3.0mm Thickness Aluminum Checkered Plate ice cream truck body

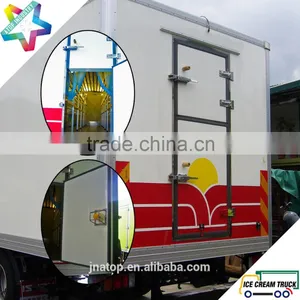

Customized Size Rear Door

Customized vertical double opening rear door with internal release device for emergency inside opening

Cargo Versatile Shelving

Offers a wide variety of cargo shelving from stainless steel to aluminum alloy for standard & efficient cargo loading & unloading management

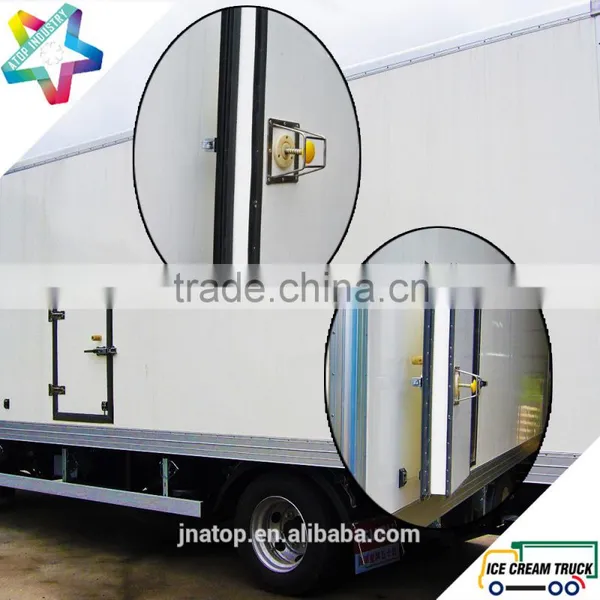

Customized Size Side Door

Customized size single opening side door with internal release device for emergency inside opening

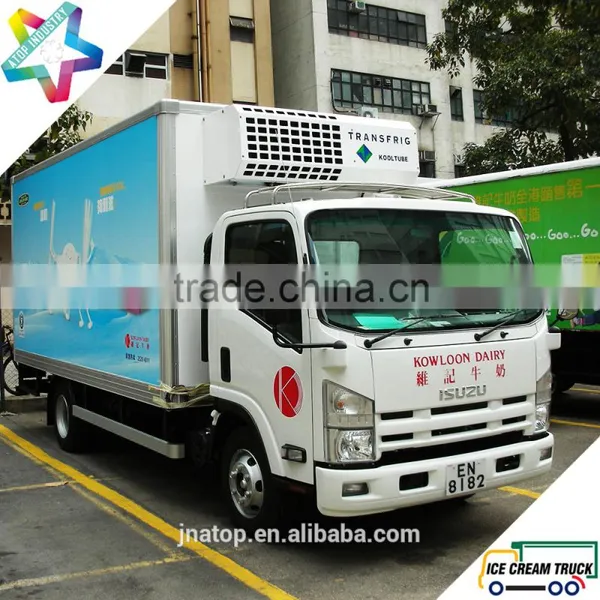

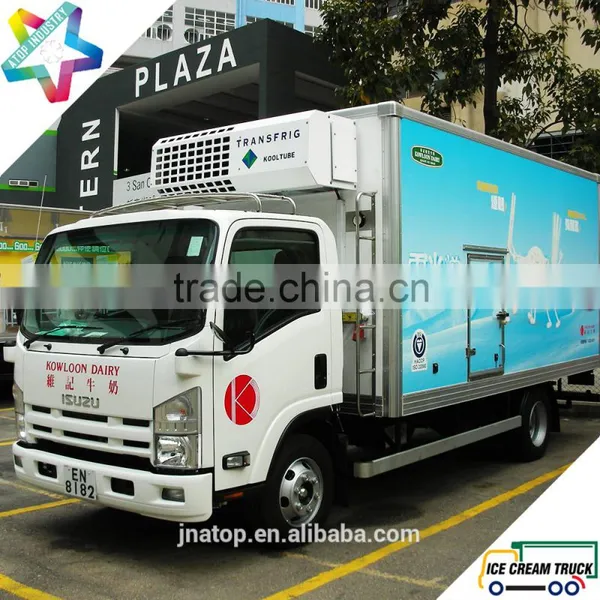

Kooltube Unit

Key Features ice cream truck body

ColdKing Kooltube is a holdover or latent heat storage system. It is one of the simplest refrigeration systems and has been around in its basic configuration for many years. Simply, it can be compared to a block of ice in a glass of water or to the freezer pack, which you freeze in your fridge at home and put into a cooler box to keep your drinks cold.The eutectic beams perform the same function as the block of ice or freezer pack while the condenser replaces your domestic fridge. The system is plugged into an electrical supply until the tubes are properly frozen, unplugged and then the vehicle used for its delivery round.
Refrigeration Unit Model
KT420-14N
Refrigeration Unit Brand
ColdKing
Refrigeration Unit Type
AC Power Driven Eutectic Solution, Condenser Split ice cream truck body
Refrigeration Capacity
3,145W(@ -40C)
4,230W(@ -35C)
7,140W (@ -25C)
Total Refigeration Heat Exchange Rate
13,524Kcal/h ice cream truck body
Refrigerant
HFC R404a
Defrost
Manual Warm Water
Condenser Mounted Method
Over-Cab Mounted
Kooltube Beams Assembly
4.2m(L) x 14 Pcs
Compressor Brand & Power
Bitzer 4.0Hp
Expansion Valve
Danfoss
Condenser Fan
EBM
Thermometer
REFCO
Power Supply Voltage/Phase/Frequency
220V/3Ph/60Hz ice cream truck body

4200mm(L)  x 14 pieces Kooltube Beams ice cream truck body

The Kooltube beam is extruded aluminum containing a non-toxic eutectic solution. A wide range of solutions is available for various temperature applications. ice cream truck body

Bitzer Compressor ice cream truck

Germany brand BITZER compact semi-Hermetic reciprocating compressors boast an efficient suction gas–cooled motor, high-quality valve plates, wear-resistant drive gears and adjustable capacity control. This gives the BITZER compressor, which can also be used at very low condensing temperatures, a beneficial seasonal energy efficiency beyond comparison. ice cream truck body

Quality Components ice cream truck

Quality components from EBM Fans, Danfoss Expansion Valve, Schneider Electric Control, etc. ice cream truck body mini ice cream truck body eutectic refrigeration system ice cream cold plate reefer truck

Optional Items

Hydraulic Tail Lift ice cream truc

Aluminium Alloy/Steel Platform Hydraulic Tail Lift Are Available

Cargo Control System

Smart & customized cargo Loading control system

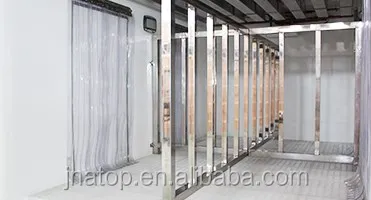

Internal Dividers

Internal Dividers In Stainless Steel To Divide 4 (Four) Cargo Space For Rapid & Efficient Loading & Delivery

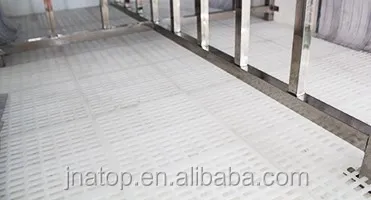

Removable PVC Grating

Removable PVC Grating Is Good At Prevent Cargo Packages From Condensing Water Damage

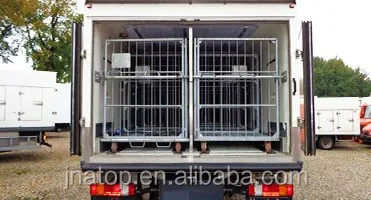

Roll Carts

Roll carts for rapid and efficient loading, delivery and unloading goods. It was customized made according to inner dimension & configuration of refrigeration truck body

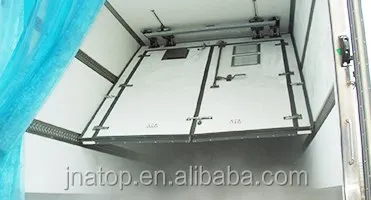

Multi-Temperature Partition

Multi-temperature purpose longitudinally moveable, insulated transverse partition wall to meet different temperature controlling cargo transportation

Products Show

5.0m Ice Cream Truck Body

5.0m ice cream truck body fitted on UD truck chassis

2.4m Ice Cream Pick Up Body

2.4m ice cream pickup body fitted on Toyota Hilux pickup chassis ice cream truck body

2.7m Ice Cream Truck Body

2.7m ice cream truck body suitable for Hyundai H100 H1 truck  chassis

Our Services

1. OEM Manufacturing welcome: Product, Package...
2. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you. ice cream truck body

FAQ

Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance payment.

Q2. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
A: Generally, it will take 30 to 60 days after receiving your deposit payment. The specific delivery time depends
on the items and the quantity of your order.

Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
