Instructions:

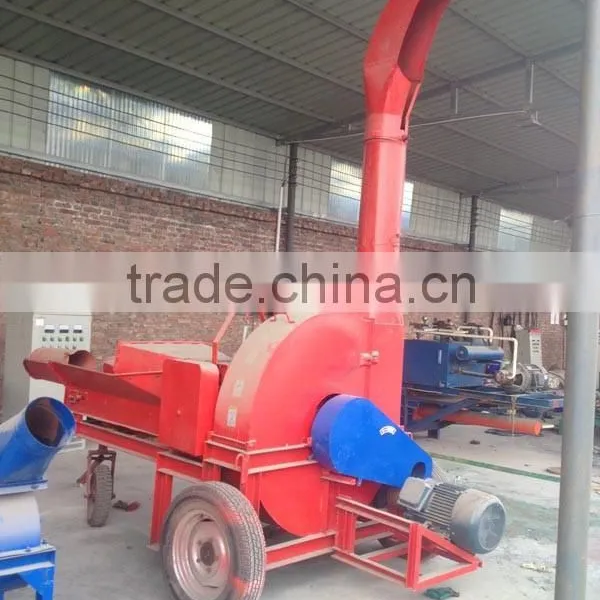

thischaff cutter machine can cutter dry and fresh grass , corn stalk and other agriculture waste
With the motor as the mating power,
1) firstly, the main shaft get the driving force.
2) And then, the gear box and cardan joint adjust the driving force, and transfer to grass-pressed rollers through gears in the end of main shaft.
3) When inlet between the pressed rollers,

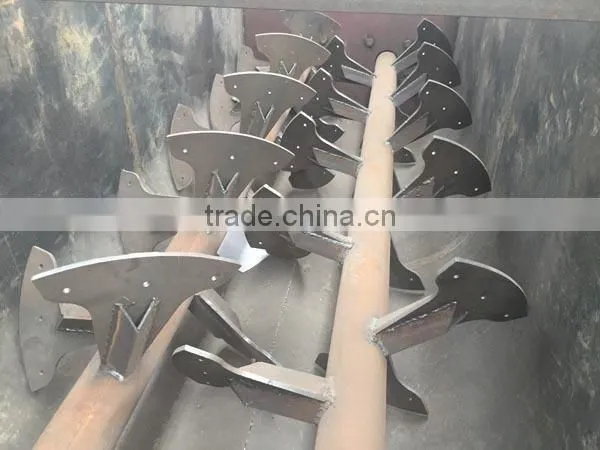

the materials is pressed and cutted up by high speed revolutionary cutter and casted outsides
Functions chaffcutter :
for cutting all kinds of green grass,hay,tobacco,wheat straw,cornstalk,sweet potato straw,
and other forage grass,or crude drugs.
specifications:
Performance configuration |
Model |
||||
9Z-9 |
9Z-6 |
9Z-4 |
9Z-2.5 |
||
With motor (kW) |
15 |
7.5 |
5.5 |
4 |
|
With diesel engine (hp) |
≥30 |
≥15 |
≥12 |
≥8 |
|
Capacity(t/h) |
3-20 |
2.5-15 |
2-8 |
1-4 |
|
Finished product material length (mm) |
12.18.25.35 |
12.18.25.35 |
17.22.34.44 |
3-cutter 15.35 |
|
Chain conveyor belt |
√ |
√ |
√ |
× |
|
Dimension(mm) |
USE |
2620×2140×3390 |
1968×2147×2756 |
1020×1520×2756 |
1150×1230×1695 |
Transport |
2620×1720×1850 |
1393×800×1585 |
1020×630×2350 |
1150×510×1050 |
|
