Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Welcomed!!! HF130 Trailer Core Bore Drilling Machine

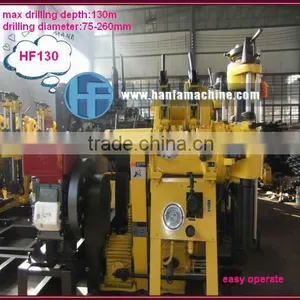

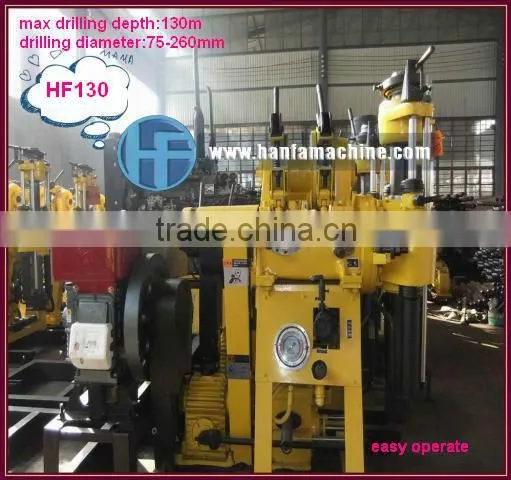

Welcomed!!! HF130 Trailer Core Bore Drilling Machine
US$ 1 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hydraulic
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Tianjin Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale in South America, Durable HF300Y Water Well Drill Rigs for SaleUS$ 100,000 - 300,000MOQ: 1 Set -
HFT-200 Truck Mounted Water Well Drill RigUS$ 1 - 23,000MOQ: 1 Set
-
HFT-200 Truck Mounted Water Well Drill MachineUS$ 1 - 23,000MOQ: 1 Set
-
HF100Y Gold Drilling EquipmentUS$ 15,000 - 50,000MOQ: 1 Set
-
Hot Sale! Max 600m Depth! HF-3 Hydraulic Concrete Core Drilling MachineUS$ 1 - 50,000MOQ: 1 Set
Condition
New
Type
Other, Hydraulic
Place of Origin
Henan, China
Brand Name
HF
Model Number
HF130
Usage
Water Well
Voltage
220V/380V
Power(W)
30KW
Weight
4T
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
core bore drilling machine1.with wheels, easy to move
2, hydraulic type, easy to operate
3. durable,
core bore drilling machine
HF130 Drilling Rig
Specifications | ||
Unity machine parameter | ||
Drilling depth |
130m |
|
Maximum open hole caliber |
260mm |
|
End hole caliber |
75mm |
|
Drill rod caliber |
50mm |
|
Drilling angle |
90~75 |
|
Drill weight (No include power) |
510 560kg |
|
Unity machine dimensions |
2.5×1×1.3 2.5×0.9×1.3m |
|
Spindle | ||
spindle speed |
142,285,570r/min |
|
Spindle stroke |
450mm |
|
Hoist | ||
Max.single line hoisting capacity |
960kg |
|
Single line lifting speed |
0.41,0.82,1.64m/s |
|
Tightrope caliber |
27m |
|
Mud pump | ||
Type |
Horizontal single urn twin-action |
|
Displacement |
95/77L/min |
|
Diesle engine |
s1105Type, 18HP |
|
Electric motor |
Y160M—4 11kw 1440r/min |
|
Maximum pressure |
1.2Mpa |
|
Work pressure |
0.7Mpa |
|
Water inlet caliber |
30mm |
|
Water to exit caliber |
25mm |
|
Triangle conveyer belt |
B1575mm |
|
