Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > HF120W DTH Hammer Bore Hole Drill Rig
HF120W DTH Hammer Bore Hole Drill Rig
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, DTH hammer
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao other ports also available
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF120W DTH Hammer Water Well Drill MachineUS$ 10,000 - 20,000MOQ: 1 Set -
Geotechnical Investigation Drill Rig HF-360 Good Quality Small Pile Drilling MachineUS$ 25,000 - 30,000MOQ: 1 Set
-
Crawler Auger Mini Pile Drill MachineUS$ 23,000 - 30,000MOQ: 1 Set
-
Track Drilling Rig for Photovoltaci PilesUS$ 23,000 - 30,000MOQ: 1 Set
-
Portable Automatic Drill Rig HF-360 Small Pile Drilling MachineUS$ 25,000 - 30,000MOQ: 1 Set
Condition
New
Type
Other, DTH hammer
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
HANFA
Model Number
HF120W
Usage
Water Well
Power(W)
16.2kw
Dimension(L*W*H)
3200mm x 1400mm x 1500mm
Certification
CE, BV, SGS
Warranty
1year
After-sales Service Provided
Engineers available to service machinery overseas

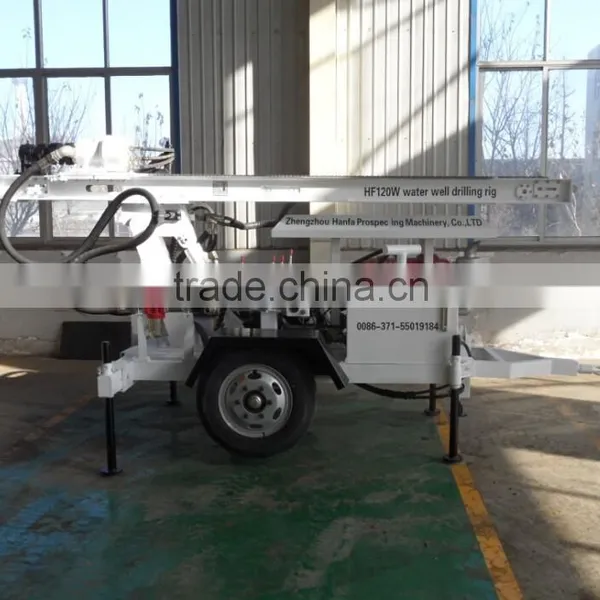

HF120W DTH Hammer Bore hole Drill Rig
uses new hydraulic technology with low gas consumption, big rotary torque and convenience. It’s mainly for mining, road building, rock blasting holes, and water wells.
Description |
HF120W |
Geology drilled |
All kinds |
Drill depth |
0-120 m |
Drilling Diameter |
90 -140mm |
Drill system and operation |
Hydraulic |
DRILL PIPE |
|
Drill pipe length |
2.00 meter |
Drill pipe diameter |
60/76 mm |
MUD PUMP |
|
Flow capacity |
200 liter/min |
Max. working pressure |
1.8MPA |
HYDRAULIC SYSTEM |
|
Hydraulic tank capacity |
140 liter |
DIMENSIONS |
|
Overall length |
3200 mm |
Overall width |
1400 mm |
Overall height |
1500 mm |
Diesel engine |
|
Power |
16.2KW |
Send Inquiry to This Supplier
Mr. Vincent Guo
Bussiness Manager
Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.
Zhengzhou, Henan, China
Business Type
Trading Company
Year Established
2010
Factory Size
Below 1,000 square meters
Total Employees
11 - 50 People
