Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > HuaWei MA5616 hf Transceivers China

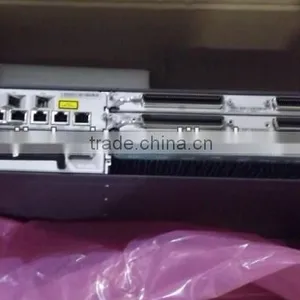

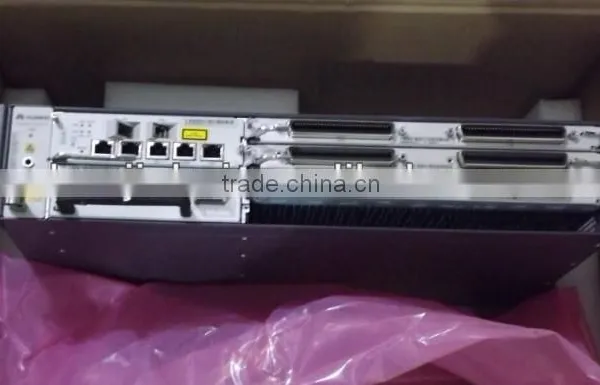

HuaWei MA5616 hf Transceivers China
US$ 1 - 2,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Huawei
Model Number:
MA5616 hf transceivers china
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port of China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
Huawei
Model Number
MA5616 hf transceivers china
Specifications
1, huawei MA5616 hf transceivers china2, light module (10k,sm)
3, switch ethernet industrial
Features |
CCUB control board |
CCUC control board |
|---|---|---|
| Dimensions (H×W×D) | 88.1mm × 442mm × 245mm |
88.1mm × 442mm × 245mm |
| Network-side port | The MA5616 supports the following configurations: • 1 × GPON + 1 × GE • 2 × GE |
The MA5616 supports the following configurations: • 1 × GPON + 1 × GE • 2 × GE |
| User-side port | The MA5616 provides four slots and the following 10 service boards: • 24-channel VDSL2 board (17a, over POTS, built-in SPL) • 24-channel VDSL2 board (17a, over POTS, external SPL) • 24-channel VDSL2 board (17a, over ISDN, external SPL) • 16-channel VDSL2 board (30a, over POTS, built-in SPL) • 32-channel ADSL2+ board (built-in SPL) • 32-channel combo board (32 × POTS + 32 × ADSL2+) • 64-channel POTS board • 32-channel POTS board • 8-channel ISDN board • 16-channel G.SHDSL board (supporting ATM and PTM) |
The MA5616 provides four slots and the following 13 service boards: • 24-channel VDSL2 board (17a, over POTS, built-in SPL) • 24-channel VDSL2 board (17a, over POTS, external SPL) • 24-channel VDSL2 board (17a, over ISDN, external SPL) • 16-channel VDSL2 board (30a, over POTS, built-in SPL) • 32-channel ADSL2+ board (built-in SPL) • 32-channel combo board (32 × POTS + 32 × ADSL2+) • 64-channel POTS board • 32-channel POTS board • 8-channel ISDN board • 16-channel G.SHDSL board (supporting ATM and PTM) • 16-channel FE (electrical) board • P2P board with 4 GE (combo of optical port and electrical port) + 4 FE (optical port) • 48-channel VDSL2 board (17a, over POTS, external SPL, supporting MELT) |
| Operating temperature | -40°C to 65°C; startup at -25°C | -40°C to 65°C; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) | 5% to 95% (non-condensing) |
| Heat dissipation mode | Providing fans for heat dissipation. The rotating speed can be automatically adjusted. | Providing fans for heat dissipation. The rotating speed can be automatically adjusted. |
| Power supply | AC: 220 V/110 V DC: -48 V |
AC: 220 V/110 V DC: -48 V |
| Backup power | Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries | Support for 48-V backup power Support for lead-acid batteries and LiFePO4 batteries |
| Weight | 4.8 kg (empty chassis) 7.2 kg (full configuration) |
4.8 kg (empty chassis) 7.2 kg (full configuration) |
The SmartAX MA5616 (the MA5616 for short) is an industry-leading remote multi dwelling unit (MDU) launched by Huawei, which supports flexible configurations and provides broadband services on Fiber To The Building (FTTB) and Fiber To The Curb (FTTC) networks. The MA5616 is a box-type device measuring 2-U high and 19-inch wide and providing two GPON or GE uplink ports and ADSL2+,VDSL2, SHDSL, POTS, ISDN, FE and GE ports. The MA5616 features a high access density, high processing capability, high reliability, easy maintenance, environment-friendlily and energy conservation, and future-oriented architecture design and can be used in corridors, cabinets, indoor, and outdoor usage scenarios.
There also have many items with Huawei, Any orders, please feel free to contact with me!!!
