Home > Instruments & Meters > Test Instrument > Test Machine > YD-12 Automatic Vibration Calibrator

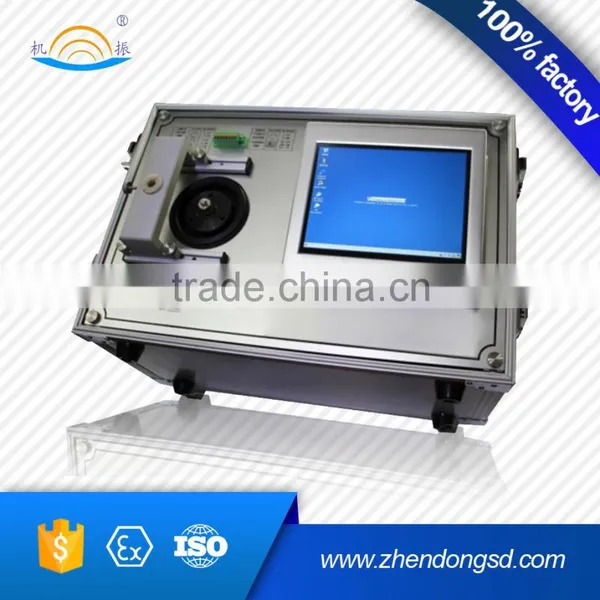

YD-12 Automatic Vibration Calibrator

Name: YD-12 Automatic Vibration Calibrator
Brand: Ce Zhen
SKU: 101832535

YD-12 Automatic Vibration Calibrator thumbnail-1

YD-12 Automatic Vibration Calibrator photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Ce Zhen

Model Number:

YD-12

Contact Supplier Request Quote Chat Now

Shanghai Cezhen Automation Instrument Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Ce Zhen

Model Number YD-12

Power Electronic

Usage Vibration Testing Machine

New product YD-12 Vibration Calibrator

Feature

Extra large 7.5-inch TFT touch screen, resolution up to 640 × 480.

(1)Calibrator upper / lower position machine system can be operated independently verified.

(2)Automatic drawing real-time waveform of the sensor under test, the measured sensor linear curve, the spectral curve, sensitivity error curve.

(3)The machine configuration standard USB mouse, to optimize the operation of parity in the verification process.

(4)Automatic sweep vibration check. Figures show that vibration acceleration, vibration velocity and vibration displacement and shaft vibration amplitude

(5)Can calibrate foreign vibration and eddy current sensor .Such as Bentley,Philips, Schenck, Shinkawa, Metrix, Entek .

(6)Calibration data can be transferred to the PC desktop, laptop computers for data storage, management, editing, observation and print settings.

(7)Can Check speed sensor ,such as BN9200/74712/330500/190501Bentley, eproPR9266/9268, Germany Schenck VS-069/169, VS-068/168,entek9200 Shinkawa

CV-851/852 sensors,including BN330400 acceleration sensor.

(8)The calibration data can be stored with U disk.Hot-plug U disk greatly facilitates the flexible use of the check results.

(9)Calibration tile vibration (speed / intensity), bearing vibration system.

(10)Checksum secondary instrument, the transmitter,form the statements.

Overview

So far,foreign /domestic manufacturers produced different types of calibration equipment power on (fire / hydropower plants), petrochemical, metallurgy and other large rotating machinery

and equipment industry.Such as speed sensor, acceleration sensor, vibration sensor systems .But these devices are always not achieve automatic check speed, amplitude-frequency characteristics of the acceleration sensor and linear specialty. As well as vibration system (sensor + vibration monitoring instruments, etc.) linear system error and mean sensitivity error.

Such equipment is standard deviation,.Thrust, vibration frequency adjustment range is small.Lack of intelligent data analysis,process and communication functions.

The verification steps is cumbersome and the calibration data is full of human error factor.

Shanghai Ce Zhen Automation Instrument Co.,LTD is specialized in the system of speed, acceleration, vibration for 8 eight years .After collecting information and suggestions from many users and industry experts,

we have developed a new generation of intelligent YD-12 vibration calibrator.

The functions of YD-12 vibration calibrator is as following :

(1)It can intelligently drawn, storage, output print the linear characteristic curve and the amplitude-frequency characteristic curve of a variety of vibration velocity and acceleration sensor.

(2)It can record / calculate the characteristic data of the sensor and calculate its’

sensitivity and sensitivity error, nonlinearity with the least squares method .

(2)Display/storage dynamic vibration waveform peak-to-peak, RMS voltage of sensor .

(3)Display / storage the amplitude-frequency characteristics curve of the sensor.

(4)Display / store the sensor’s vibration velocity, acceleration peak to peak, RMS on the position and some frequency conditions. As a standard sample of

speed, acceleration sensor vibration system (sensor + vibration velocity, acceleration Monitor). Set operating frequency (10Hz to 400Hz) on a certain vibration velocity, acceleration amplitude calibrator .

Main technical indicators:

Operating frequency range of the vibration table: 10Hz ~500Hz.

Vibration output accuracy:

Acceleration: ± 1%

Speed: ± 1%

Displacement: ± 2%

The output range of the vibration table:

Maximum Acceleration: 10g

Maximum speed: 500 mm / s

Maximum displacement: 2.5mm

Uploading data to a PC (laptop) with RJ45 cable

Print sensor linear data, the amplitude-frequency data, the linear curve and amplitude-frequency curve offline.
