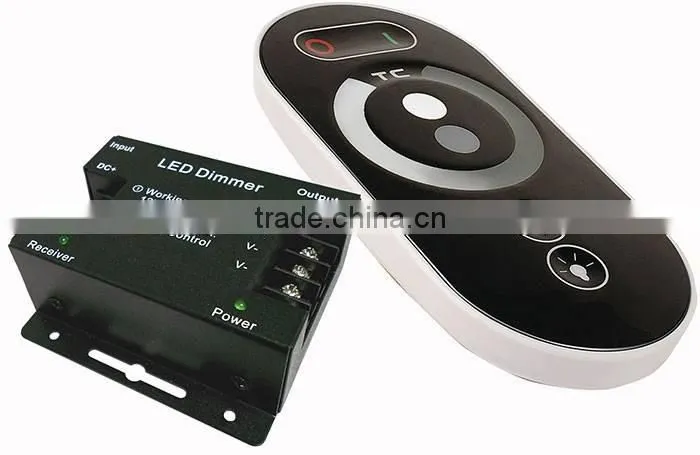

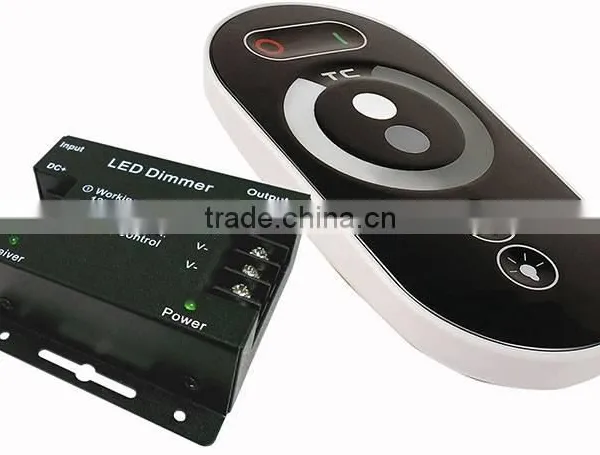

DC12V 8A LED Dimmer with Touch Remote
Technical Parameters:
Controller:
Working temperature:-20℃~+60℃
Supply Voltage:DC5V, 12V, 24V available(Please specify the voltage when place order)
Output:3 single color channels N-MOS Drain open output in parallel
Connection mode:common anode
Controller dimension:L83×W79×H33 mm
Package size:L205×W134×H47mm
Net Weight:227g
Gross Weight:379g
Static power consumption:<1W
Output current:<18A(each channel)
Output power:5V:<90W, 12V:<216W, 24V:<432W
Romote
Working temperature:-20℃~+60℃
Power supply mode:3pcs NO.7 Battery
Supply voltage:3V
Static power consumption:<0.09mW
Remote-controlled distance:>20M
Function:
Product Size:

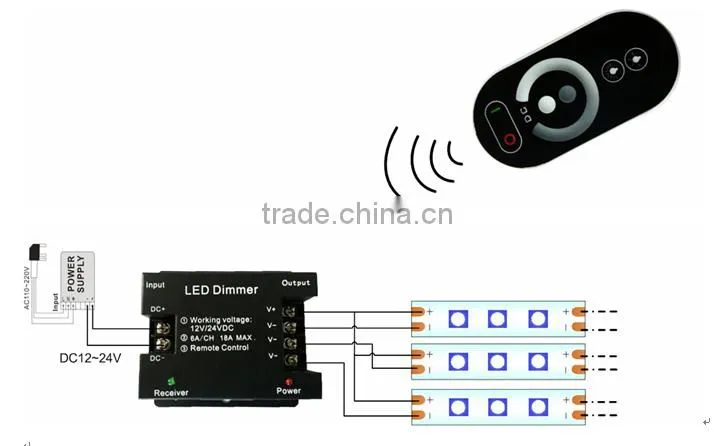

Connection:
