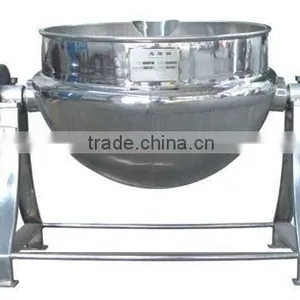

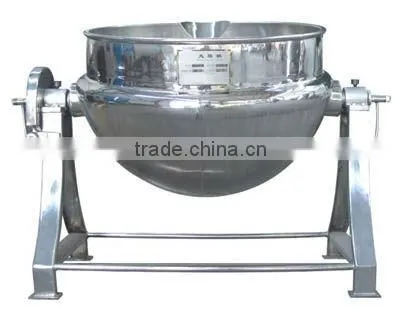

Vertical Steam Sandwich Pot

Vertical Steam Sandwich Pot thumbnail-1
Vertical Steam Sandwich Pot photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Beijing, China
Brand Name:
JING CHUANG
Contact Supplier Request Quote Chat Now
Beijing Yuanxiang Vegetable Foods Machine Factory
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Beijing, China
Brand Name JING CHUANG
Model Number 500L
Type Other, Vertical Sandwich pot
Voltage 380V 50HZ/220V 50HZ
Power(W) 1.5
Weight 300
Dimension(L*W*H) 1900*1300*1570mm
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas



 Vertical Steam Sandwich Pot

Vertical Sandwich pot



Gas pressure: LPG 2500-2900Pa; gas 1800-2200Pa;
Combustion power: 60KW; Power: 220V/100V 60HZ; fan power: 85W;
Stirring speed: according to customer requirements; stirring power :0.75-1 .5 kw.
1, the pot using a metal forming the stainless steel head, to ensure smooth pan.
2, can be steam, liquefied petroleum gas, natural gas and other forms of heating, heating area, high thermal efficiency.
3, can be stirred and not stirred any use, the use may be tipping the pot, the expected rapid clean.
4, compact structure, easy operation and maintenance, high efficiency, low energy consumption, long service life.
5, where all food contact parts made of high quality stainless steel, fully comply with food hygiene requirements.
6, widely used in candy, cakes, drinks, fruit juices, dairy products, canned food and brewing, pharmaceuticals, household chemicals and other industries.

Type

Pressure of work

(MPa)

Design temperature( ℃)

The relief valve pressure value (MPa)

Heating area

(M2)

Volume(L)

Nominal Diameter(inch)

The low pressure

High pressure

The low pressure

High pressure

The low pressure

High pressure

Steam inlet

Condensation water inlet

Discharge valve

50L

0.29

0.49

142

151

0.321

0.536

0.53

14.3

3/4″

3/4″

11/4″

100L

0.29

0.49

142

151

0.321

0.536

0.87

24.2

3/4″

3/4″

11/4″

200L

0.29

0.49

142

151

0.321

0.536

1.23

34.4

3/4″

3/4″

11/4″

300L

0.29

0.49

142

151

0.321

0.536

1.65

42.9

3/4″

3/4″

11/4″

400L

0.29

0.49

142

151

0.321

0.536

1.99

52.7

3/4″

3/4″

11/4″

500L

0.29

0.49

142

151

0.321

0.536

2.21

66.75

3/4″

3/4″

2″

600L

0.29

0.49

142

151

0.321

0.536

2.43

73.8

3/4″

3/4″

2″
