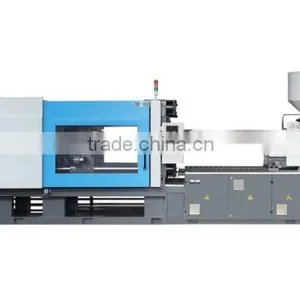

500T Plastic Injection Molding Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tube Head Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
220T Servo Motor PC Plastic Injection Molding MachineNegotiableMOQ: 1 Set -
High Speed Servo Motor Plastic Injection Molding MachineNegotiableMOQ: 1 Set
-
90T Plastic Injection Molding MachineNegotiableMOQ: 1 Set
-
220T Servo Motor Plastic Injection Molding MachineNegotiableMOQ: 1 Set
-
220T Servo Motor High Speed Cream Bottle Plastic Injection Molding MachineNegotiableMOQ: 1 Set
Condition
New
Type
Tube Head Injection
Style
Horizontal
Brand Name
YOUCAN
Model Number
YC500
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
1494-2397g
Clamping Force
5000kn
Opening Stroke
780mm
Power(W)
45kw/2x28.3kw
Certification
ISO9001
After-sales Service Provided
Engineers available to service machinery overseas

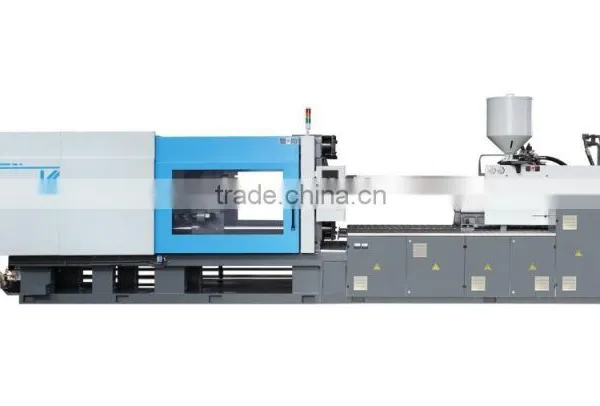

500T Plastic Injection Molding Machine
Name: Spring WhatsApp: +86 13567193083
Our factory is located in Ningbo, China.
Our machine uses the first class brands parts as follows:
Servo Motor: Phase;
Gear Pump: Erckerle;
Computer: Techmation or KEBA;
Valves: Yuken or Rexroth;
Contactor: SSR Scheneider;
Lubrication System: Hegu;
Controller: Innovance.
Model: YC500
| Injection Unite | A | B | C | |
| Shot Volume | CM3 | 1590 | 2042 | 2550 |
| Shot Weight | Gram | 1494 | 1919 | 2397 |
| Oz | 52.3 | 67.2 | 83.9 | |
| Screw Diameter | mm | 75 | 85 | 95 |
| Injection Pressure | MPa | 204 | 159 | 127 |
| Screw L/D Ratio | 21:1 | 21:1 | 18.7:1 | |
| Screw Stroke | mm | 360 | ||
| Screw Speed | r/min | 0~150 | ||
| Clamping Unit | ||||
| Clamping Force | KN | 5000 | ||
| Opening Stroke | mm | 780 | ||
| Platen Size | mm*mm | 1180x1180 | ||
| Space Between Tie Bars | mm*mm | 830x830 | ||
| Mold Thickness(Min-Max) | mm | 300~820 | ||
| Max. Daylight | mm | 1600 | ||
| Hydraulic Ejection Stroke | mm | 210 | ||
| Hydraulic Ejection Force | KN | 111 | ||
| Power Unite | ||||
| Hydraulic System Pressure | MPa | 17.5 | ||
| Pump Motor | KW | 45/2x28.3 | ||
| Heating Capacity | KW | 35.4 | ||
| Number of temp control zones | 5+Nozzle | |||
| General | ||||
| Dry-cycle Time | Sec | 5.2 | ||
| Oil Tank Capacity | Liter | 1150 | ||
| Machine Dimensions | M*M*M | 9.2x1.8x2.4 | ||
| Machine Weight | KG | 22000 | ||
