Specifications

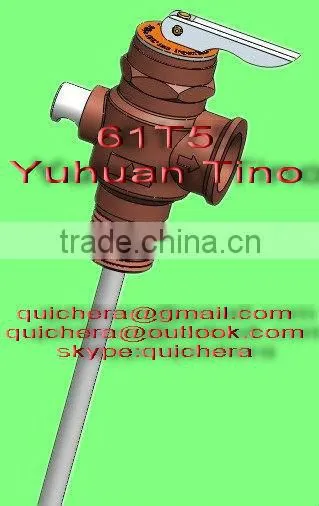

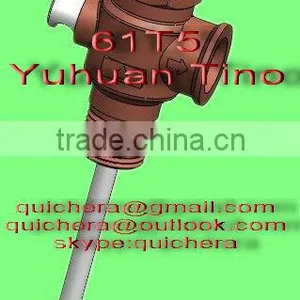

TP VALVE,pressure and temperature valve forged brass ,better quality with economic cost,compared with WATTS,RMC P&T relief valve
Company Profile:
Yuhuan Tino Imp&Exp Co., Ltd is complex of producer and trading company , mainly producing kinds of safety valves, T61M seriese for electric water heater, T611-614 for wall-hung boiler and central heating system, 61T1-61T2 is designed for pressure vessel such as solar water heater, any steam tank ,which need control temperature and pressure.
And Automatic air vent including solar air vent, home appliance water pressure reducing valve. And other brass fitting.
Tino Pressure and temperature relief (PT relief) valves are safety controls which ensure that the tempearture of the water in a pressurised envednted water heater cannot exceed 99°C in the event that the normal thermostatic control fails
These valves may be used to guard against over-temperature and over-pressure hazards wherever water is stored in unvented containers.
RMC PT relief valves are available in 15mm and 20mm configurations.
Features and Benefits
|
*Auxiliary pressure relief device >prevents pressure building up in the event of a blockage in the drain line |
*Sealed spring cavity >prevents spring from seizing in event of calcification |
|
*Female BSP thread on outlet thread >prevents incorrect installation to the tank |
*suitable for horizontal or vertical installation >valve designed to work effectively in either orientation |
|
*plastic coated temperature probe >prevents electrolysis of the probe outer casing |
*individually tested and calibrated >every valve is tested to ensure higher quality and performance |
|
*Dezincification resistant >meets the international standard |
Materials
Body:DZR
Internal parts:Brass and stainless steel
Seat disc:rubber
Blowout cage:Nylon
PRODUCT NOTE
1. IT IS RECOMMENDED THAT THE EASING LEVER BE ACTUATED EVERY SIX MONTHS TO PREVENT ACCUMULATION OF MINERAL DEPOSITS THAT MAY IMPAIR VALVE OPERATION, LEVER SHOULD BE OPERATED SMOOTHLY AS A SUDDEN INFLUX OF WATER MAY CAUSE THE BLOWOUT CAGE TO ACTIVATE
2. THE DRAIN LINE MUST BE COMLAINT WITH RELATIVE STANDARD,FAILTURE TO PROVIDE ADEQUATE DRAINAGE MAY RESULT IN PREMATURE ACTIVATION OF BLOWOUT CAGE.
