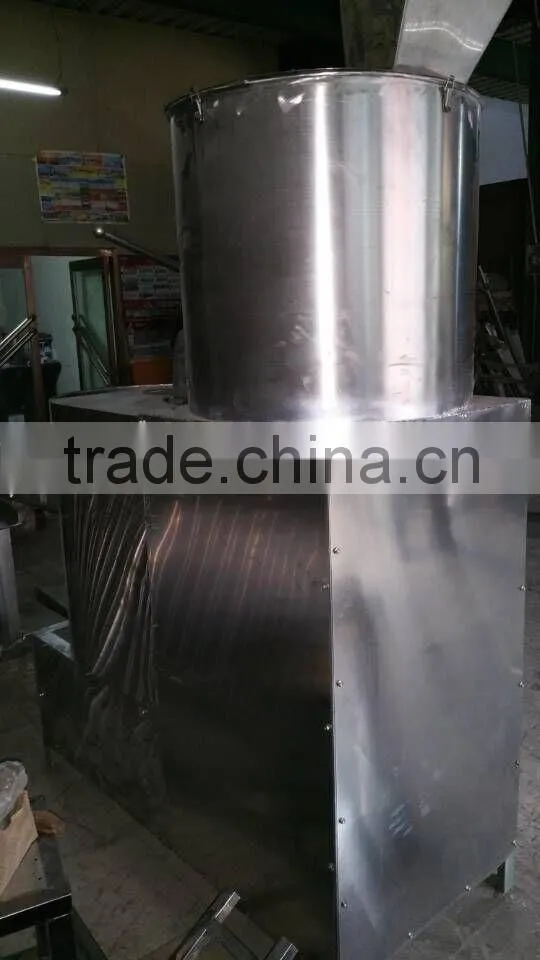

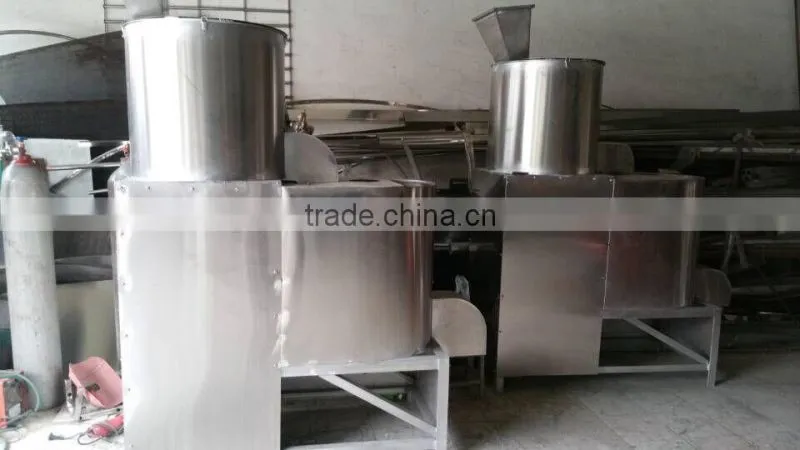

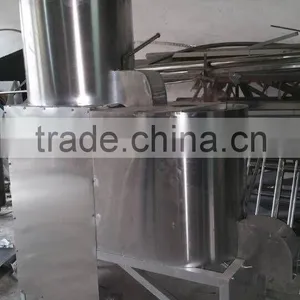

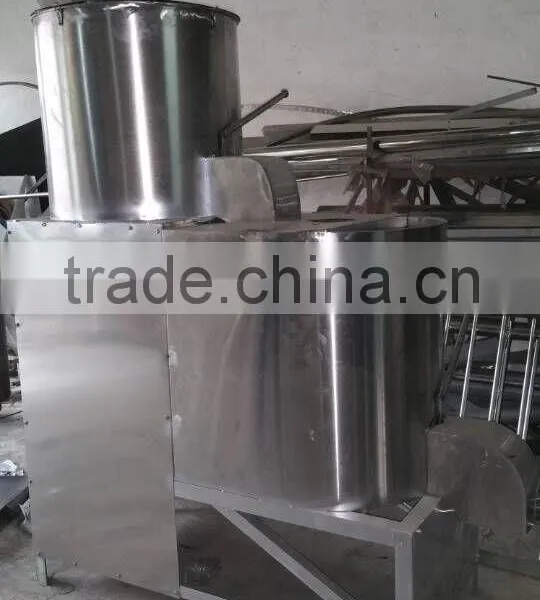

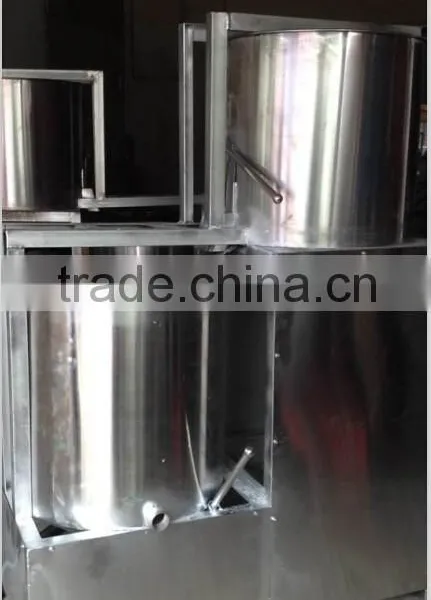

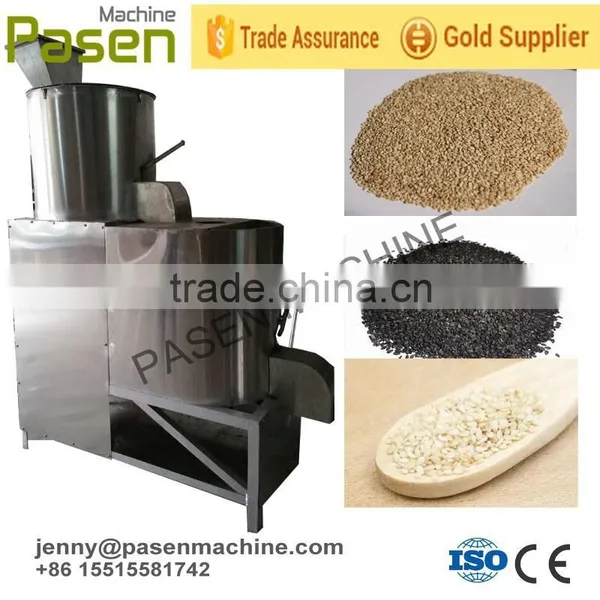

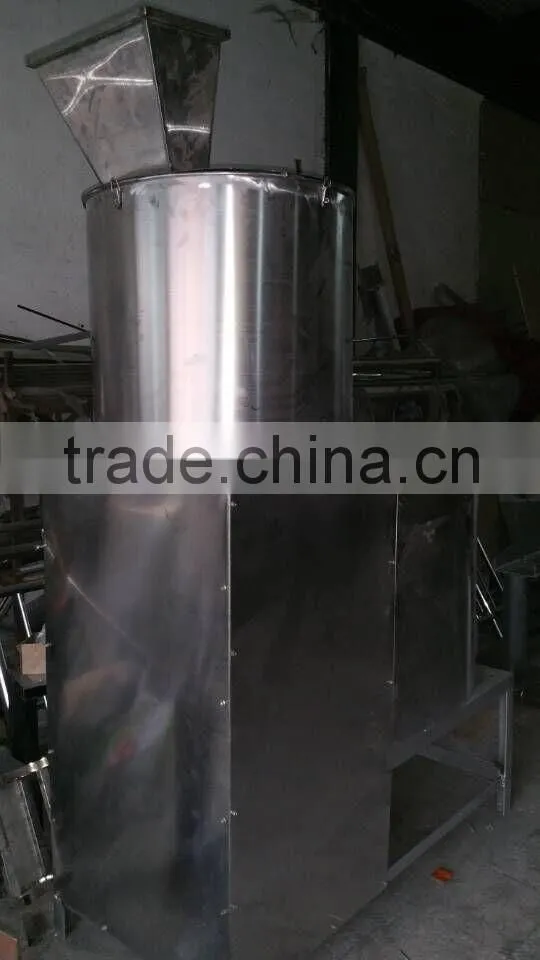

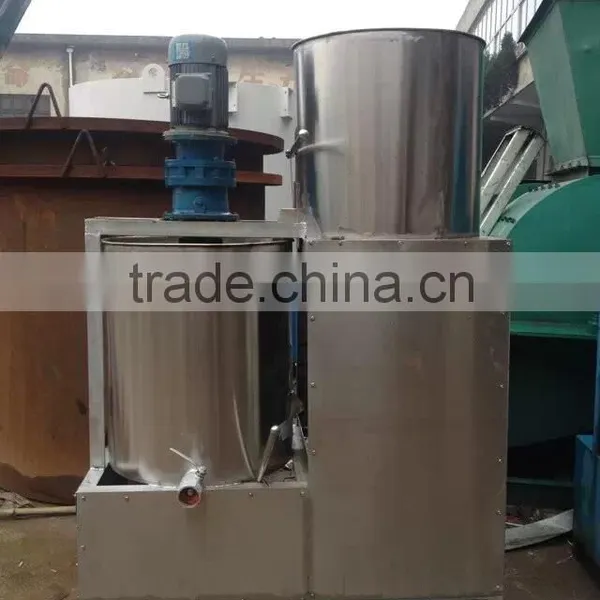

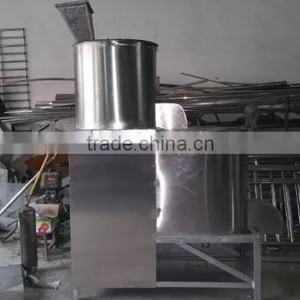

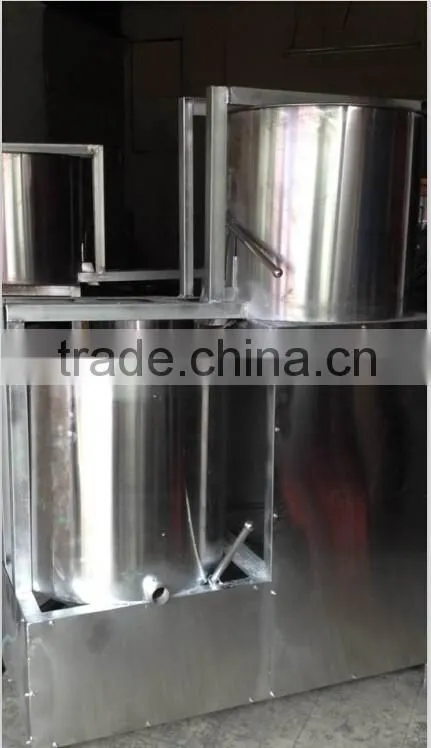

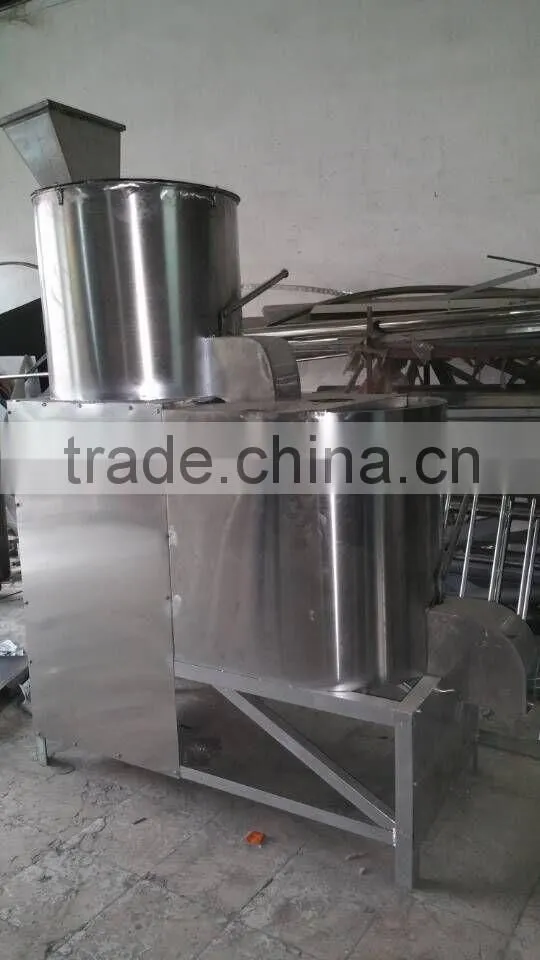

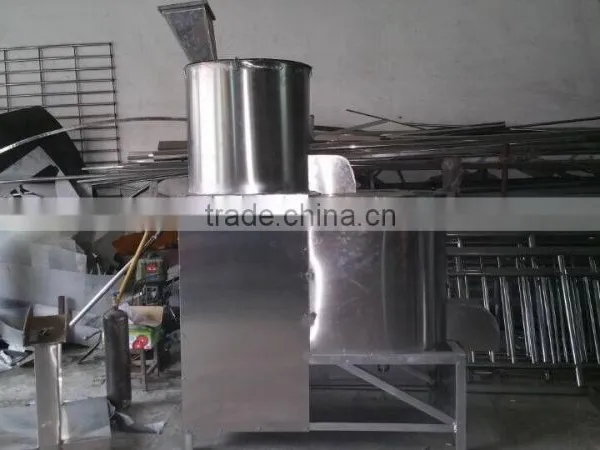

sesame seed peeling machine sesame seed hulling machine
1.Applications
ü Applied for sesame soaking, sesame skin removing, sesame skin and kernel’s separating.
Collect all process together.
2.Mechiney Structure

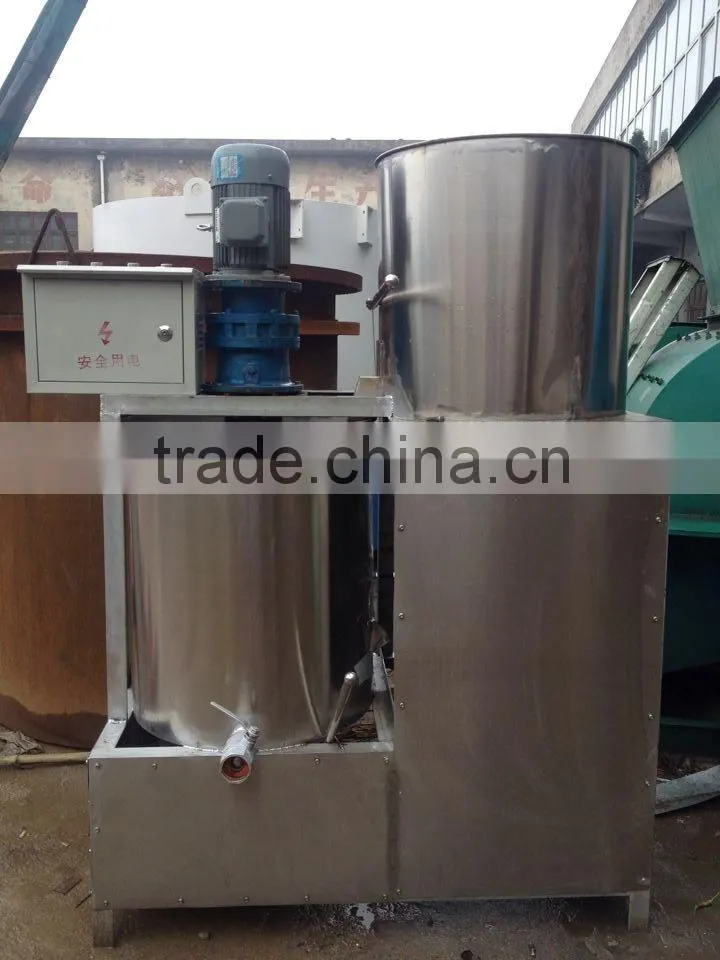

ü Mainly include body, composite stirrer, separator, locator, inlets and outlets, and deceleration gear box,etc.
3.Opporation Process
ü Soaking

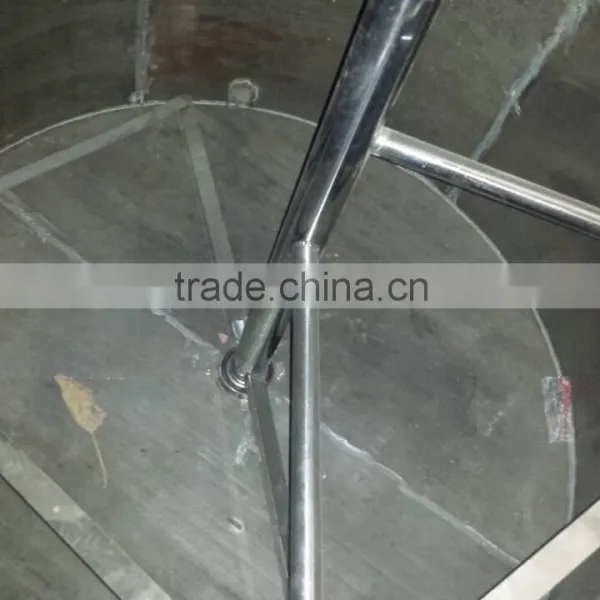

The special stirrer, which is driven by decelerator, puts upward the peripheral sesame seed and the center sesame will continuously move downwards, in this way, the sesame will move up and down, later the sesame soak in water totally.
ü Skin removing
The stirrer driven by decelerator makes the soaked sesame rotating rapidly up and down. The hull will removed from the kernel by the friction between sesames and the rotating force from the stirrer.
ü Skin and Kernel’s Separating
The hull and kernel are pushed continuously by the stirrer driven by decelerator to move in radial and axile directions. The hull is discharged through the holes on the plate, while the kernel is sustained by the plate with holes, and thus they are separated from each other.
4. Characteristics
ü An assembly equipment combining processes of soaking, hull removing, and hull separating from kernel.
ü Easy transport, large output within a short period of time.
ü High hull removing rate ≥98%
ü Vertical displacement, compact structure and large output.
ü Easy to operate and with less maintenance.
5. machines’information
| Model | capacity | power | voltage | dimention |
| PS-36 | 250-300KG/H | 50HZ | 380V | 1700*650*1940 mm |
Packing
a. Machines are wrapped in plastic film first before packing, which is to avoid moisture on the sea.
b.The machines are putted in strong iron sheet case/wooden case which is free of fumigation, lined with metal wire if necessary.
Quality Guarantee Terms
Quality guarantee term is for one year. Malfunctions which are caused by machineself and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.
After-sales Service
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free.
a, Before sending the machine, we will test and adjust, so you can use directly when you get it.
b, Operation video & instruction will be sent to clients, to help them use the machines better.
Additionally, our company provides technical support and fittings for life. After-sales service isn't restricted by time and we will solve your problems in time. If you are caught in some problems when using our products, welcome to contact us at any time.
a, Any problems occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all the year round.
c, 24 hours hot line +86-15515581742.
