Specifications
be used at 0 'c or below for saving eggs and vegetablescompressor power: 80 w
evaporator areas 10 Square meter

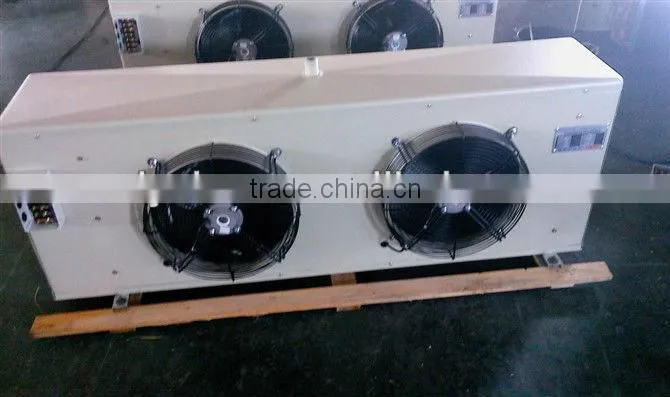

DL-2.1/10 EVAPORATOR AIR COOLER
THIS TYPE: DL-2.1/10 type can be used at 0°C for saving eggs and vegetables , and this type chiller cooling capacity indicates: T library = ±0°C ΔT=T-T0=7°C, library fin space is 4.5 mm.
Technical parameters
| model |
POWER (w) |
CAPACITY Δ T=7 °C (W) |
EVAPORATOR AREAS (M2) |
GW(KG) |
|||
| DL-2.1/10 | 80 | 2100 | 10 | 26 |
|||
|
FAN (380V)(220V) |
MELTS FROST ELECTRIC HEAT PIPE (220v) |
INTO THE LIQUID (MM) |
BACK TO STEAM(MM)
|
||||
|
AIR-VOLUME (m3/h) |
DIAMETER (mm) |
RANGE (M) |
COIL PIPE (KW) |
WATER PAN (KW) |
|||
| 1x2270 | 300 | 8 | 1X0.9 | 0.9 | 12 | 19 | |
Installation dimension
| model | A |
B |
C |
D | |||||
| DL-2.1/10 | 740 | 400 | 460 | 270 |
|||||
1. The housing is in plastic-sprayed coat or rolled, iron plate or aluminum paned, best in corrosion protection, beautiful in shape.
2. Original coil arrangement to reduce the side resistance. The aluminum fins are fastened to the steel tubes by hydraulic expanding way, which is effective to reduce thermal contact resistance and improve thermal transfer.
3. Special fan motor, which is low in power consumption, large in air volume, low in noise, and far in air throw, guarantees good performance in humidity and low tem6. Groove-type channel clip, easy to install.
4. Filled with nitrogen before leaving factory.
5. We can also manufacture according your require.
