double-leafed sliding cold room door with stainless steel
Specifications of double-leafed sliding cold room door
1.PU sandwich panel double-leafed sliding cold room door
2.Good heat preservation performance
3.Thickness:100m/150mm
4. classification: manual door, swing door,sliding door,hinged door or other types according to your requirements.
5.Easy to install.
Basic Structure of double-leafed sliding cold room door
double-leafed sliding cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints. Cam-lock design fastener to install with the cold room tightly and strongly
Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result
product feature |
standard configuration |
options |
door leaf |
RAL9010 color steel panel |
green yellow red blue color steel or SS 304 |
door edge |
aluminum alloy |
stainless steel |
lead rail |
aluminum alloy |
stainless steel |
door frame |
plastic wood |
PVC |
door sill |
/ |
/ |
door lock |
/ |
ART. 94 |
double door |
/ |
can be provided |
electric system |
/ |
full set of MTH automatic system |
porthole |
/ |
can be provided |
double leafed sliding cold room door or common sliding cold room door size :
Door thickness |
75mm,100mm,150mm |
|
Name |
width (mm) |
height (mm) |
Sliding door |
900 |
1800 |
1200 |
2000 |
|
1500 |
2200 |
|
1800 |
2400 |
|
2600 |
2800 |
|
1800 |
2500 |
|
3000 |
3000 |
|
Specification of double-leafed sliding cold room door
cold room door material |
100% polyurethane foaming material BASF |
cold room door density |
43kg/m |
Thickness opional |
75mm,100mm,150mm |
Steel plate optional |
painted galvanized steel, stucco embossed aluminum,stainless steel |
Door type optional |
flush door,convex hinged door,electric / manual sliding door , glass door , swing door |

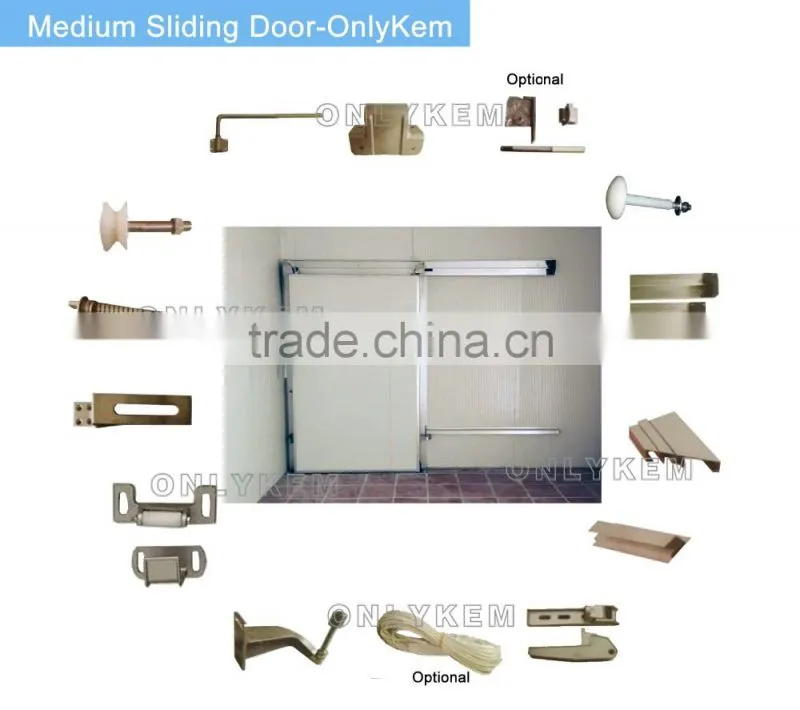

Accessories of double-leafed sliding cold room door
double-leafed sliding cold room door process

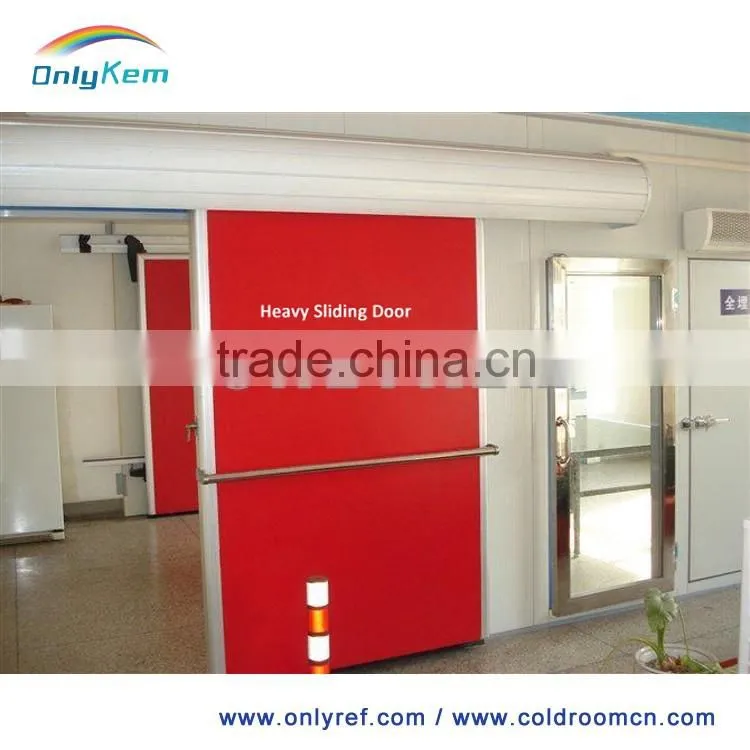

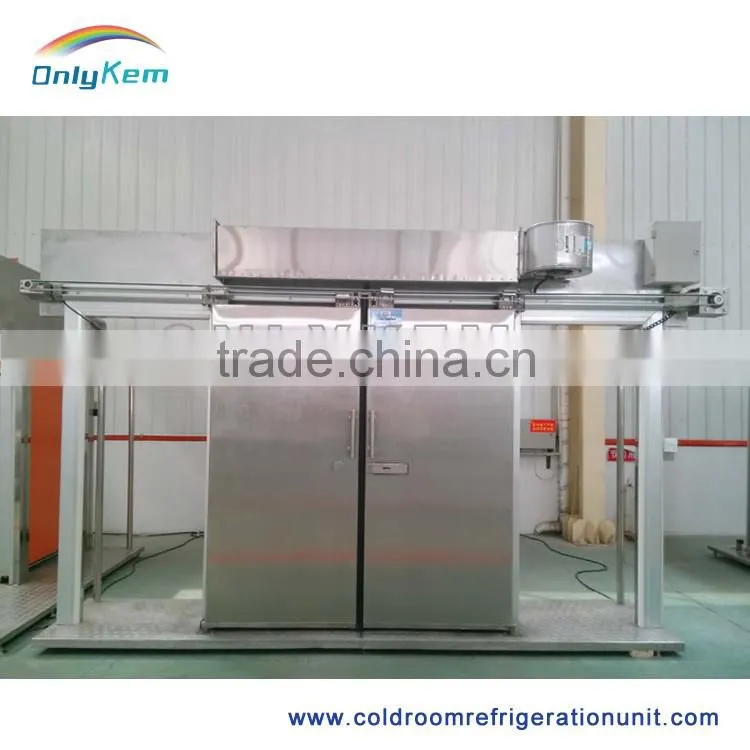

samples of our sliding cold room door

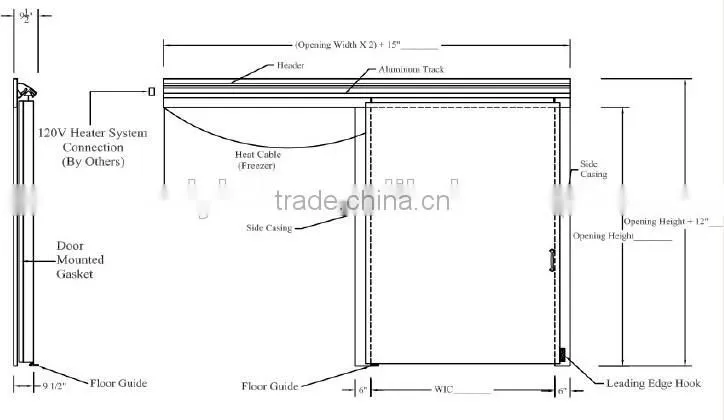

Sliding cold room door installation

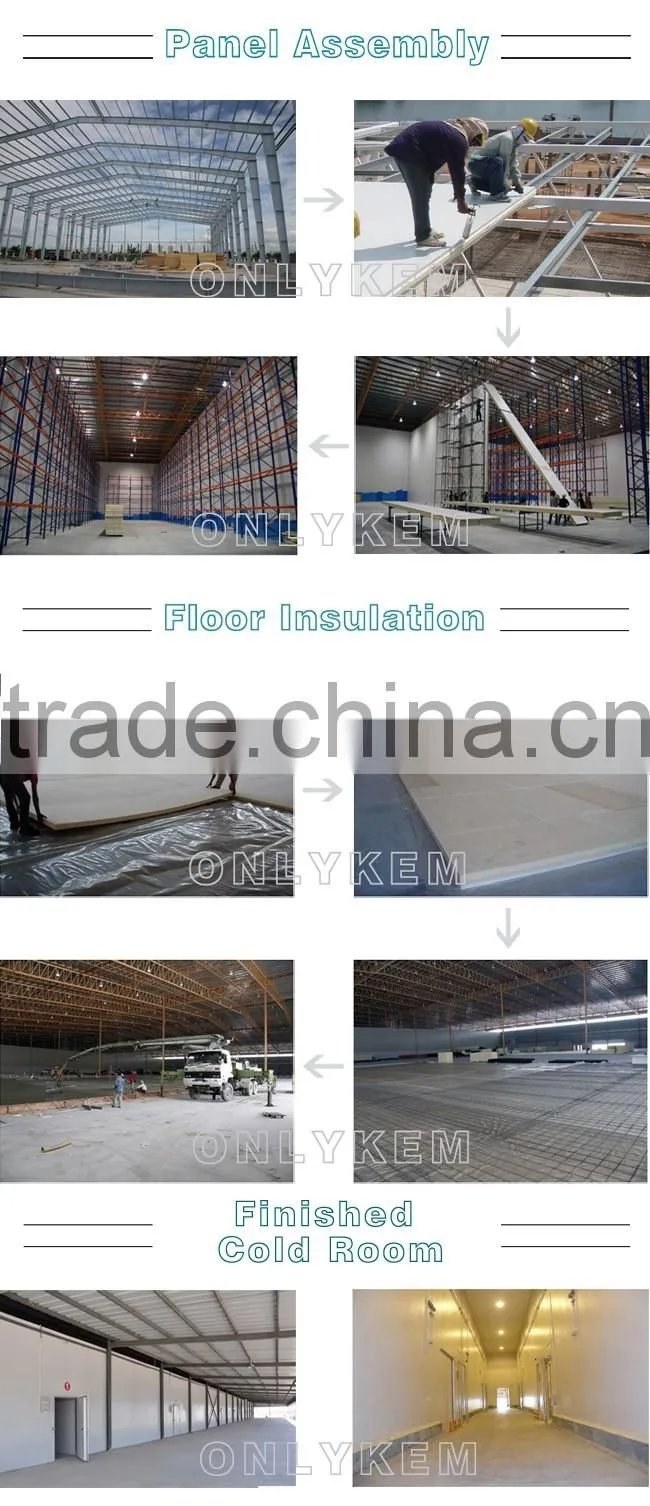

Cold room finished projects

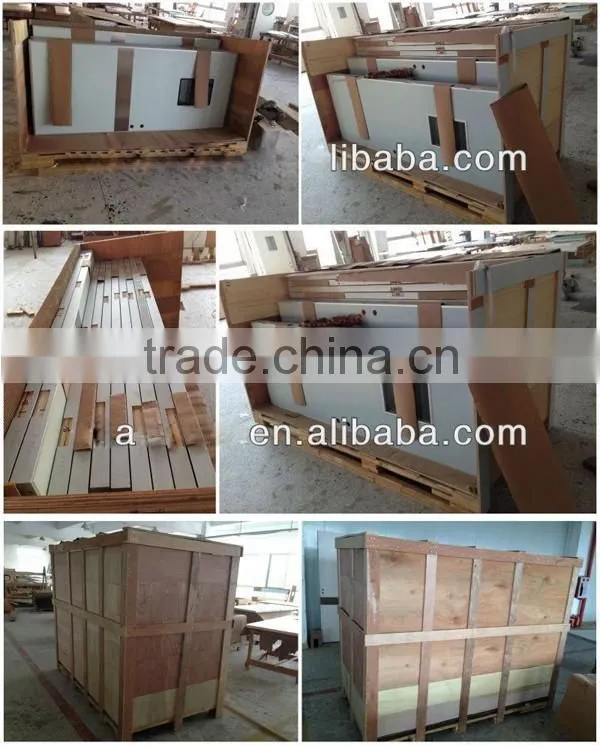

Sliding cold room door Package with foam paper or wooden case just like the picture

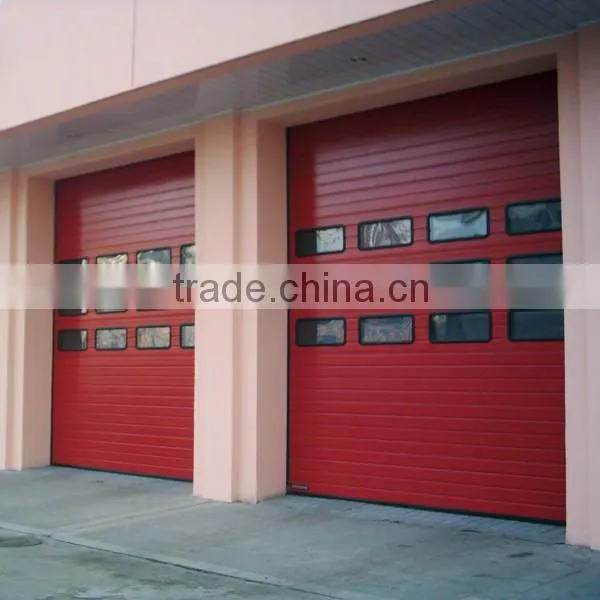

Other Kinds of cold room door
Our sliding door are have fire retardant. We can also manufacture other kinds of cold room door according to your requirements.
