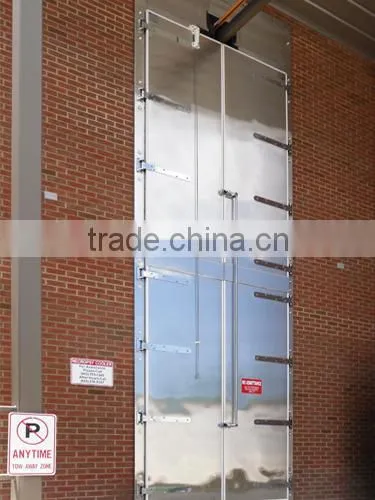

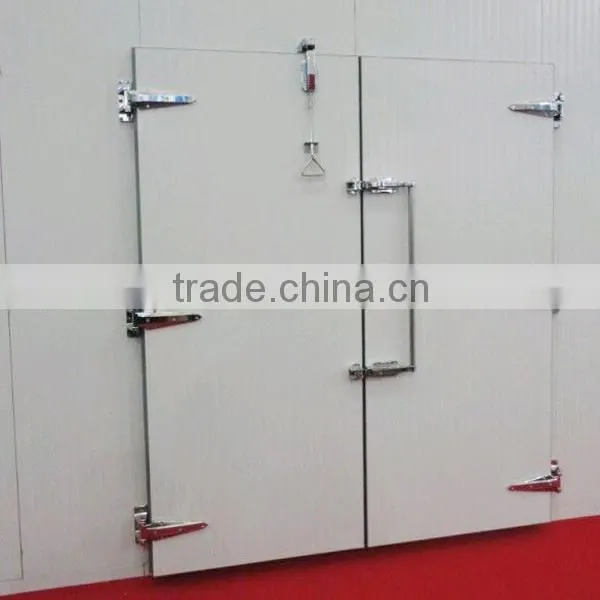

stainless steel cold room swing door with double leaves
Specifications
Door material: galvanized steel sheet; optional aluminum sheet or stainless steel sheet
Finish: powder coated, color to be defined; optional matt finish stainless steel
Door thick: 40mm
Door core: injected high density polyurethane
Door handle: stainless steel handle
Door frame material: coated steel
Window: aluminum frame , double layer laminated glass
Clear opening: 1400mmx2100mm, 1500mmx2100mm, 1600mmx2100mm etc.
Power : AC 220V, 50HZ
Sensors: radar sensor, hand sensor or foot sensor etc.
Package: wooden boxes
Basic Structure
Cold room door panels are joined together by means of tongue and groove and locked together by camlock on each side of the panel to ensure air tight joints. * Cam-lock design fastener to install with the cold room tightly and strongly
* Silica gel are used on the cold room door panel edge of the joint parts of each sandwich panel to ensure perfect sealing to avoid the cooling air leakage from the cool roomor moisture inside the PU insulated panel for the best refrigeration and frozen storage result
product feature |
standard configuration |
options |
door leaf |
RAL9010 color steel panel |
green yellow red blue color steel or SS 304 |
door edge |
aluminum alloy |
stainless steel |
lead rail |
aluminum alloy |
stainless steel |
door frame |
plastic wood |
PVC |
door sill |
/ |
/ |
door lock |
/ |
ART. 94 |
double door |
/ |
can be provided |
electric system |
/ |
full set of MTH automatic system |
porthole |
/ |
can be provided |
Specification for swing door
door type |
manual swing |
size |
1600x2100mm |
door cover material |
steel painted/HPL |
door plate thickness |
1.0mm |
door frame material |
aluminum |
vision window |
single glazing with aluminum or double glazing |
door leaf weight |
30-35kg |
packing |
wooden case |

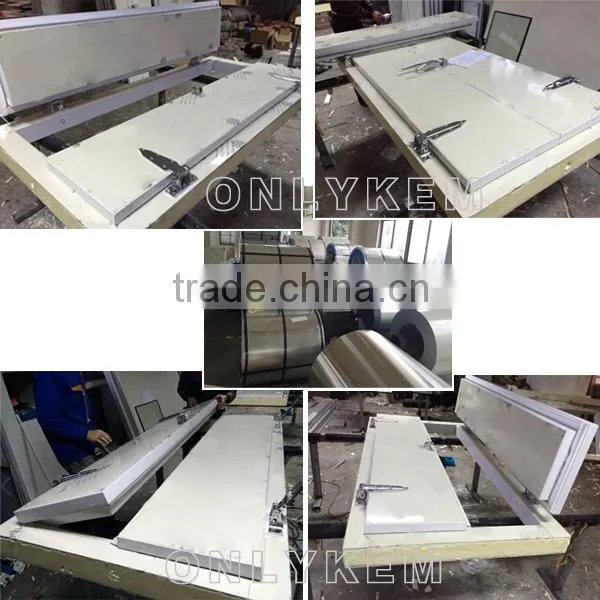

Cold room swing door process

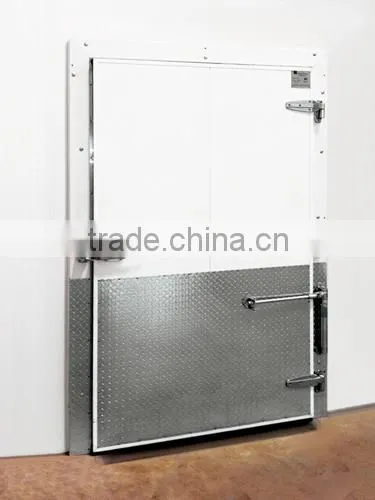

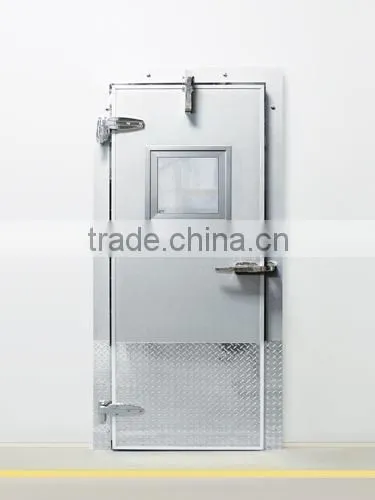

samples of our swing door

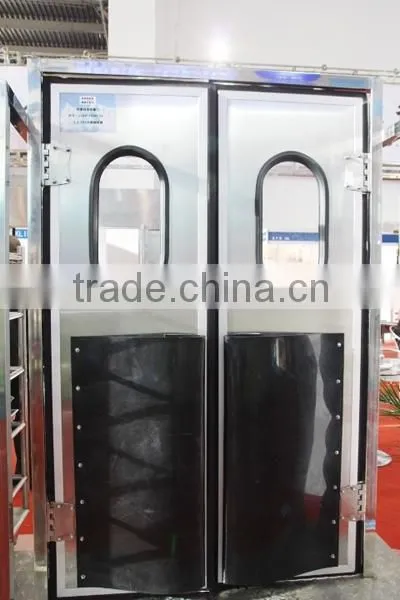

Swing door(single swing and double swing door)

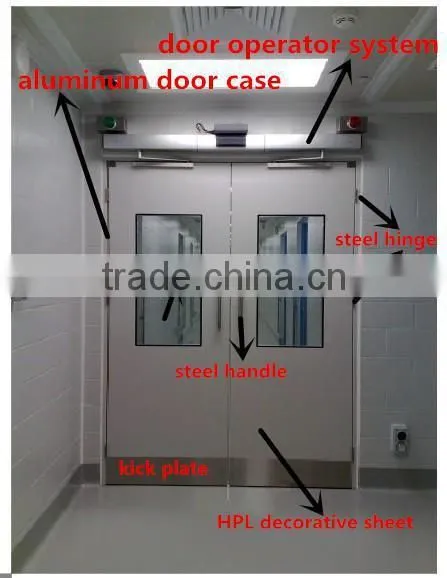

Double open hinged door with two lock

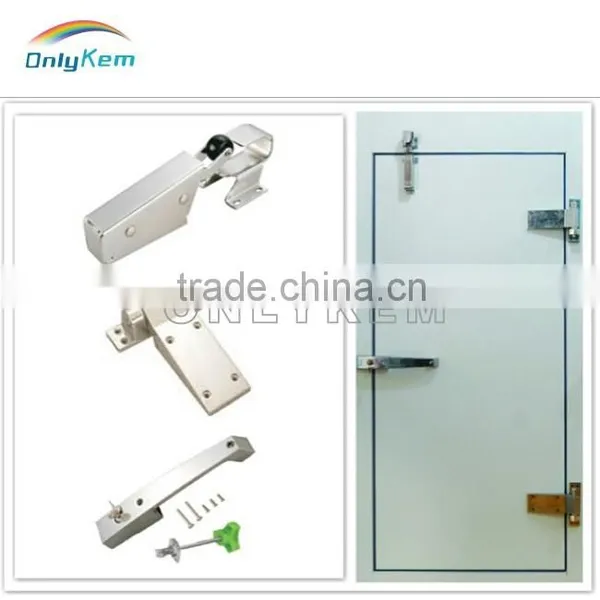

Accessories
Cold room finished projects
swing door Package
Our sliding door are have fire retardant. We can also manufacture other kinds of cold room door according to your requirements.
Other kinds of door
