Trimming Potentiometer 3323 10ohm-5Mohm

Name: Trimming Potentiometer 3323 10ohm-5Mohm
Brand: Bonens
SKU: 101974461

US$ 0.01 - 1.5 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

3323

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number 3323

Type Other, Trimming Potentiometer, 3323P

Resistance 10Ω~5MΩ

Resistance Tolerance ±10%,±5%

Rated Power 0.5W

Max. Operating Voltage 300V

Operating Temperature -55℃~+125℃

Specifications

1.3323P Trimming potentiometer,single-turn 2.ROHS
3.Good quantity,Best price
4.In stock,fast delivery
5. Welcomes The Trial

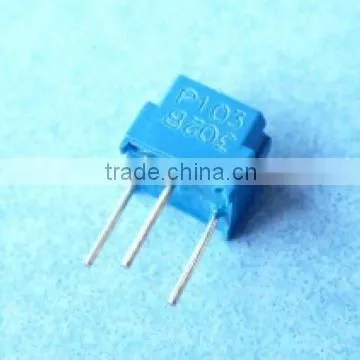

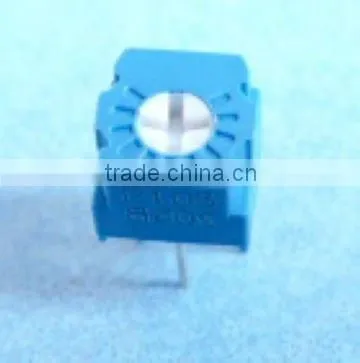

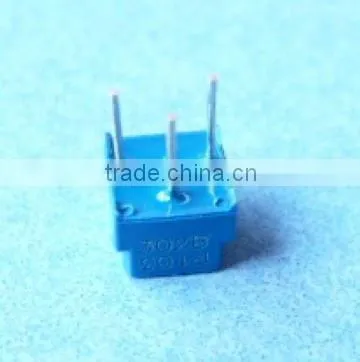

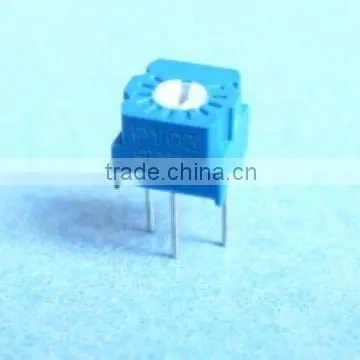

3323P Trimming potentiometer

Electrical Characteristics	Range of nominal resistance	10Ω~5MΩ
	Resistance tolerance	±10%
	Terminal resistance	≤±1%R or 2Ω
	Contact resistance variation (CRV)	≤±1%R or 3Ω
	Insulation resistance	≥ 1GΩ (100V AC)
	Withstand voltage	500V (DC or AC peak value)
	Effective electrical travel	≥200°

Environment Characteristics	Rated power	0.5W ( 300V max)
	Temperature range	-55°C~+125°C
	TCR	±250×10-6/°C
	Collision (390m/S2, 4000 times)	ΔR≤±1%R
	Vibration (10-500HZ, 0.75mm, 6h)	ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
	Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)	ΔR≤±2%R, ΔUab/Uac≤±2%R
	Climate category (IEC68-2-2)	ΔR≤± (5%R+0.1Ω),Insulation Resistance ≥100MΩ
	Electrical endurance (0.5W, 1000h)	ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
	Mechanical endurance (200 cycles)	ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
	Steady damp heat (IEC68-2-3, Ca, 96h)	ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ

Physical Characteristics	Total mechanical travel	270°±10°
	Starting torque	≤20mN.m
	Stoper torque	≥50mN.m
	Standard package	50 pcs /tube
