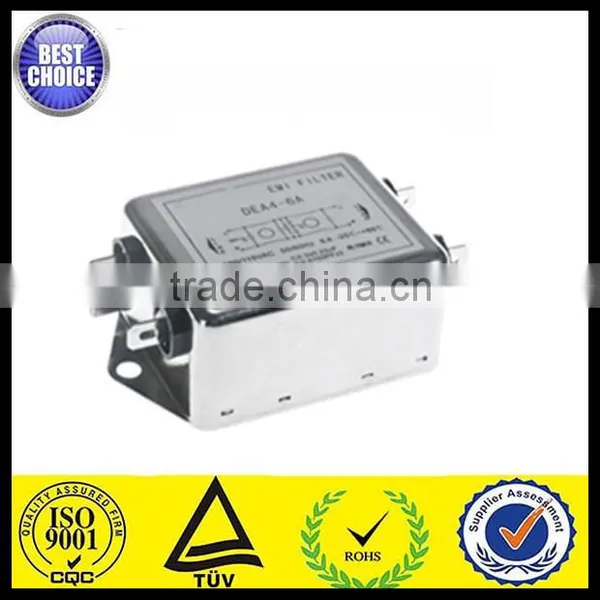

Help CenterDEA4-6A Emi Power Line Filter
Related Products
-
DEA4 20A Emi Noise Line FilterUS$ 1.1 - 100MOQ: 100 Pieces -
DEA Series 15A ac Line Filter ac Noise FiltersUS$ 1.1 - 100MOQ: 100 Pieces
-
DEA Series 10A Noise Filter for Electronic Measuring InstrumentsUS$ 1.1 - 100MOQ: 100 Pieces
-
Small Electronic Devices 6A Noise FilterUS$ 1.1 - 100MOQ: 100 Pieces
-
10A Outlet Noise Filter Noise FilterUS$ 1.1 - 100MOQ: 100 Pieces
Specifications
1,IEC standard plug filter;2,Small size and high value
3,For small electronic devices and electronic measuring instruments;
1. Single-phase AC power supply filter
characteristics and application |
1. the safety and reliablity; |
2 .excellent differential mode and mode interference suppression ability; |
3. wide current range:0.5A - 100A; |
4 .ease of use and umber of optional connection mode; |
5. be suitable for switching power supply, UPS power, instrumentation and electronic equipment under 220V AC |
Basic technical parameters |
Rated current : 0.5A - 100A; |
Rated voltage:0-250 V, (50 hz AC) |
Leak electricity flow: working current: Less than 25A ≤0.5 mA;More than 25 A be equal or greater than 1 mA |
Insert Loss:be equal or greater than 30dB (1∼30MHz) |
Insulation voltage: 2300V (AC line to ground, 1 minute) |
1500V (DC, line for line, 1 minute) |
Insulation resistance :be greater than 50MΩ ( 500VDC, 1minute) |
Environment temperature :- 25°C~ + 85 °C |
Constant damp heat : 40 °C /93% |
2. Three-phase AC power supply filter
characteristics and application |
1. the safety and reliablity; |
2 .excellent differential mode and mode interference suppression ability; |
3. wide current range:0.5A - 100A; |
4 .ease of use and umber of optional connection mode; |
5. be suitable for switching power supply, UPS power, instrumentation and electronic equipment under 380V AC |
|
Basic technical parameters |
Rated current : 1A - 100A; |
Rated voltage:0-400 V, (50 HZ AC) |
Leak electricity flow: working current: Less than 25A ≤0.5 mA;More than 25 A be equal or greater than 1 mA |
Insert Loss:be equal or greater than 30dB (1∼30MHz) |
Insulation voltage: 2500V (AC line to ground, 1 minute) |
1500V (DC, line for line, 1 minute) |
Insulation resistance :be greater than 50MΩ ( 500VDC, 1minute) |
Environment temperature :- 25°C~ + 85 °C |
Constant damp heat : 40 °C /93% |
3.Circuit

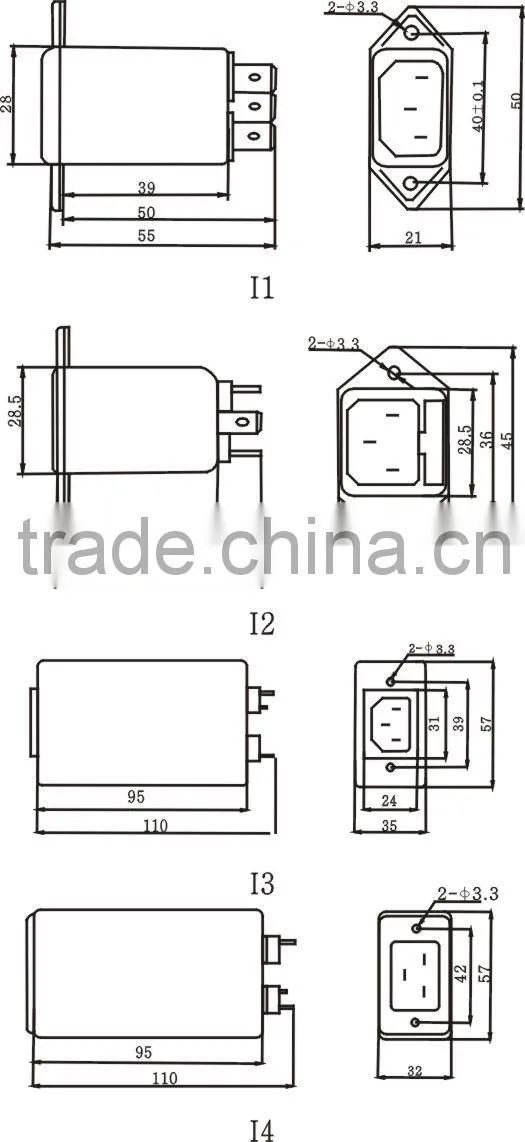

4.Overall Structure

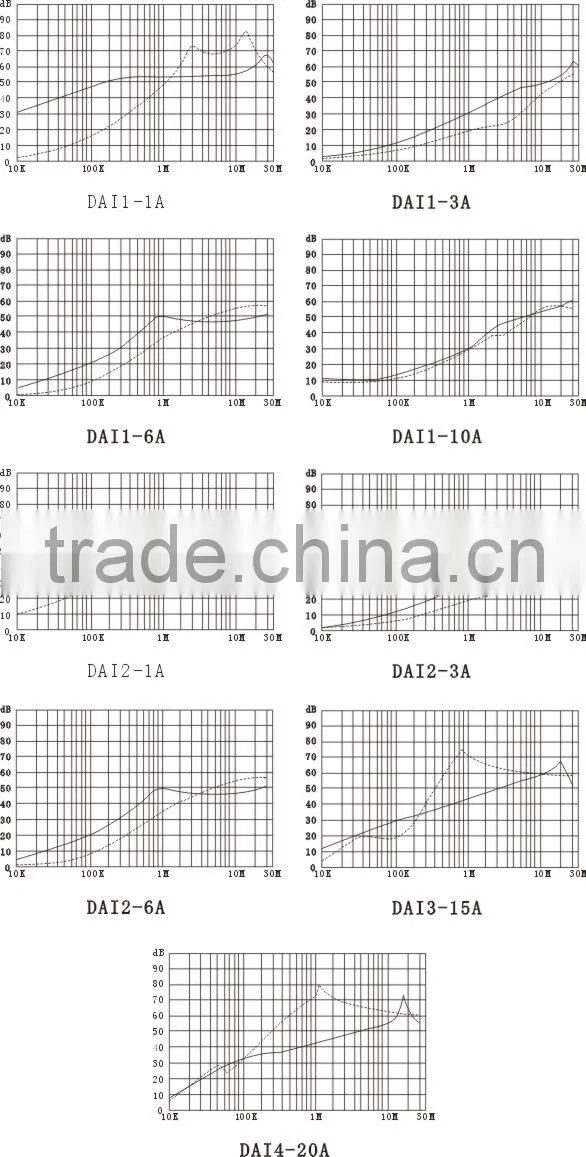

4.Insertion Loss
In order to meet customers special requirements, our company also generate DC and other non-standard design and production of power supply filter.
